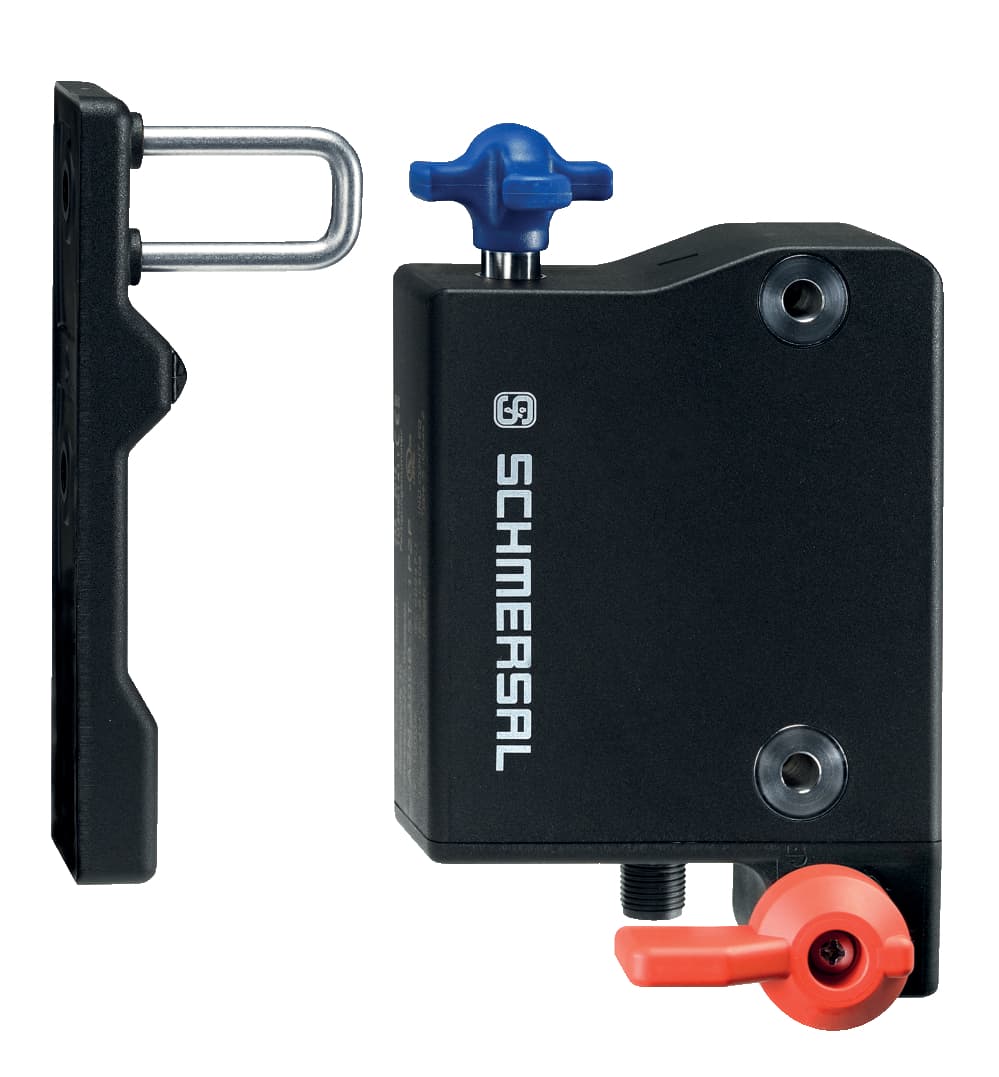

AZM300B-I2-ST-1P2P Schmersal Safety Switches

Product Details

• Test pulse duration, maximum
  0.5 ms
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Voltage drop Ud, maximum
  4 V
• Classification ZVEI CB24I, Sink
  C1, C2
• Duty cycle solenoid
  100 %
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
• Operating voltage, minimum
  20.4 VDC
• Degree of pollution to IEC/EN 60664-1
  3
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• Note (Relative humidity)
  non-condensing, non-icing
• Test pulse interval, typical
  1000 ms
• Voltage, Utilisation category DC12
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Current leakage Ir
  0.5 mA
• Versions
  short-circuit proof, p-type
• Classification ZVEI CB24I, Source
  C2
• Test pulse interval, minimum
  100 ms
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Current consumption at 24V
  5 mA
Switching frequency, maximum
0.5 Hz
External wiring and device fuse rating
2 A gG
Required rated short-circuit current to EN 60947-5-1
100 A
No-load supply current I0
100 mA
Current consumption with solenoid ON, average
200 mA
Operating voltage, maximum
26.4 VDC
Notes (Power supply, general)
stabilised PELV power supply
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Restistance to shock
30 g / 11 ms
Relative humidity, maximum
93 %
Storage and transport temperature, minimum
-10 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Storage and transport temperature, maximum
+90 °C
Ambient temperature, maximum
+60 °C
Height of sensor
35 mm
Length of sensor
120 mm
Width of sensor
87.5 mm
Ambient temperature, minimum
+0 °C
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Terminal Connector
Connector M12, 8-pole, A-coded
Ensured switch distance ON Sao
1 mm
Type of the fixing screws
2x M6
Switch distance
2 mm
Tightening torque for the fixing screws, maximum
7 Nm
Tightening torque of the fixing screws, minimum
6 Nm
Ensured switch distance OFF Sar
20 mm
Latching force, adjustable, position 2
50 N
Angular offset between interlocking device and actuator, maximum
2 °
Clamping force, maximum Fmax
1,500 N
Latching force, adjustable, position 1
25 N
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Clamping force in accordance with ISO14119 Fzh
1,150 N
Number of fail-safe digital outputs
2
Mechanical life, minimum
1,000,000 Operations
Safety functions
Yes
Integral System Diagnostics, status
Yes
Series-wiring
Yes
Duration of risk, maximum
200 ms
Short-circuit recognition
Yes
Latching
Yes
Short circuit detection
Yes
Manual release
Yes
Actuator monitored
Yes
Power to unlock
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Frequency band RFID
125 kHz
Time to readiness, maximum
5,000 ms
Coding level according to ISO 14119
High
Transmit power, maximum
-6 dB/m
Active principle
RFID
general information
Individual coding, multiple teaching
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
Gross weight
550 g
