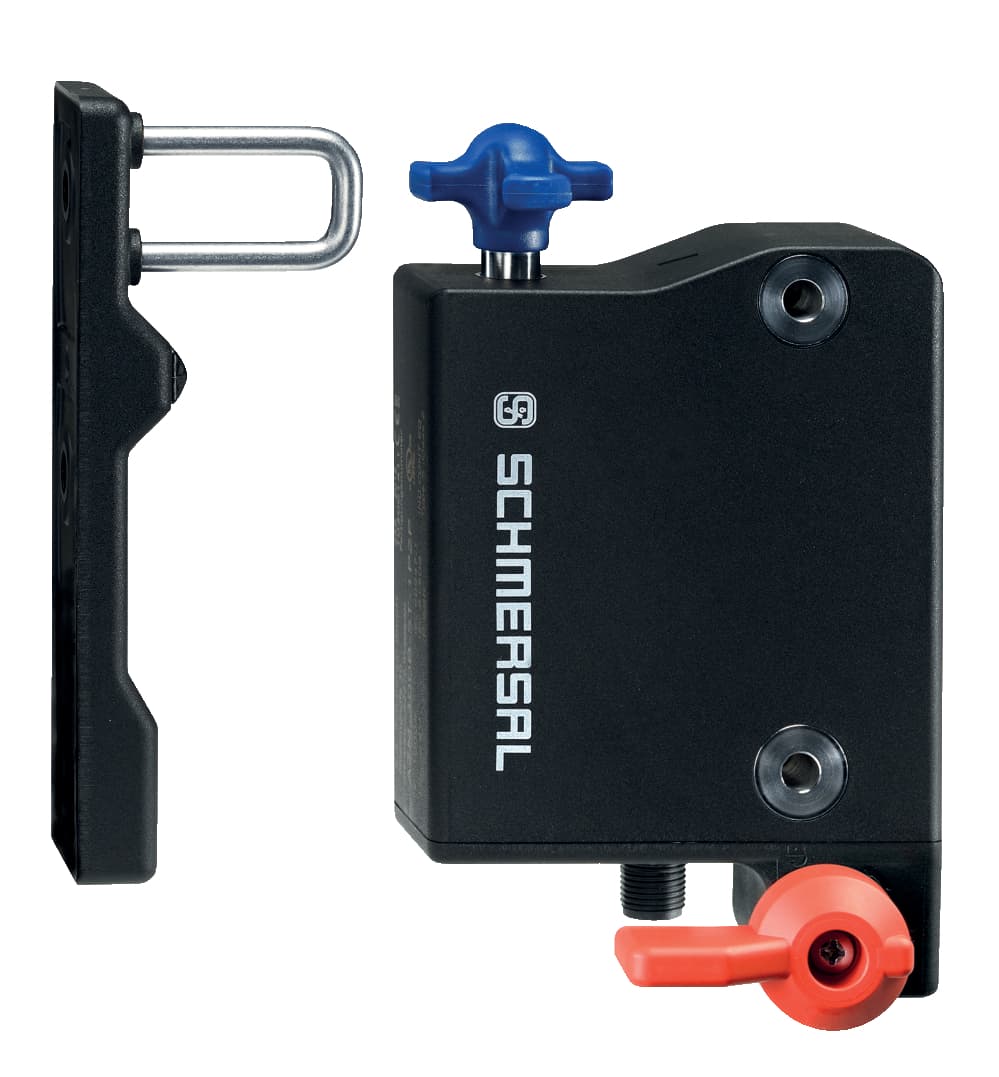

AZM300Z-I2-ST-1P2P-N Schmersal Safety Switches

Product Details

• Latching force, adjustable, position 1
  25 N
• Note (Mechanical lifetime)
  When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
• Clamping force in accordance with ISO14119 Fzh
  1,150 N
• Clamping force, maximum Fmax
  1,500 N
• Angular offset between interlocking device and actuator, maximum
  2 °
• Transmit power, maximum
  -6 dB/m
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Short-circuit recognition
  Yes
• Coding level according to ISO 14119
  High
• Safety functions
  Yes
• Mechanical life, minimum
  1,000,000 Operations
• Integral System Diagnostics, status
  Yes
• Number of fail-safe digital outputs
  2
• Series-wiring
  Yes
• Short circuit detection
  Yes
• Emergency release
  Yes
• Latching
  Yes
• Standards
  IEC 61508, IEC 60947-5-3, EN ISO 13849-1
• general information
  Individual coding, multiple teaching
• Guard locking monitored
  Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Voltage, Utilisation category DC13
24 VDC
Current, Utilisation category DC12
0.05 A
Current, Utilisation category DC13
0.05 A
Test pulse interval, typical
1000 ms
Voltage, Utilisation category DC12
24 VDC
Voltage drop Ud, maximum
4 V
Current leakage Ir
0.5 mA
Versions
short-circuit proof, p-type
Classification ZVEI CB24I, Sink
C1, C2
Test pulse interval, minimum
40 ms
Classification ZVEI CB24I, Source
C2
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Current consumption at 24V
5 mA
Test pulse duration, maximum
0.5 ms
Switching frequency, maximum
0.5 Hz
Duty cycle solenoid
100 %
External wiring and device fuse rating
2 A gG
Operating voltage, maximum
26.4 VDC
Current consumption with solenoid ON, peak
350 mA / 200 ms
Notes (Power supply, general)
stabilised PELV power supply
Required rated short-circuit current to EN 60947-5-1
100 A
Current consumption with solenoid ON, average
200 mA
No-load supply current I0
100 mA
Operating voltage, minimum
20.4 VDC
Degree of pollution to IEC/EN 60664-1
3
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Rated insulation voltage Ui
32 VDC
Note (Relative humidity)
non-condensing, non-icing
Protection rating
III
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Relative humidity, maximum
93 %
Storage and transport temperature, maximum
+90 °C
Ambient temperature, maximum
+60 °C
Storage and transport temperature, minimum
-10 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Height of sensor
55 mm
Ambient temperature, minimum
+0 °C
Width of sensor
87.5 mm
Length of sensor
146 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Terminal Connector
Connector M12, 8-pole, A-coded
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Ensured switch distance OFF Sar
20 mm
Switch distance
2 mm
Ensured switch distance ON Sao
1 mm
Tightening torque of the fixing screws, minimum
6 Nm
Latching force, adjustable, position 2
50 N
Tightening torque for the fixing screws, maximum
7 Nm
Type of the fixing screws
2x M6
Power to unlock
Yes
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Duration of risk, maximum
200 ms
Gross weight
610 g
Time to readiness, maximum
5,000 ms
Active principle
RFID
Frequency band RFID
125 kHz
