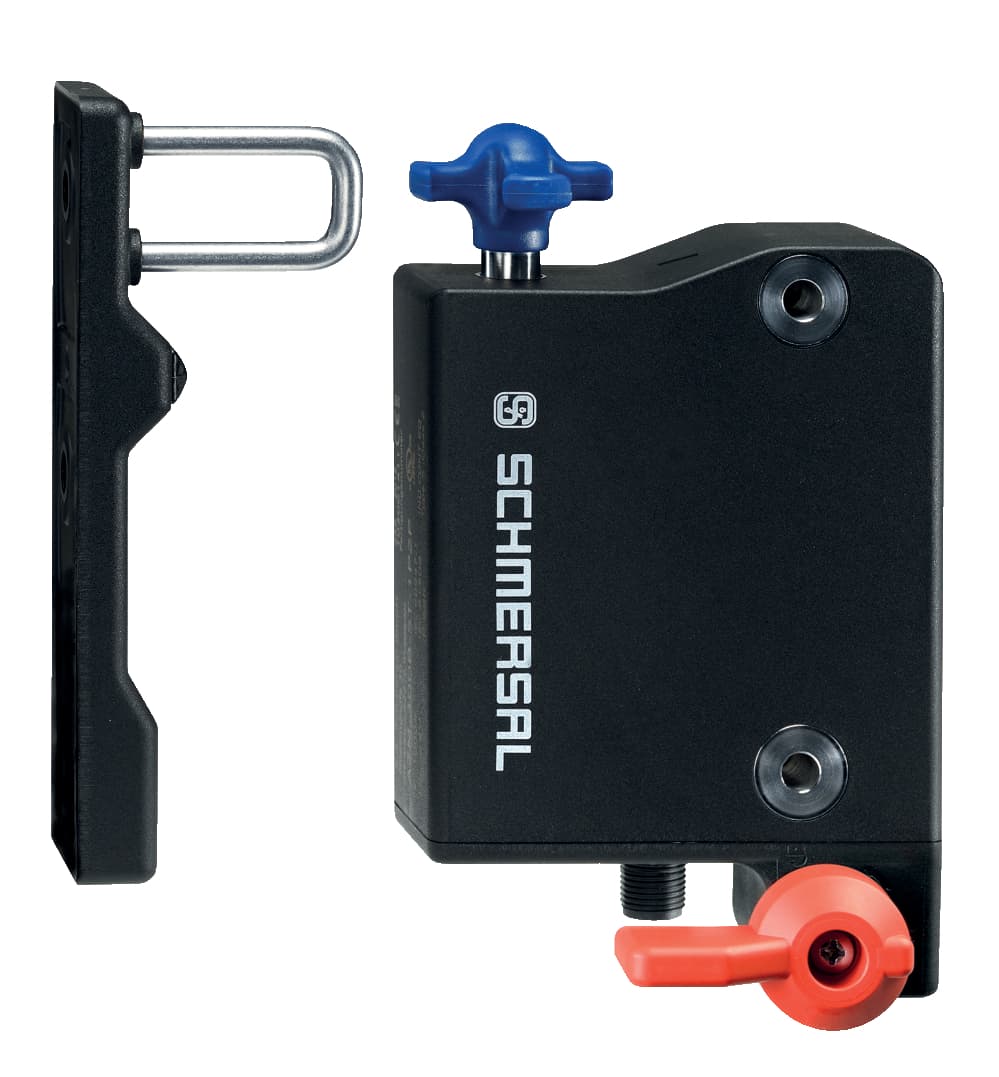

AZM300Z-ST-SD2P-T Schmersal Safety Switches

Product Details

• Wiring capacity
  50 nF
• Classification ZVEI CB24I, Sink
  C1, C2
• Test pulse duration, maximum
  5 ms
• Voltage, Utilisation category DC12
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Operation current
  150 mA
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Test pulse interval, typical
  1000 ms
• Versions
  short-circuit proof, p-type
• Voltage drop Ud, maximum
  4 V
• Current leakage Ir
  0.5 mA
• Current consumption at 24V
  5 mA
• Classification ZVEI CB24I, Source
  C2
• Duty cycle solenoid
  100 %
• Test pulse interval, minimum
  100 ms
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Switching frequency, maximum
  0.5 Hz
• External wiring and device fuse rating
  2 A gG
• Required rated short-circuit current to EN 60947-5-1
  100 A
Current consumption with solenoid ON, average
200 mA
Current consumption with solenoid ON, peak
350 mA / 200 ms
Notes (Power supply, general)
stabilised PELV power supply
No-load supply current I0
100 mA
Operating voltage, minimum
20.4 VDC
Operating voltage, maximum
26.4 VDC
Overvoltage category
III
Degree of pollution to IEC/EN 60664-1
3
Rated impulse withstand voltage Uimp
0.8 kV
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Rated insulation voltage Ui
32 VDC
Protection rating
III
Restistance to shock
30 g / 11 ms
Relative humidity, maximum
93 %
Note (Relative humidity)
non-condensing, non-icing
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Storage and transport temperature, maximum
+90 °C
Storage and transport temperature, minimum
-10 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
+0 °C
Length of sensor
146 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Height of sensor
55 mm
Width of sensor
87.5 mm
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Terminal Connector
Connector M12, 8-pole, A-coded
Length of sensor chain, maximum
200 m
Tightening torque of the fixing screws, minimum
6 Nm
Ensured switch distance OFF Sar
20 mm
Ensured switch distance ON Sao
1 mm
Tightening torque for the fixing screws, maximum
7 Nm
Type of the fixing screws
2x M6
Switch distance
2 mm
Latching force, adjustable, position 2
50 N
Clamping force, maximum Fmax
1,500 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Latching force, adjustable, position 1
25 N
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Number of fail-safe digital outputs
2
Short circuit detection
Yes
Angular offset between interlocking device and actuator, maximum
2 °
Integral System Diagnostics, status
Yes
Series-wiring
Yes
Mechanical life, minimum
1,000,000 Operations
Short-circuit recognition
Yes
Safety functions
Yes
Latching
Yes
Emergency exit
Yes
Power to unlock
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Serial diagnostics
Yes
Guard locking monitored
Yes
Active principle
RFID
Transmit power, maximum
-6 dB/m
Duration of risk, maximum
200 ms
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Time to readiness, maximum
5,000 ms
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
Gross weight
650 g
Frequency band RFID
125 kHz
general information
Universal coding
Coding level according to ISO 14119
Low
