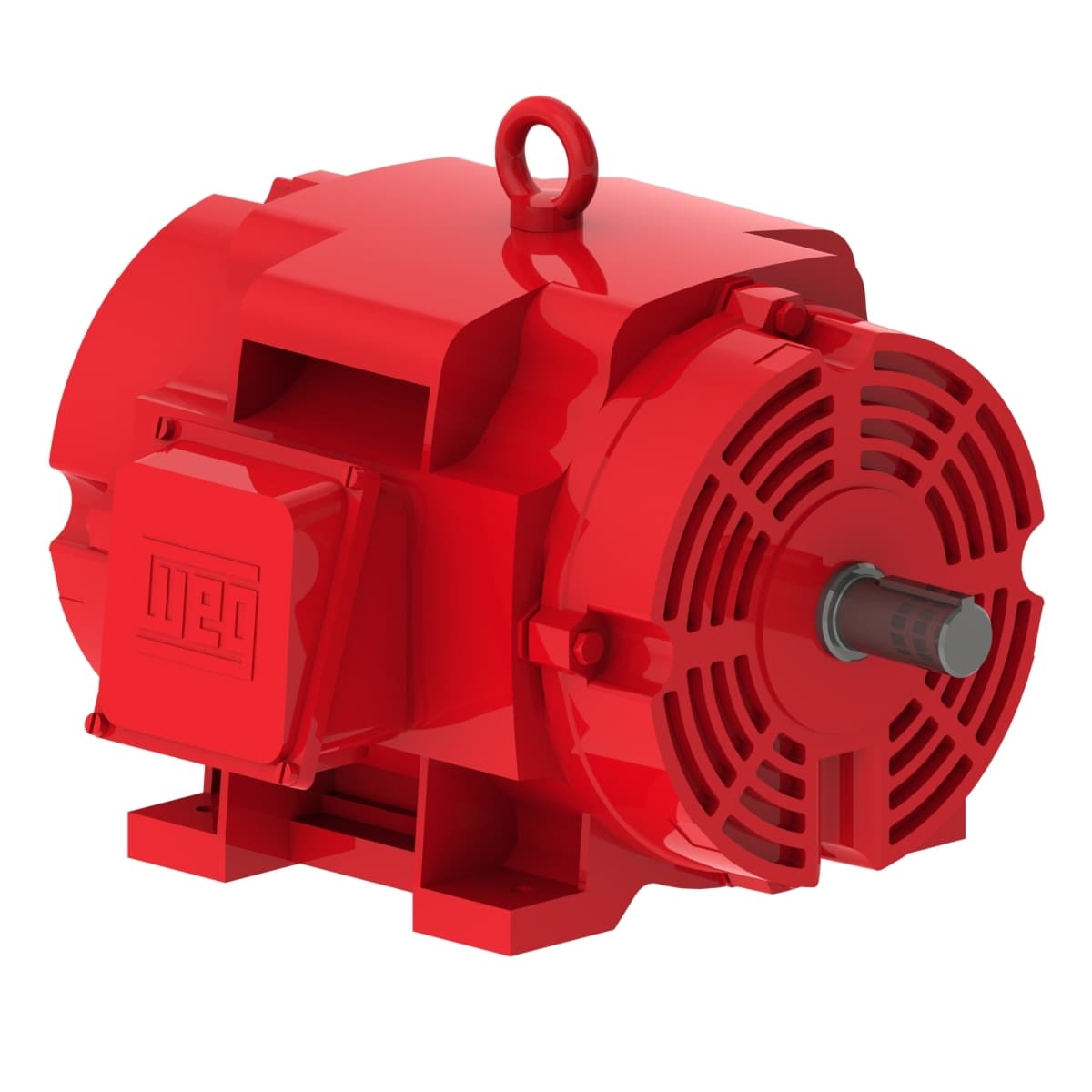

03036OP3HFP284TS WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 575 V
- Output Rating 30 HP
- Rated Speed 3540 rpm
- Flange Type Without
- Terminal box¹ Left position
- Flange Without
- Output rating 30 HP
- Voltage 575 V
- Number of poles 2
- Synchronous speed 3600 rpm
- Mounting F-1
- Approx. weight³ 311 lb
- Rotation¹ Both (CW and CCW)
- Noise level² 72.0 dB(A)
- Standard NEMA MG-1
- Enclosure IC01 - ODP
- Degree of Protection IP23
- Altitude 1000 m.a.s.l.
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Service factor 1.15
- Insulation Class F
- Breakdown torque 270 %
- LRC 6.2x(Code G)
- Rated torque 44.5 ft.lb
- Design B
- Moment of inertia (J) 1.68 sq.ft.lb
- Locked rotor time 21s (cold) 12s (hot)
- No load current 7.28 A
- Locked rotor torque 200 %
- Output 30 HP (22 kW)
- Rated current 27.6 A
- L. R. Amperes 171 A
- Rated speed 3540 rpm
- Frequency 60 Hz
- Slip 1.67 %
- Number of Poles 2
- Rated voltage 575 V
- Frame 284TS
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
