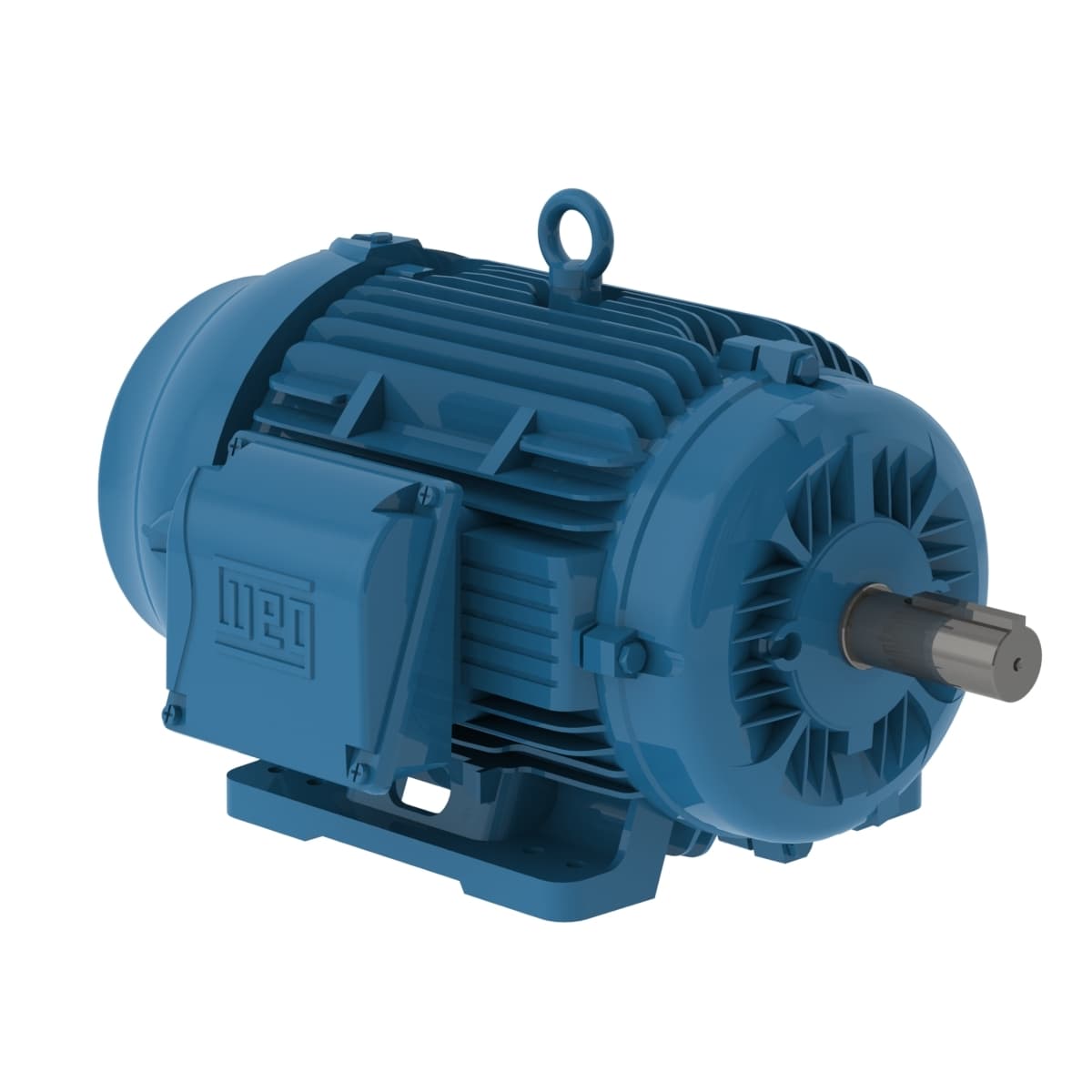

03036ET3H286TS-W22G WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  575 V
• Output Rating
  30 HP
• Rated Speed
  3545 rpm
• Flange Type
  Without
• Enclosure
  IC411 - TEFC
• Flange
  Without
• Service factor
  1.25
• Terminal box¹
  Left position
• Mounting
  F-1
• Output rating
  30 HP
• Degree of Protection
  IP55
• Number of poles
  2
• Voltage
  575 V
• Standard
  NEMA MG-1
• Noise level²
  72.0 dB(A)
• Synchronous speed
  3600 rpm
• Rotation¹
  Both (CW and CCW)
• Moment of inertia (J)
  3.37 sq.ft.lb
• LRC
  6.3x(Code G)
Starting Method
Direct On Line
Altitude
1000 m.a.s.l.
Duty Cycle
Cont.(S1)
Rated torque
44.4 ft.lb
Locked rotor time
27s (cold) 15s (hot)
No load current
7.28 A
Rated voltage
575 V
Rated current
27.4 A
Frequency
60 Hz
Rated speed
3545 rpm
Slip
1.53 %
Frame
284/6TS
Approx. weight³
392 lb
Ambient temperature
-20°C to +40°C
Temperature rise
80 K
Locked rotor torque
200 %
Insulation Class
F
Design
B
Breakdown torque
250 %
L. R. Amperes
172 A
Number of Poles
2
Output
30 HP (22 kW)

03036ET3H286TS-W22G Related Documents
