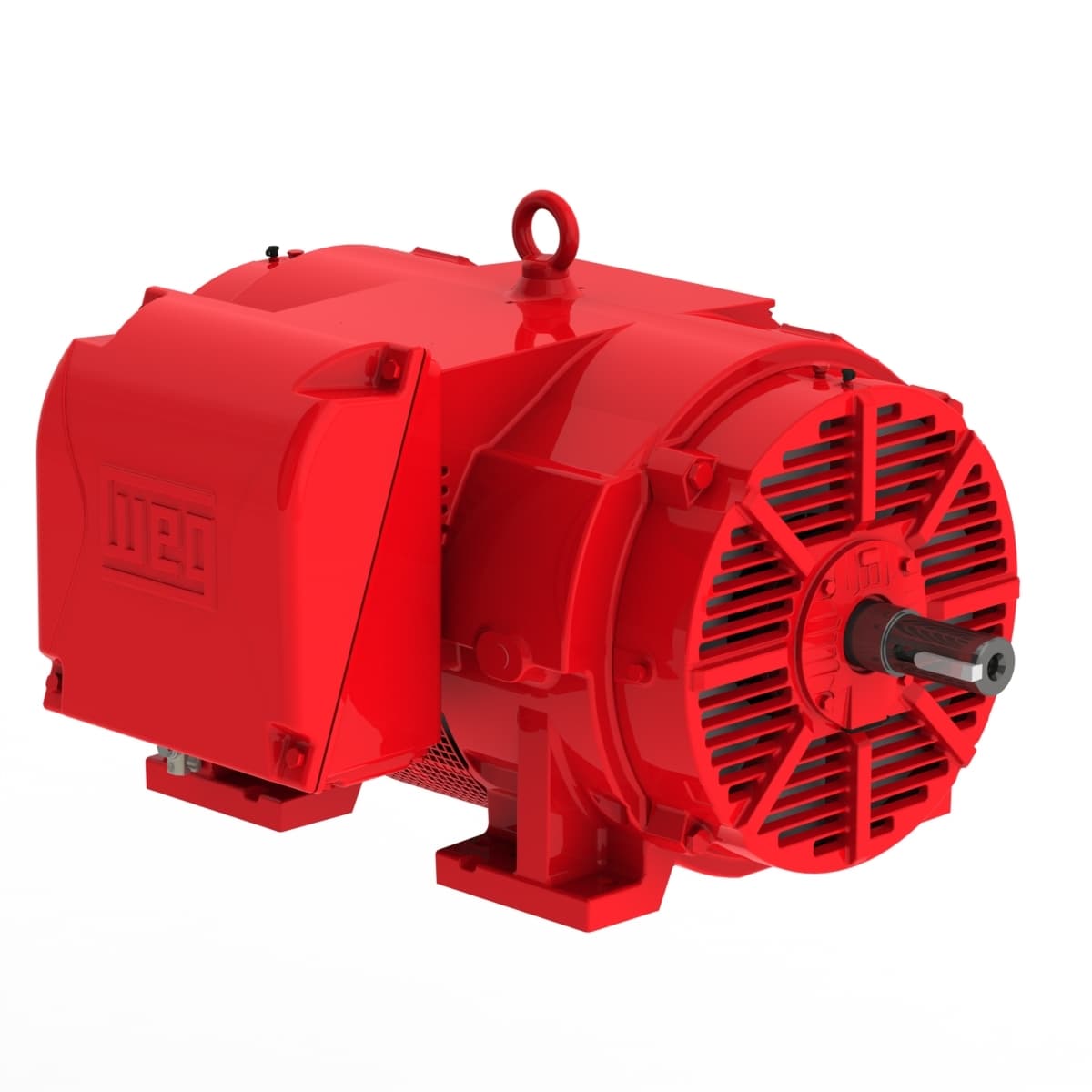

03036OP3EFP284TS-W40 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  30 HP
• Rated Speed
  3545 rpm
• Flange Type
  Without
• Approx. weight³
  304 lb
• Terminal box¹
  Left position
• Output rating
  30 HP
• Standard
  NEMA MG-1
• Number of poles
  2
• Voltage
  230/460//380 V
• Flange
  Without
• Synchronous speed
  3600 rpm
• Mounting
  F-1
• Enclosure
  IC01 - ODP
• Starting Method
  Direct On Line
• Ambient temperature
  -20°C to +40°C
• Duty Cycle
  Cont.(S1)
• Altitude
  1000 m.a.s.l.
• Temperature rise
  80 K
Degree of Protection
IP23
Rotation¹
Both (CW and CCW)
Service factor
1.15
Breakdown torque
260 %
Rated torque
44.4 ft.lb
Locked rotor time
28s (cold) 16s (hot)
Insulation Class
F
Moment of inertia (J)
1.59 sq.ft.lb
Locked rotor torque
170 %
Design
B
LRC
6.2x(Code G)
No load current
22.0/11.0 A
Frequency
60 Hz
Slip
1.53 %
Rated voltage
230/460 V
L. R. Amperes
433/216 A
Rated current
69.8/34.9 A
Output
30 HP (22 kW)
Rated speed
3545 rpm
Frame
284TS
Number of Poles
2
