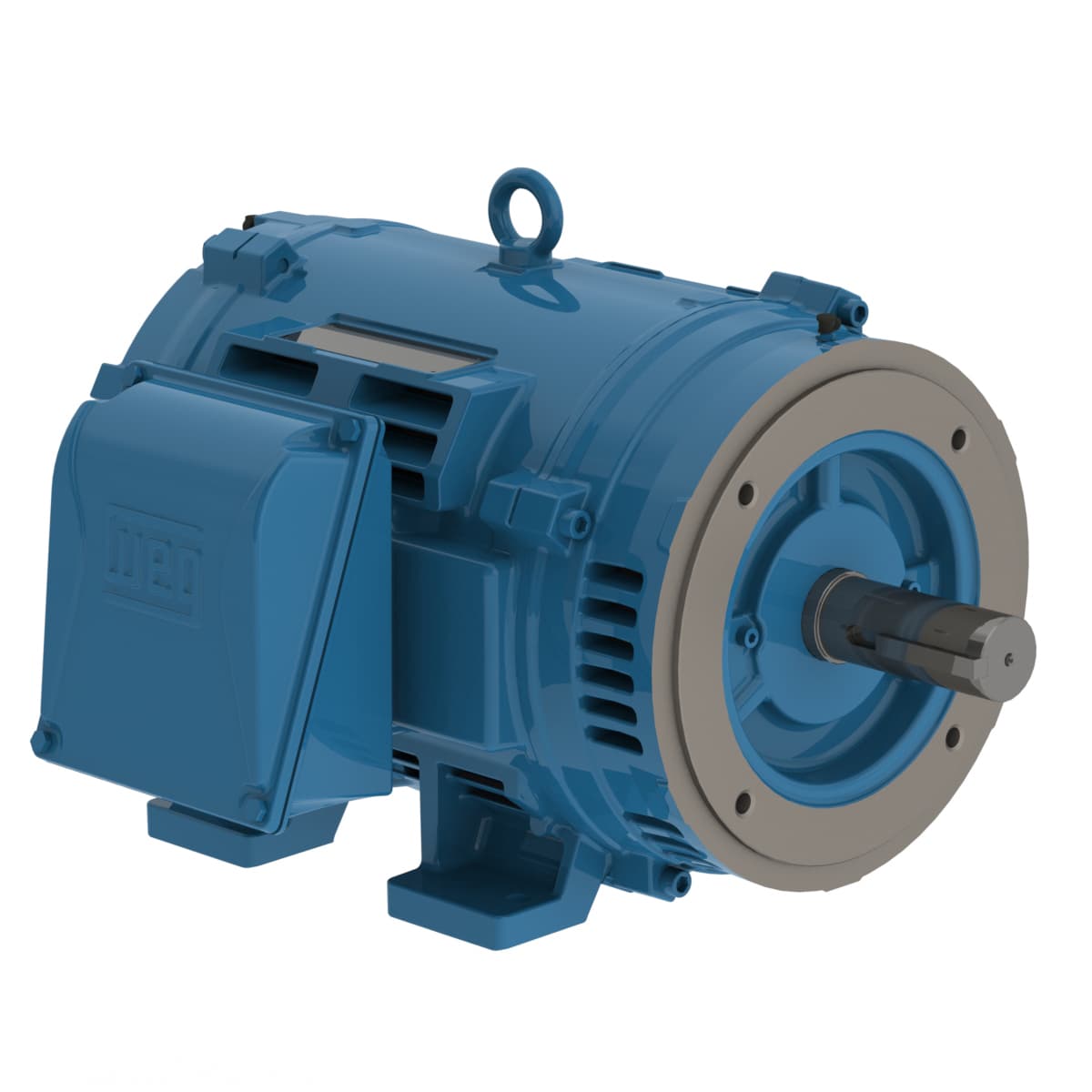

03036OT3H284TSC-W40 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  575 V
• Output Rating
  30 HP
• Rated Speed
  3545 rpm
• Flange Type
  C
• Synchronous speed
  3600 rpm
• Standard
  NEMA MG-1
• Terminal box¹
  Left position
• Flange
  C
• Voltage
  575 V
• Number of poles
  2
• Output rating
  30 HP
• Approx. weight³
  312 lb
• Noise level²
  73.0 dB(A)
• Rotation¹
  Both (CW and CCW)
• Degree of Protection
  IP23
• Mounting
  F-1
• Ambient temperature
  -20°C to +40°C
• Altitude
  1000 m.a.s.l.
• Starting Method
  Direct On Line
Enclosure
IC01 - ODP
Temperature rise
80 K
Duty Cycle
Cont.(S1)
Insulation Class
F
Service factor
1.25
Design
B
Locked rotor time
18s (cold) 10s (hot)
Moment of inertia (J)
1.59 sq.ft.lb
Breakdown torque
260 %
Locked rotor torque
180 %
Rated torque
44.4 ft.lb
No load current
10.0 A
Rated voltage
575 V
L. R. Amperes
176 A
LRC
6.3x(Code G)
Rated current
28.0 A
Number of Poles
2
Output
30 HP (22 kW)
Slip
1.53 %
Frequency
60 Hz
Rated speed
3545 rpm
Frame
284TSC

03036OT3H284TSC-W40 Related Documents
