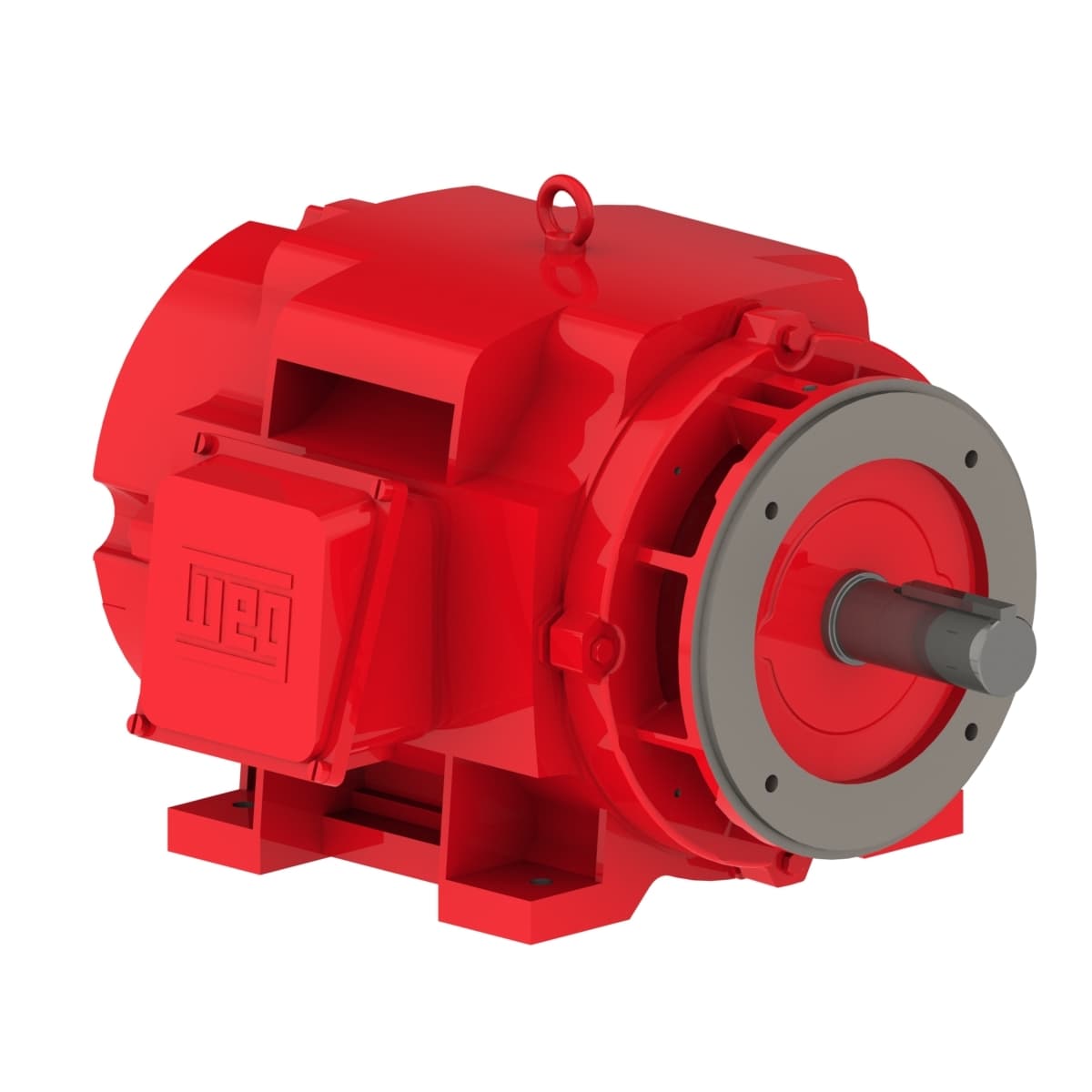

03036OP3EFP284TSC WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 30 HP
- Rated Speed 3540 rpm
- Flange Type C
- Terminal box¹ Left position
- Output rating 30 HP
- Flange C
- Synchronous speed 3600 rpm
- Number of poles 2
- Voltage 230/460 V
- Noise level² 72.0 dB(A)
- Standard NEMA MG-1
- Approx. weight³ 322 lb
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Degree of Protection IP23
- Ambient temperature -20°C to +40°C
- Enclosure IC01 - ODP
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Service factor 1.15
- Insulation Class F
- Temperature rise 80 K
- Design B
- Breakdown torque 270 %
- Moment of inertia (J) 1.68 sq.ft.lb
- Locked rotor time 21s (cold) 12s (hot)
- Locked rotor torque 200 %
- Rated torque 44.5 ft.lb
- LRC 6.2x(Code G)
- No load current 18.2/9.10 A
- L. R. Amperes 428/214 A
- Rated current 69.0/34.5 A
- Rated voltage 230/460 V
- Number of Poles 2
- Rated speed 3540 rpm
- Slip 1.67 %
- Frame 284TSC
- Frequency 60 Hz
- Output 30 HP (22 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
