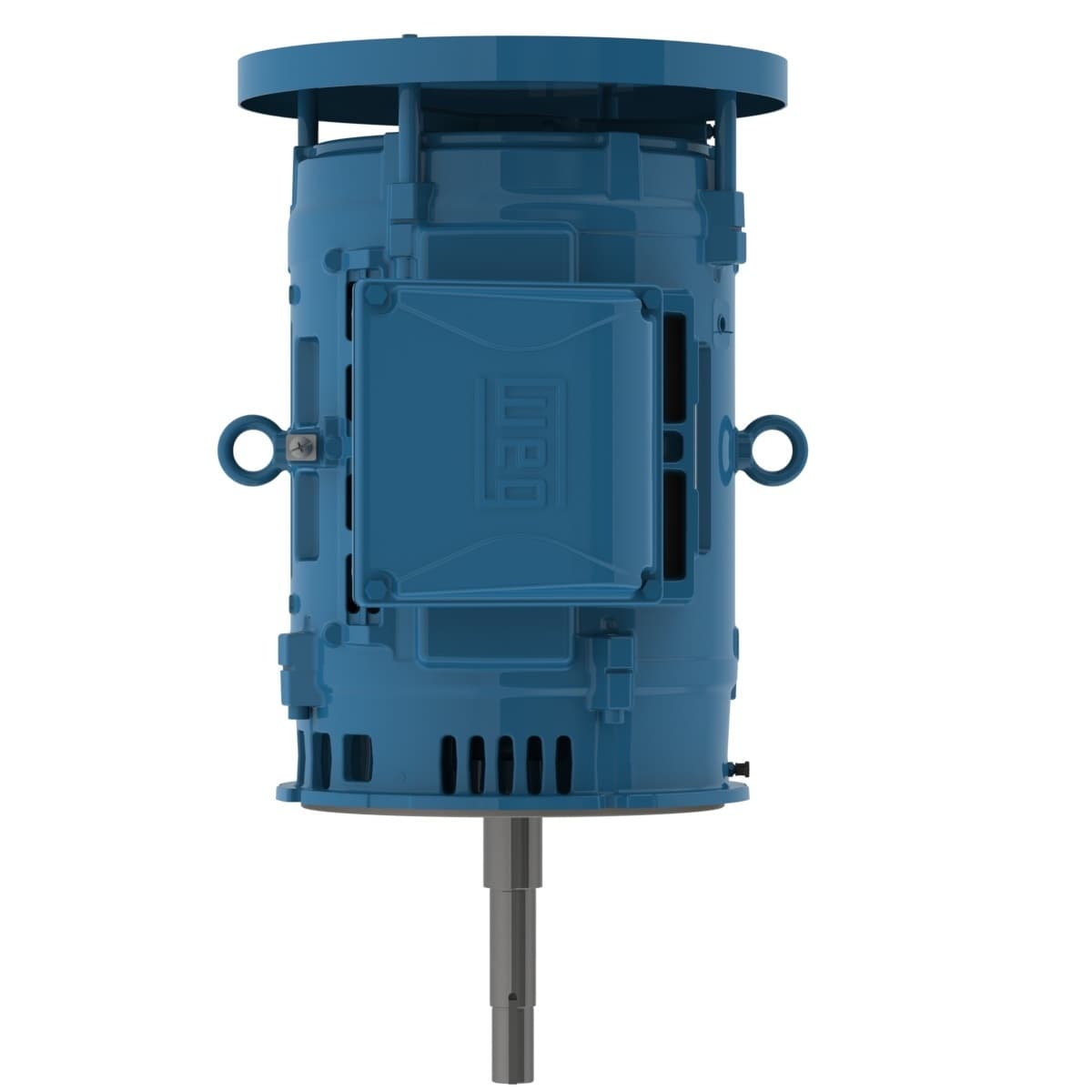

03036OT3E284JPV-W40 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 30 HP
- Rated Speed 3545 rpm
- Flange Type C
- Flange C
- Terminal box¹ Left position
- Synchronous speed 3600 rpm
- Output rating 30 HP
- Number of poles 2
- Approx. weight³ 335 lb
- Voltage 230/460//380 V
- Standard NEMA MG-1
- Rotation¹ Both (CW and CCW)
- Noise level² 73.0 dB(A)
- Mounting W-6
- Degree of Protection IP23
- Service factor 1.25
- Enclosure IC01 - ODP
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Starting Method Direct On Line
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- LRC 6.3x(Code G)
- Design B
- No load current 25.0/12.5 A
- Locked rotor time 18s (cold) 10s (hot)
- Moment of inertia (J) 1.59 sq.ft.lb
- Insulation Class F
- Breakdown torque 260 %
- Locked rotor torque 180 %
- Rated torque 44.4 ft.lb
- Frequency 60 Hz
- Number of Poles 2
- Frame 284/6JP
- Slip 1.53 %
- Rated speed 3545 rpm
- Rated current 70.0/35.0 A
- Rated voltage 230/460 V
- Output 30 HP (22 kW)
- L. R. Amperes 441/221 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
