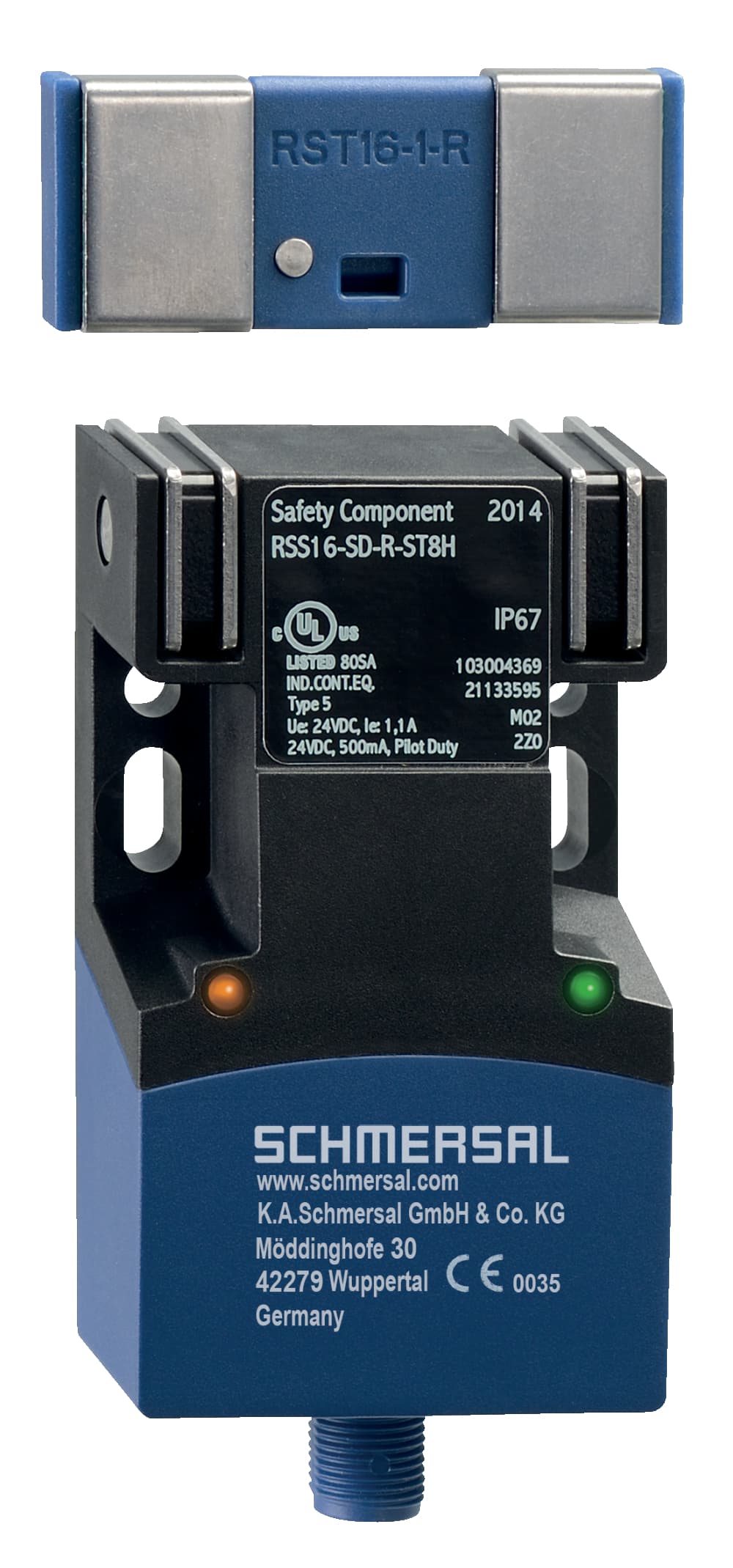

RSS16-D-R-ST8H Schmersal Safety Switches

Product Details

• EMC rating
  IEC 60947-3
• Interfering radiation
  IEC 61000-6-4
• Current, Utilisation category DC13
  0.05 A
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Voltage, Utilisation category DC12
  24 VDC
• Current leakage Ir
  0.5 mA
• Voltage drop Ud, maximum
  2 V
• Output current, (fail-safe output), maximum
  1 A
• Versions
  p-type
• Rated operating current (safety outputs)
  1,000 mA
• Switching frequency, approx.
  1 Hz
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Operating current
  50 mA
• Voltage type
  DC (direct current)
• Rated operating voltage, maximum
  26.4 VDC
• Rated operating voltage, minimum
  20.4 VDC
• No-load supply current I0
  100 mA
• Degree of pollution to VDE 0100
  3
• Overvoltage category
  III
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Protection rating
0
Restistance to shock
30 g / 11 ms
Degree of protection
IP65 to EN 60529, IP66 to EN 60529, IP67 to EN 60529
Ambient temperature, maximum
+70 °C
Storage and transport temperature, maximum
+85 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-25 °C
Height of sensor
30 mm
Width of sensor
52 mm
Length of sensor
91 mm
Ensured switch distance ON Sao
5 mm
Terminal Connector
Connector M12, 8-pole
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Switch distance
15 mm
Ensured switch distance OFF Sar
30 mm
Tightening torque of nuts, maximum
2 Nm
Mounting
2 x M5, Cylinder head screw
Repeat accuracy R R
0.5 mm
Actuating panels
front side, rear, from head
Hysteresis (Switch distance), maximum
2 mm
Number of fail-safe digital outputs
2
Number of semi-conductor outputs with signaling function
1
Number of LEDs
2
Integral System Diagnostics, status
Yes
Cascadable
Yes
Safety functions
Yes
Series-wiring
Yes
Short circuit detection
Yes
Short-circuit recognition
Yes
Diagnostic output
Yes
Latching
Yes
Duration of risk, maximum
200 ms
Time to readiness, maximum
2,000 ms
Reaction time, maximum
100 ms
Gross weight
250 g
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Active principle
RFID
Coding level according to ISO 14119
Low
general information
Universal coding
Installation conditions (mechanical)
not flush
Sensor topology
Sensor for series wiring
Active area
lateral, front side, cover-side
Standards
IEC 60947-5-3
Housing construction form
Block
