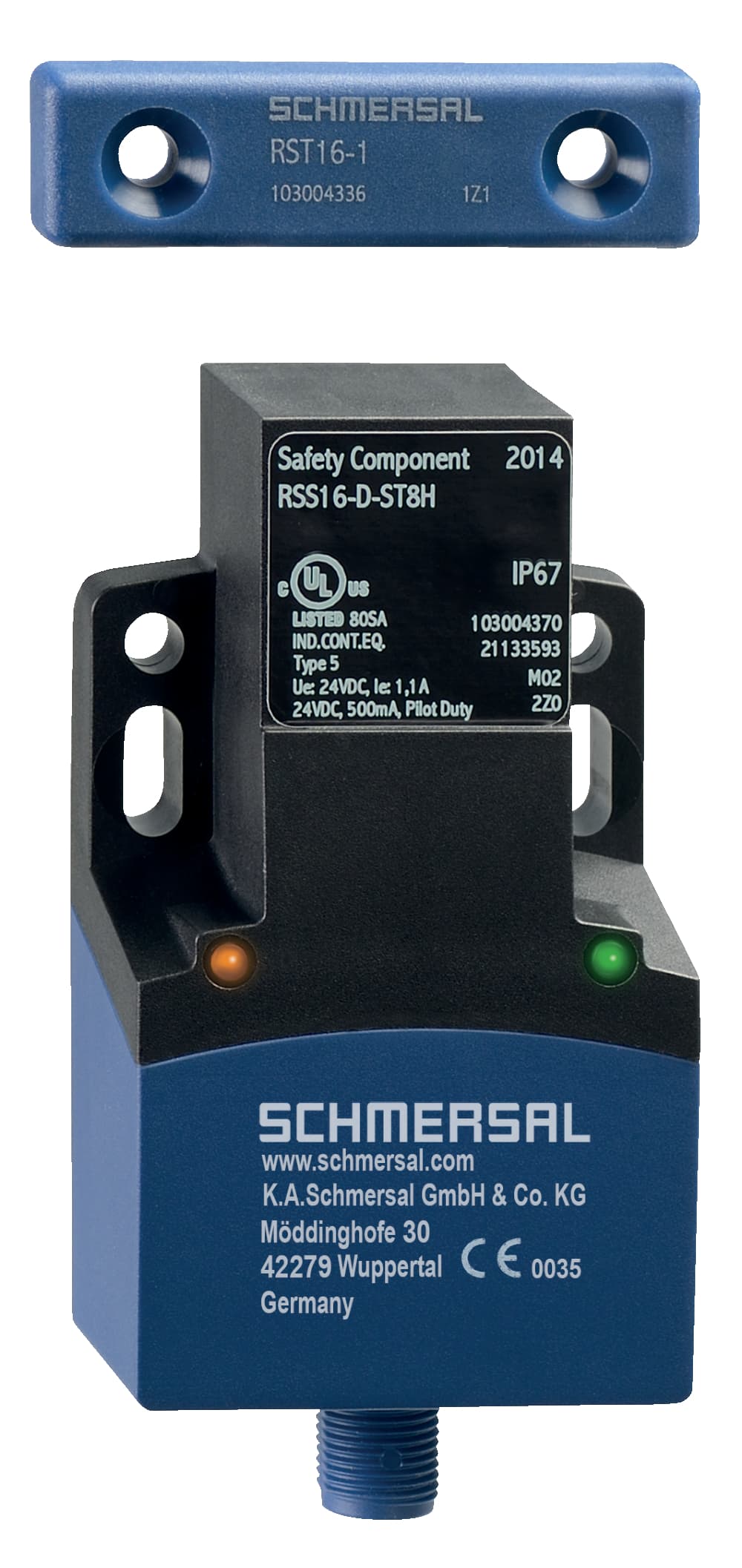

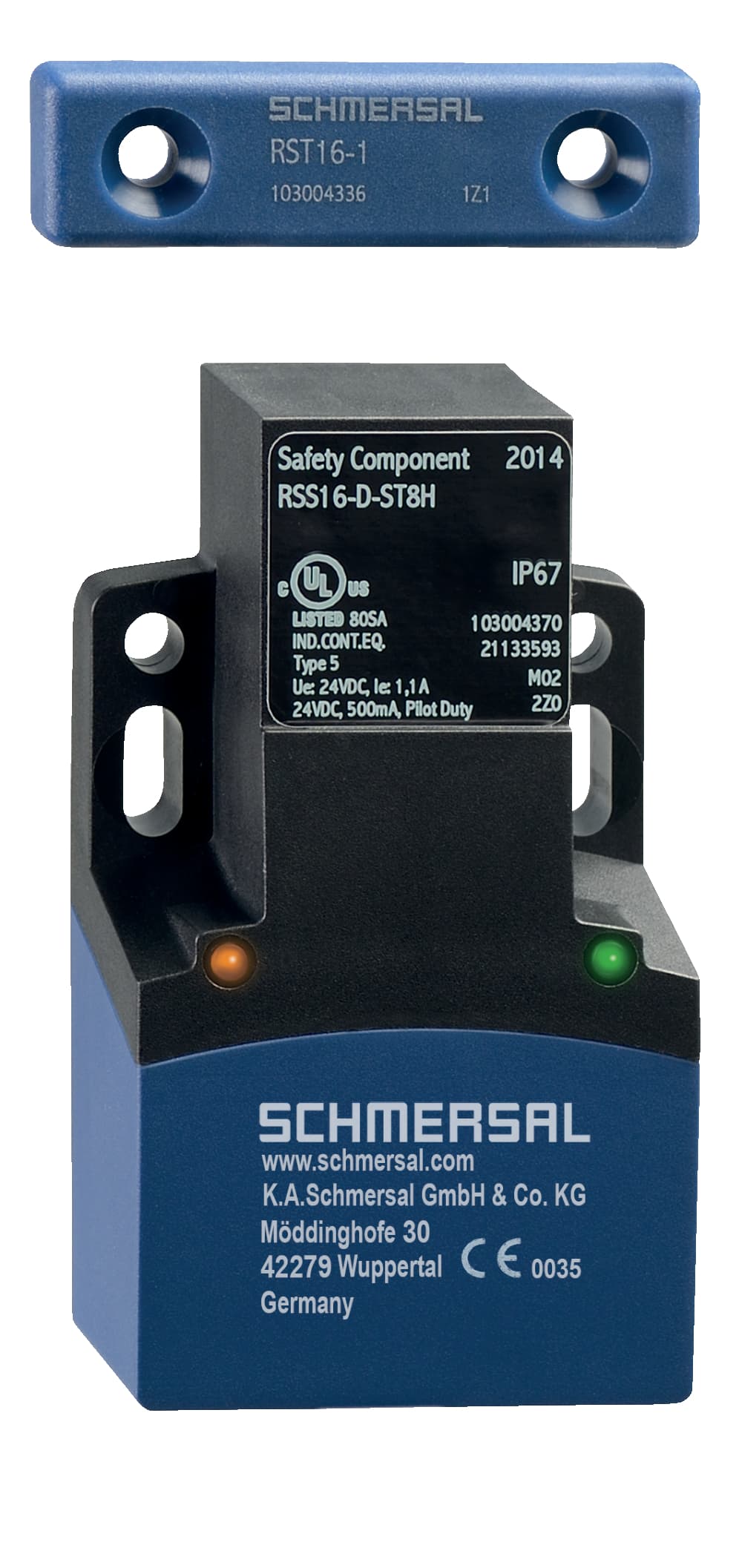

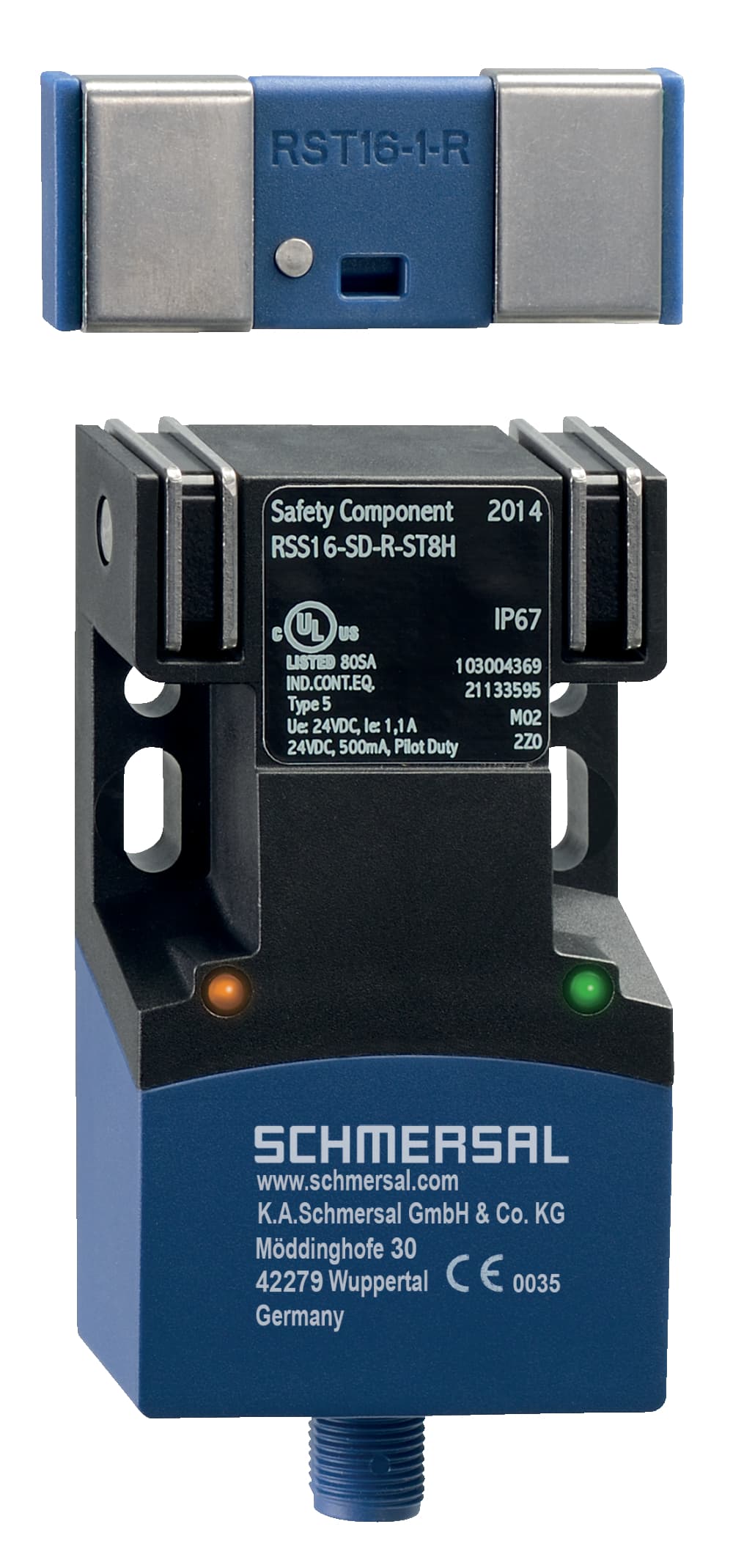

RSS16-SD-ST8H Schmersal Safety Switches

Product Details

• Current, Utilisation category DC13
  1 A
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC12
  1 A
• Voltage, Utilisation category DC12
  24 VDC
• Versions
  p-type
• Voltage drop Ud, maximum
  2 V
• Current leakage Ir
  0.5 mA
• Output current, (fail-safe output), maximum
  1 A
• Rated operating current (safety outputs)
  1,000 mA
• Switching frequency, approx.
  1 Hz
• Rated operating voltage, maximum
  26.4 VDC
• Operating current
  150 mA
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Rated impulse withstand voltage Uimp
  0.8 kV
• Rated operating voltage, minimum
  20.4 VDC
• Overvoltage category
  III
• No-load supply current I0
  100 mA
• Voltage type
  DC (direct current)
• Degree of pollution to VDE 0100
  3
• Rated insulation voltage Ui
  32 VDC
Protection rating
0
Restistance to shock
30 g / 11 ms
Storage and transport temperature, maximum
+85 °C
Ambient temperature, maximum
+70 °C
Storage and transport temperature, minimum
-25 °C
Height of sensor
30 mm
Ambient temperature, minimum
-25 °C
Degree of protection
IP65 to EN 60529, IP66 to EN 60529, IP67 to EN 60529
Length of sensor
91 mm
Width of sensor
52 mm
Ensured switch distance OFF Sar
30 mm
Mounting
2 x M5, Cylinder head screw
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Terminal Connector
Connector M12, 8-pole
Ensured switch distance ON Sao
12 mm
Tightening torque of nuts, maximum
2 Nm
Switch distance
15 mm
Repeat accuracy R R
0.5 mm
Hysteresis (Switch distance), maximum
2 mm
Actuating panels
front side, rear, from head
Number of Series-wiring of sensors
31
Number of fail-safe digital outputs
2
Number of semi-conductor outputs with signaling function
1
Number of LEDs
2
Integral System Diagnostics, status
Yes
Diagnostic output
Yes
Cascadable
Yes
Safety functions
Yes
Short circuit detection
Yes
Serial diagnostics
Yes
Reaction time, maximum
100 ms
Duration of risk, maximum
200 ms
Time to readiness, maximum
2,000 ms
Gross weight
250 g
Series-wiring
Yes
Interfering radiation
IEC 61000-6-4
EMC rating
IEC 60947-3
Short-circuit recognition
Yes
Active principle
RFID
Active area
lateral, front side, cover-side
Housing construction form
Block
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Coding level according to ISO 14119
Low
Sensor topology
Sensor for series wiring
Installation conditions (mechanical)
not flush
general information
Universal coding
Standards
IEC 60947-5-3
