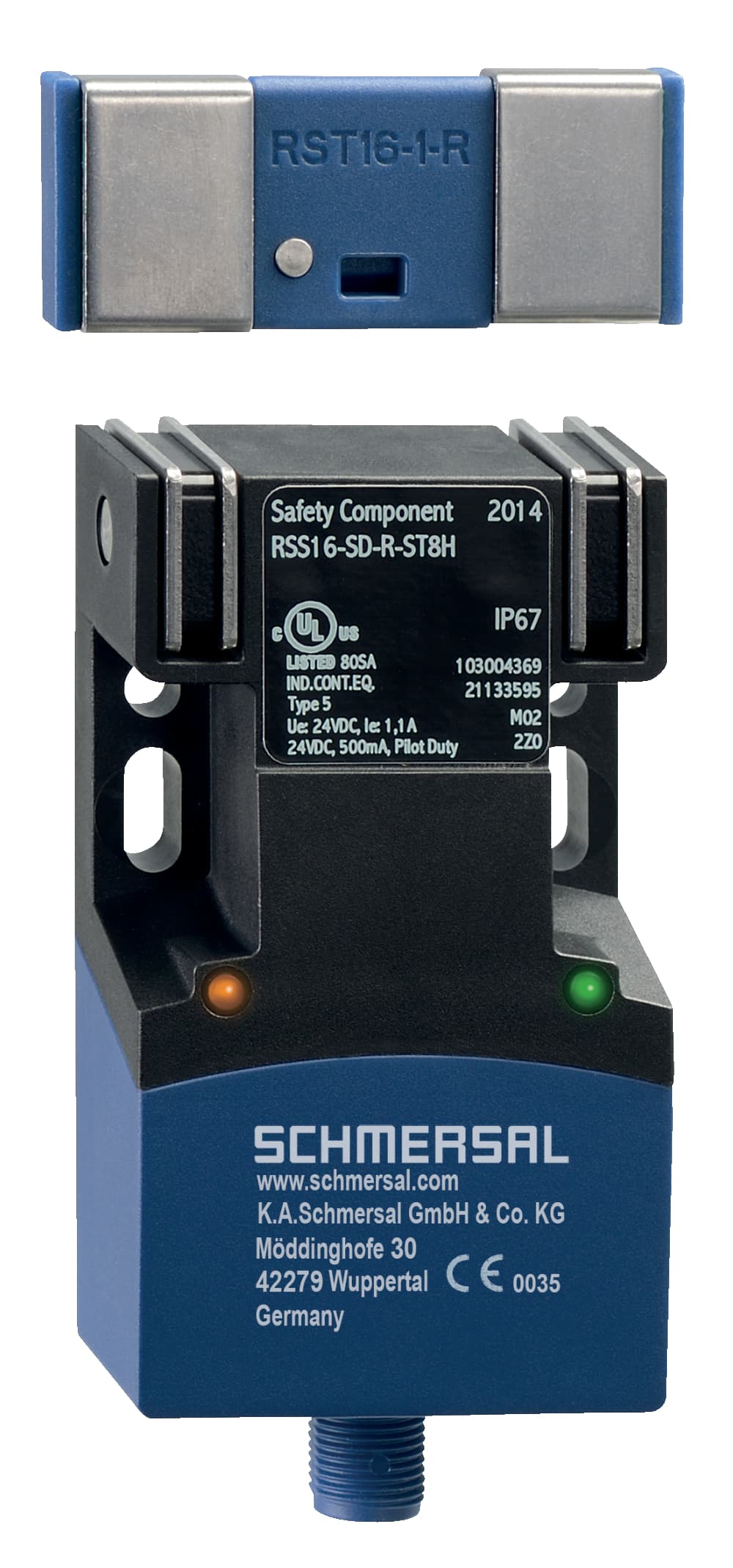

RSS16-I2-D-R-ST8H Schmersal Safety Switches

Product Details

• EMC rating
  IEC 60947-3
• Interfering radiation
  IEC 61000-6-4
• Voltage drop Ud, maximum
  2 V
• Voltage, Utilisation category DC13
  24 VDC
• Switching frequency, approx.
  1 Hz
• Voltage type
  DC (direct current)
• No-load supply current I0
  100 mA
• Storage and transport temperature, maximum
  +85 °C
• Ambient temperature, maximum
  +70 °C
• Degree of protection
  IP65 to EN 60529, IP66 to EN 60529, IP67 to EN 60529
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Current leakage Ir
  0.5 mA
• Versions
  p-type
• Output current, (fail-safe output), maximum
  1 A
• Rated operating current (safety outputs)
  1,000 mA
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Rated operating voltage, maximum
  26.4 VDC
• Operating current
  50 mA
Rated operating voltage, minimum
20.4 VDC
Degree of pollution to VDE 0100
3
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Restistance to shock
30 g / 11 ms
Protection rating
0
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-25 °C
Height of sensor
30 mm
Width of sensor
52 mm
Terminal Connector
Connector M12, 8-pole
Ensured switch distance OFF Sar
30 mm
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Length of sensor
91 mm
Ensured switch distance ON Sao
5 mm
Tightening torque of nuts, maximum
2 Nm
Repeat accuracy R R
0.5 mm
Switch distance
15 mm
Hysteresis (Switch distance), maximum
2 mm
Mounting
2 x M5, Cylinder head screw
Actuating panels
front side, rear, from head
Number of fail-safe digital outputs
2
Number of LEDs
2
Number of semi-conductor outputs with signaling function
1
Integral System Diagnostics, status
Yes
Cascadable
Yes
Short-circuit recognition
Yes
Safety functions
Yes
Short circuit detection
Yes
Series-wiring
Yes
general information
Individual coding, multiple teaching
Diagnostic output
Yes
Housing construction form
Block
Active principle
RFID
Sensor topology
Sensor for series wiring
Standards
IEC 60947-5-3
Installation conditions (mechanical)
not flush
Coding level according to ISO 14119
High
Time to readiness, maximum
2,000 ms
Latching
Yes
Duration of risk, maximum
200 ms
Reaction time, maximum
100 ms
Gross weight
275 g
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Active area
lateral, front side, cover-side
