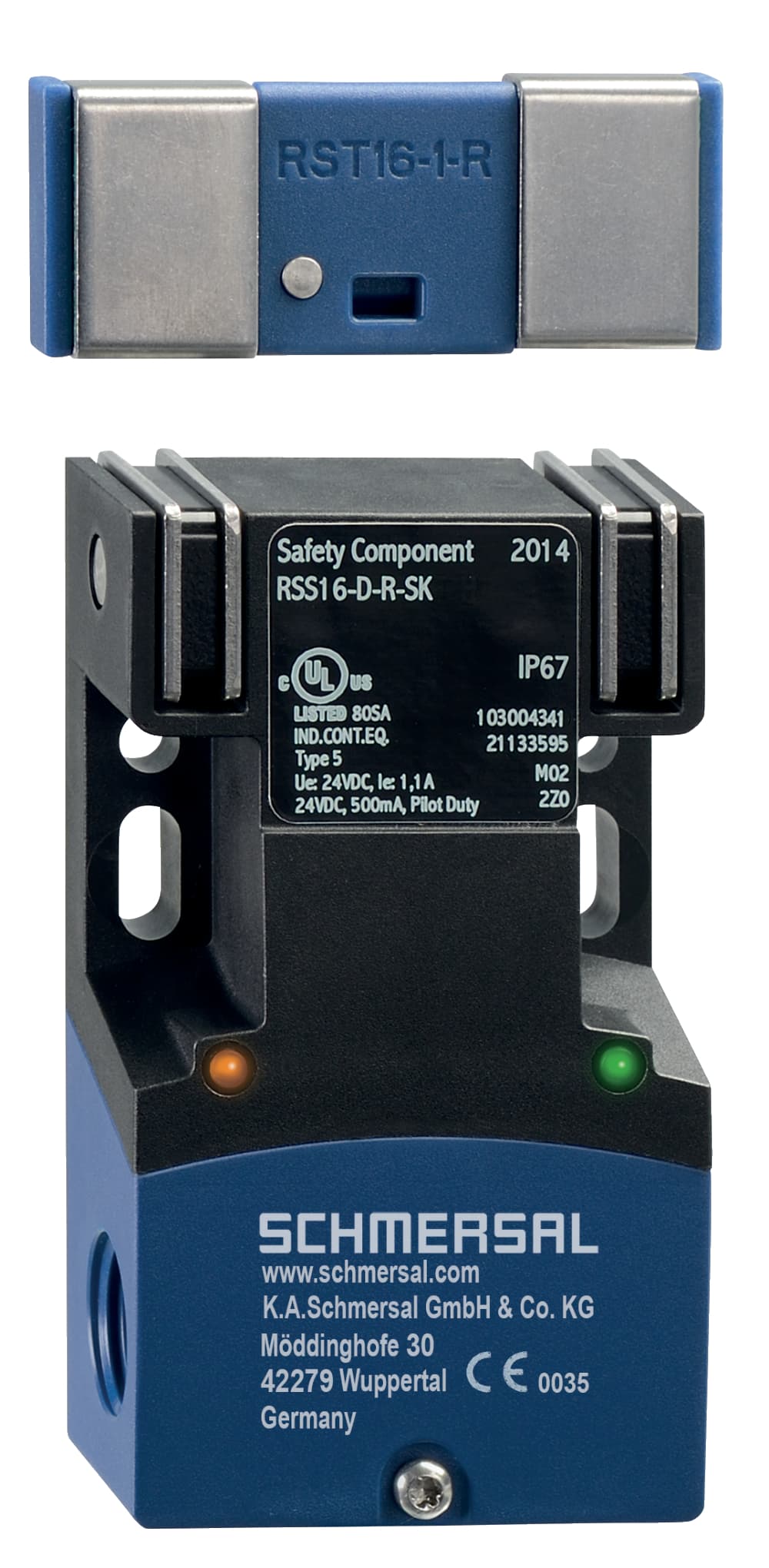

RSS16-D-R-SK Schmersal Safety Switches

Product Details

• Current leakage Ir
  0.5 mA
• Voltage type
  DC (direct current)
• Rated operating current (safety outputs)
  1,000 mA
• Rated operating voltage, minimum
  20.4 VDC
• EMC rating
  IEC 60947-3
• Interfering radiation
  IEC 61000-6-4
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Voltage drop Ud, maximum
  2 V
• Versions
  p-type
• Output current, (fail-safe output), maximum
  1 A
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Switching frequency, approx.
  1 Hz
• Operating current
  50 mA
• Rated operating voltage, maximum
  26.4 VDC
• No-load supply current I0
  100 mA
• Overvoltage category
  III
• Degree of pollution to VDE 0100
  3
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Protection rating
0
Storage and transport temperature, maximum
+85 °C
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+70 °C
Ambient temperature, minimum
-25 °C
Height of sensor
30 mm
Width of sensor
52 mm
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Repeat accuracy R R
0.5 mm
Terminal Connector
Screw connection
Mounting
2 x M5, Cylinder head screw
Length of sensor
91 mm
Ensured switch distance ON Sao
5 mm
Switch distance
15 mm
Tightening torque of nuts, maximum
2 Nm
Cascadable
Yes
Ensured switch distance OFF Sar
30 mm
Hysteresis (Switch distance), maximum
2 mm
Integral System Diagnostics, status
Yes
Actuating panels
front side, rear, from head
Safety functions
Yes
Number of fail-safe digital outputs
2
Number of LEDs
2
Number of semi-conductor outputs with signaling function
1
Series-wiring
Yes
Short-circuit recognition
Yes
Short circuit detection
Yes
Diagnostic output
Yes
Latching
Yes
Duration of risk, maximum
200 ms
Reaction time, maximum
100 ms
Gross weight
208 g
Sensor topology
Sensor for series wiring
Time to readiness, maximum
2,000 ms
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Coding level according to ISO 14119
Low
Housing construction form
Block
Installation conditions (mechanical)
not flush
Active principle
RFID
Standards
IEC 60947-5-3
Active area
lateral, front side, cover-side
general information
Universal coding
