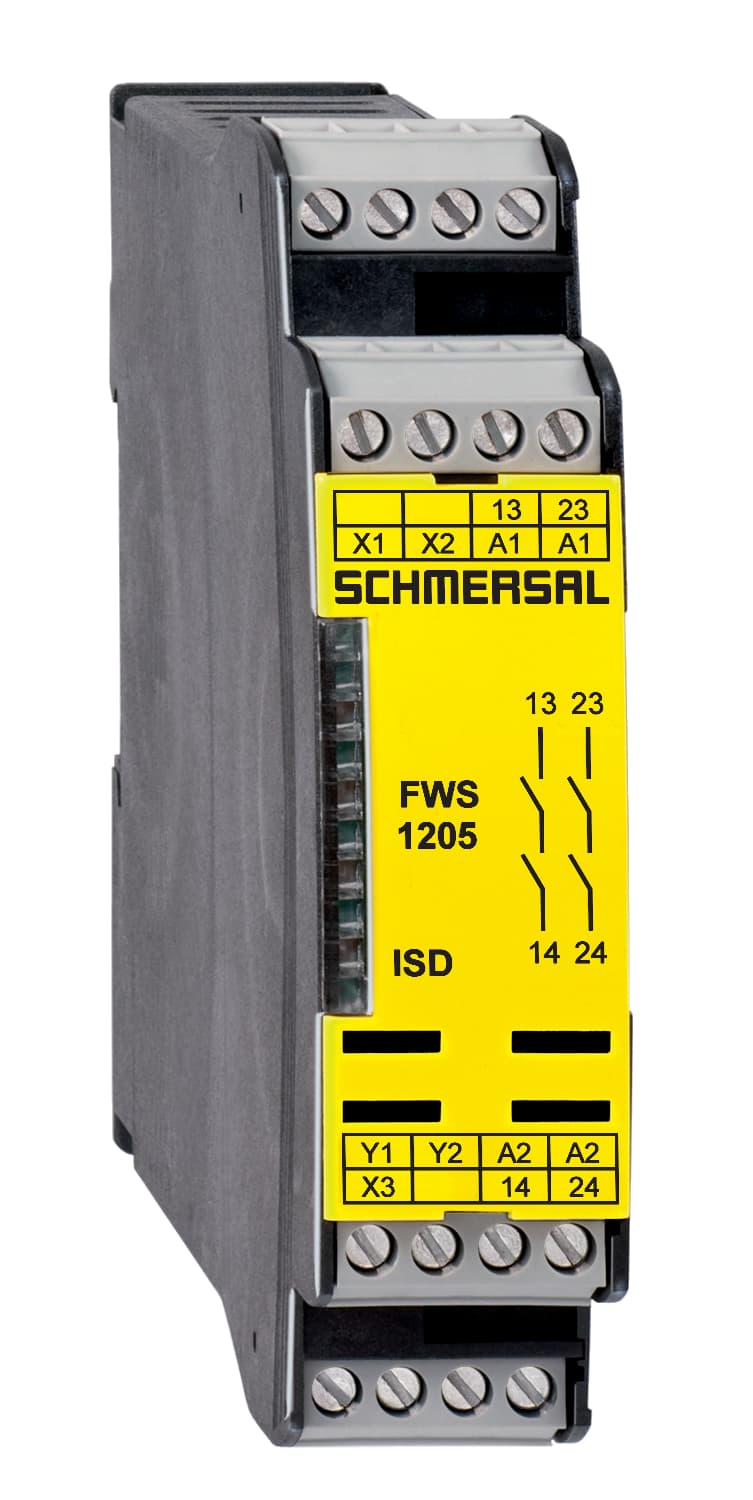

FWS 1205 A Schmersal Electronic Components

Product Details

• Conduction resistance, maximum
  40 Ω
• EMC rating
  10 V/m
• Input signal, LOW Signal 0
  0 … 2 VDC
• Input signal, HIGH Signal 1
  10 … 30 VDC
• Switching capacity, maximum
  24 VDC
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  2 A
• Switching capacity, minimum
  10 mA
• Voltage, Utilisation category AC15
  230 VAC
• Current, Utilisation category AC-15
  3 A
• Contact resistance, maximum
  0.1 Ω
• Electrical power consumption, maximum
  5 W
• Note (Contact resistance)
  in new state
• Rated control voltage at DC, maximum
  28.8 VDC
• Rated control voltage at AC 50 Hz, maximum
  26.4 VAC
• Rated AC voltage for controls at DC minimum
  20.4 VDC
• Thermal test current
  6 A
• Rated control voltage at AC 60 Hz, maximum
  26.4 VAC
• Rated AC voltage for controls, 60 Hz, minimum
  20.4 VAC
• Rated operating voltage
  24 VDC ± 15 %
Rated AC voltage for controls, 50 Hz, minimum
20.4 VAC
Degree of pollution to VDE 0110
3
Overvoltage category
II
Rated impulse withstand voltage Uimp
4.8 kV
Resistance to vibrations to EN 60068-2-6
10 ... 55 Hz, Amplitude 0.35 mm
Storage and transport temperature, maximum
+70 °C
Ambient temperature, maximum
+55 °C
Restistance to shock
30 g / 11 ms
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
+0 °C
Degree of protection of the mounting space
IP54
Degree of protection of clips or terminals
IP20
Degree of protection of the enclosure
IP40
Depth
121 mm
Tightening torque of Clips
0.6 Nm
Width
22.5 mm
Cable section, minimum
0.2 mm²
Terminal designations
IEC/EN 60947-1
Height
100 mm
Cable section, maximum
2.5 mm²
Mounting
Snaps onto standard DIN rail to EN 60715
Number of LEDs
1
Mechanical life, minimum
20,000,000 Operations
Number of signalling outputs
2
Number of undelayed semi-conductor outputs with signaling function
2
Number of safety contacts
2
Terminal Connector
Screw connection, rigid or flexible
Earth connection detection
Yes
Integral System Diagnostics, status
Yes
Automatic reset function
Yes
Gross weight
195 g
Standards
IEC/EN 60204-1, BG-GS-ET-20, EN ISO 13849-1
Material of the contacts, electrical
Ag-Ni 10 and 0.2 µm gold-plated
Climatic stress
EN 60068-2-3, BG-GS-ET-14
Reset after disconnection of supply voltage
Yes
Stop-Category
0
Wire breakage detection
Yes
Enclosure material
Glass-fibre reinforced thermoplastic, ventilated
