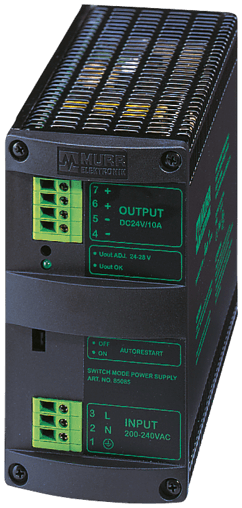

857726 Murr Elektronik Electronic Components

Product Details

• Frequency
  50...60 Hz
• Product article number of manufacturer
  857726
• Inrush current after 1 ms
  max. 22 A
• Primary fusing external
  max. 10 A
• Input current
  1.6 A (400 V AC)
• Input voltage
  340...470 V AC
• Parallel usage/serial usage
  Parallel circuit
• Ripple
  max. 20 mV eff/rms
• Spikes
  max. 200 mV ss/pp
• Unit protection
  short-circuit and overload protected
• Output current
  10 A (+60 °C); 12 A (+40 °C)
• Mains failure bridging time
  min. 12 ms (400 V AC)
• LED display
  LED (green) for output voltage
• Efficiency
  88%
• Selectable switch-off mode
  front sided plug link (automatic re-start or definite shut-off)
• Dimensions H×W×D
  127×68×160 mm
• Mounting method
  DIN-rail mountable TH35 (EN 60715)
• Relative humidity
  5...95%, no condensation
• Output voltage
  24 V DC (SELV), ±1%; 24...28 V adjustable
• Temperature range
  0...+60 °C (storage temperature -25...+85 °C)
Standards
IEC 61010-2-201, EN 61204-3, EN 55022 B
