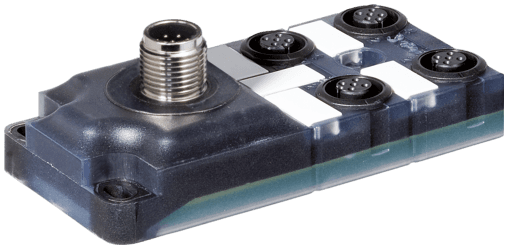

8000-88510-3980500 Murr Elektronik I/O Distributors

Product Details

• Weight
  965.59 g
• Series
  Distribution Systems
• Acceleration (C-track)
  max. 10 m/s²
• Product article number of manufacturer
  8000-88510-3980500
• PIN 5
  (Earth)
• Travel speed (C-track)
  max. 2 m/s
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• PIN 4
  (NO)/(S1)
• Temperature range (mobile)
  -5...+60 °C
• PIN 2
  (NC)/(S2)
• Bend radius (moving)
  10× outer Ø
• PIN 3
  (-)
• PIN 1
  (+)
• Bend radius (fixed)
  5× outer Ø
• Temperature range (fixed)
  -30...+80 °C
• Test voltage
  2000 V AC
• Current load capacity
  to DIN VDE 0298-4
• Nominal voltage
  U0/U 300/300 V AC
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Outer-Ø (jacket)
  10.0 mm ±5%
Shore hardness (jacket)
87 ±5 A
Jacket Color
gray
Color (jacket)
gray
Shield
no
Material (jacket)
PUR/PVC
Wire-Ø incl. isolation
1.3 mm ±5% (0.34 mm²); 1.8 mm ±5% (0.75 mm²)

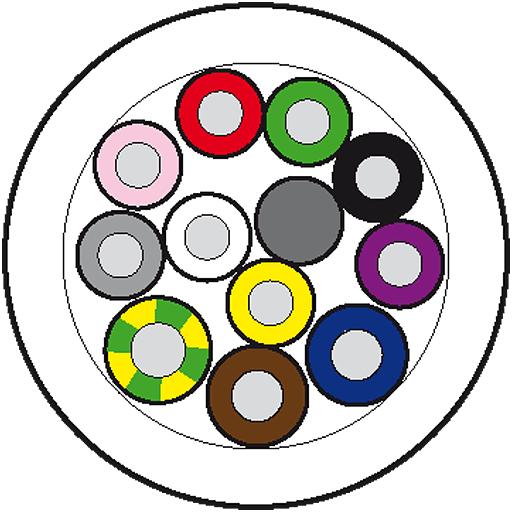

Color/numbering of wires
wh, grpk, brgn, ye, whgn, gn, rdbl, vi, grbr, bk, whgr, rd, yebr, pk, whye, gr+bl, br, gnye longitudinally striped
Shore hardness (wire isolation)
43 ±5 D
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 19 (0.75 mm²)
Material (wire isolation)
PVC
Diameter (core)
16× 0.34 + 3× 0.75 mm²
Single wire Ø (core)
0.15 mm
Construction (core)
19× 0.15 mm (0.34 mm²); 42× 0.15 mm (0.75 mm²); (multi-strand wire class 5/6)
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Cable identification
398
Cable Type
2 (PUR/PVC)
Cable number
398
Material (wire)
Cu wire, bare
Cable weight [g/m]
165 g
Approval (cable)
UL (AWM-Style 21441/10955), CE conform
Outer Ø
10.0 mm ±5%
Locking of ports
Screw thread (M12×1 mm)
Protection
IP65/IP67
C-track properties
2 Mio.
No./diameter of wires
16× 0.34 + 3× 0.75 mm²
Housing
Plastic, flame retardant
Temperature range
-20...+70 °C, depending on cable quality
Operating current per contact
max. 4 A
Wire isolation
PVC
Operating voltage
24 V DC
