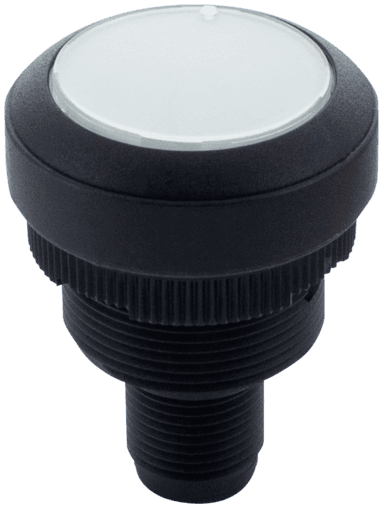

69060 Murr Elektronik I/O Systems

Product Details

• Weight
  25 g
• Series
  Field Bus System
• Switching voltage
  0,02...35 V
• Operating voltage of the luminous element
  20...28 V
• Collar color
  black
• Rated voltage UL 60947
  ≤ 30 V DC (42,4 V peak)
• Switching current
  0,01...100 mA
• Actuating function
  momentary contact function
• Color of illuminant
  white
• Color of front ring
  black
• Type of the lamps
  LED
• Color
  black
• Collar shape
  round
• Rated operating current Ie
  0,1 A
• Rated operating voltage (AC-15)
  35 V
• Rated operating voltage (DC-13)
  35 V
• Can be illuminated
  yes
• Product article number of manufacturer
  69060
• Housing
  Plastic
• Degree of protection (IP), front side
  IP66, IP67, IP69
Protection class (IP), rear side
IP66, IP67
Installation height
9,8 mm
Contact function
1 S
Actuating force
5 ... 12 N
Contact material
Gold
Fixing
Threaded ring
Terminal
M12, 4-pole, A-coded
Operating travel
≤ 1 mm
operating temperature
-25...70 °C
Dimensions H×W×D
29,8 x 40 mm
Mounting hole
22,3 mm
Relative humidity
≤ 93% @ 40 °C
Mounting depth
30,2 mm
Grid min.
30 mm
storage temperature
-40...85 °C
Rated insulation voltage
250 V
Installation height max.
≤ 2000 m
Salt-spray resistance
IEC 60068-2-11
UL Enclosure Type Rating (Front side)
type 4X
Rated surge voltage
800 V
Mechanical endurance
500000
Kind of short circuit protective device
fuse 250 V / 0.1 A / 1.5 kA gG quick
Power rating (voltage dependent)
1 W
Short-circuit current
1000 A
Mechanical endurance B10
650000
