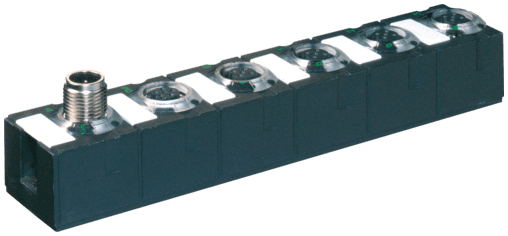

56721 Murr Elektronik I/O Systems

Product Details

• Weight
  170 g
• Series
  Field Bus System
• Accuracy
  max. ±0.5% (of range limit)
• Conversion time (analog)
  approx. 1 ms (per channel)
• Actuator supply UA
  24 V DC (EN 61131-2), max. 1.6 A (M12 female), short-circuit and overload protected
• Supply voltage
  24 V DC (EN 61131-2), via system connection (max. 4 A)
• Monitoring - no voltage
  yes
• Resolution (analog)
  11 Bit
• Short-circuit and overload
  yes
• Monitoring - under voltage
  yes
• Actuator warning
  per channel via LED and BUS
• Wire break upper/lower limit overload
  per channel via LED and BUS
• Diagnostic via BUS
  per module and channel
• Temperature range
  0...+55 °C (storage temperature -20...+75 °C)
• Dimensions H×W×D
  150×30×34.5 mm
• Product article number of manufacturer
  56721
• Communication status
  via LED
• Diagnostic via LED
  per module and channel
• Protection
  IP67
• I/O ports
  M12 (female) 5-pole, A-coded
Mounting method
2-hole screw mounting
Load
max. 500 Ω
Input range
0...20 mA, 4...20 mA
Sensor-system/actuator supply
via internal system connection (max. 2× 4 A)
Fieldbus
via internal system connection
Current consumption
max. 50 mA
LED display
US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
