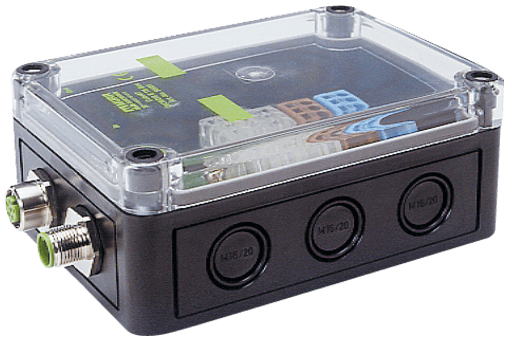

5668100 Murr Elektronik I/O Systems

Product Details

• Weight
  280 g
• Series
  Field Bus System
• Monitoring - no voltage
  yes
• Monitoring - under voltage
  yes
• Short-circuit and overload
  yes
• Actuator warning
  per channel via LED and BUS
• Diagnostic via BUS
  per module and channel
• Diagnostic via LED
  per module and channel
• Communication status
  via LED
• Product article number of manufacturer
  5668100
• Terminal row X0 (8 channels)
  Input
• I/O ports
  16× spring clamp plug-in terminals, max. 2.5 mm²
• Sensor-system/actuator supply
  via internal system connection (max. 2× 4 A)
• Fieldbus
  via internal system connection
• Current consumption
  max. 50 mA
• LED display
  US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
• Terminal row X1 (8 channels)
  Input/Output
• Type
  for 3-wire sensors or mechanical switches, PNP
• Input filter
  1 ms
• Lamp load
  10 W
Actuator supply UA
24 V DC (EN 61131-2), via system connection (max. 4 A)
Mounting method
screw fixing
Temperature range
0...+55 °C (storage temperature -20...+75 °C)
Switching current per output
max. 0.5 A (short-circuit and overload protected)
Sensor supply US
24 V DC (EN 61131-2), max. 8× 200 mA
Protection
IP66
Dimensions H×W×D
130×94×57 mm
