10416 Murr Elektronik Line Filters & Conditioners

Name: 10416
Brand: Murr Elektronik
Price: 117.9 USD
Availability: BackOrder

Part#:10416

Manufacturer:Murr Elektronik

Category:Line Filters & Conditioners

Product Lifecycle:Active

Get a quick Quote!

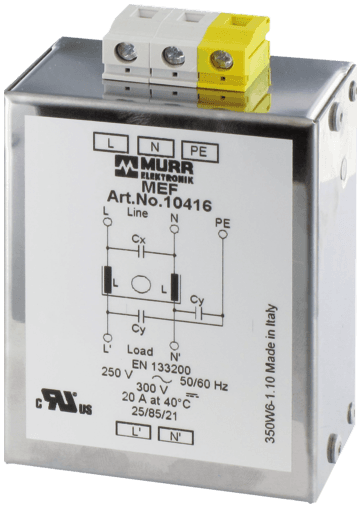

10416 Murrelektronik - MEF EMC-FILTER 1-PHASE 1-STAGE, I:20A U:250 VAC/300 VDC snap on, Universal filter

About the manufacturer: Murr Elektronik is one of the manufacturers that offers Line Filters & Conditioners that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 10416 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

Weight
312 g
Series
Filter Modules
Product article number of manufacturer
10416
Test isolation voltage
2.7 kV (L - N), 2 s; 2.1 kV (L - L), 2 s (EN 60939-2)
Dimensions H×W×D
107×65×39 mm
Climatic category
25/085/21 (EN 60068-1)
Overload current
18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)
Mounting method
DIN-rail mountable TH35 (EN 60715)
Consumption
max. 5 mA (250 V AC)
Connection cross section
0.2...6 mm² single core (AWG 24...9); 0.2...4 mm² multiple core (AWG 24...11)
Connection
Screw connection, touch protected
Operating frequency
50...60 Hz
Operating voltage
max. 250 V AC/300 V DC
