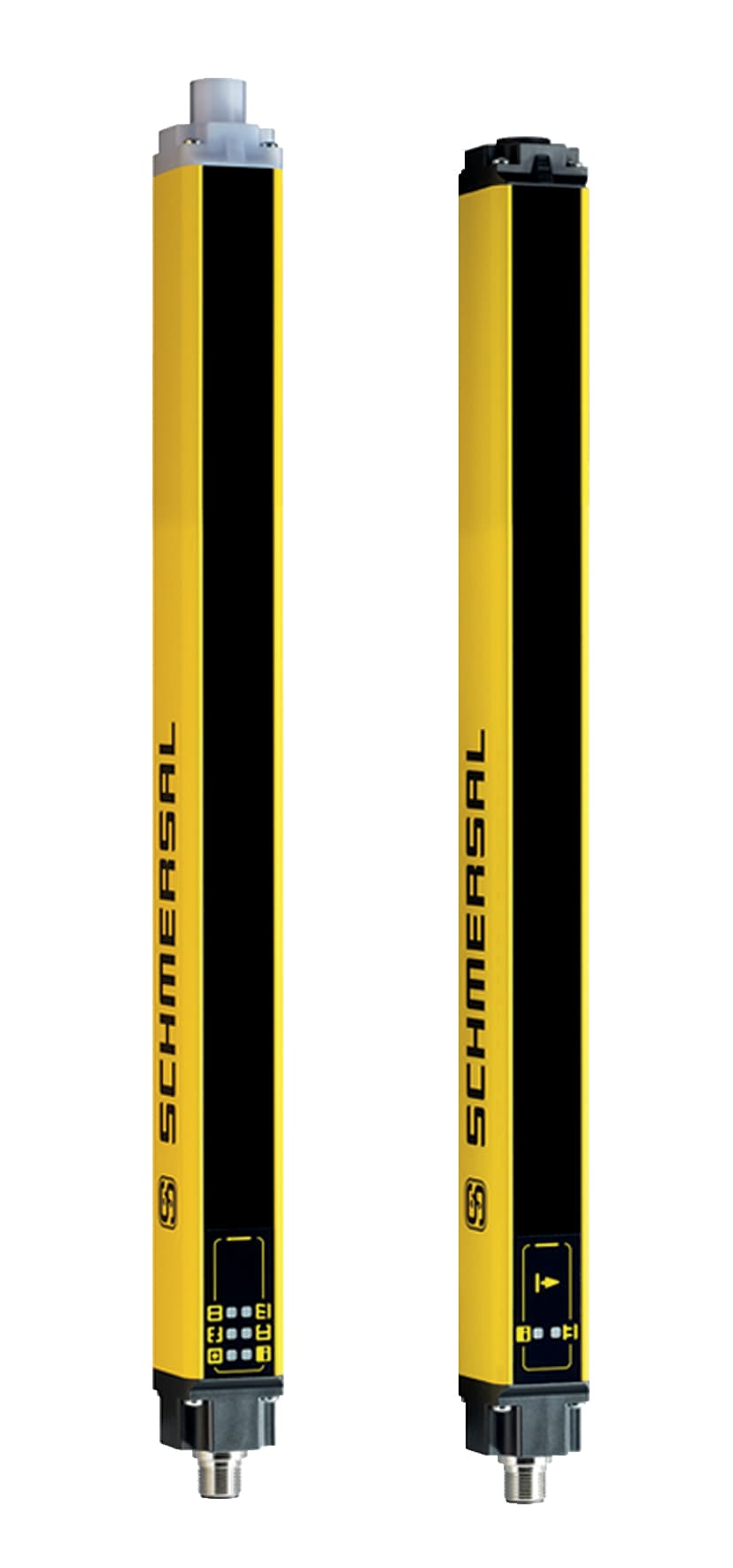

SLG445-ER-0800-03-01 Schmersal Safety Light Curtains

Product Details

• Length of cable, maximum
  100 m
• Output current, (fail-safe output), maximum
  0.25 A
• Versions
  p-type
• Voltage type
  DC (direct current)
• Electrical power consumption of the transmitter, maximum
  5 W
• Electrical power consumption of the receiver, maximum
  10 W
• Switching voltage OSSD, HIGH signal
  24 V
• Storage and transport temperature, maximum
  +70 °C
• Protection rating
  III
• Storage and transport temperature, minimum
  -25 °C
• Ambient temperature, maximum
  +50 °C
• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP67 to EN 60529
• Height of the Sensor (Transmitter)
  911 mm
• Height of the Sensor (Receiver)
  921 mm
• Width of sensor
  27.8 mm
• Terminal, Connector, Transmitter
  Connector plug M12, 4-pole
• Length of sensor
  33 mm
• Terminal connector, Recipient
  Connector plug M12, 12-pole
• Length of cable
  100 m
Terminal Connector
Connector
Wave length of the sensor
880 nm
Range, protection field, minimum
300 mm
Height of the protection field
800 mm
Detection ability for test bodies at v = 1.6 m/s
400 mm
Range, protection field, maximum
12,000 mm
Number of fail-safe digital outputs
2
Number of beams
3
Beam coding available
Yes
Restart interlock (manual reset)
Yes
Clock control possible
Yes
Override
Yes
Integral System Diagnostics
Yes
Reaction time, maximum
10 ms
Gross weight
1,480 g
Integral System Diagnostics, status
Yes
7-segment display
Yes
Muting function
Yes
Enclosure material
Aluminium
Standards
EN 61496-1, EN 61496-2, CLC/TS 61496-2
