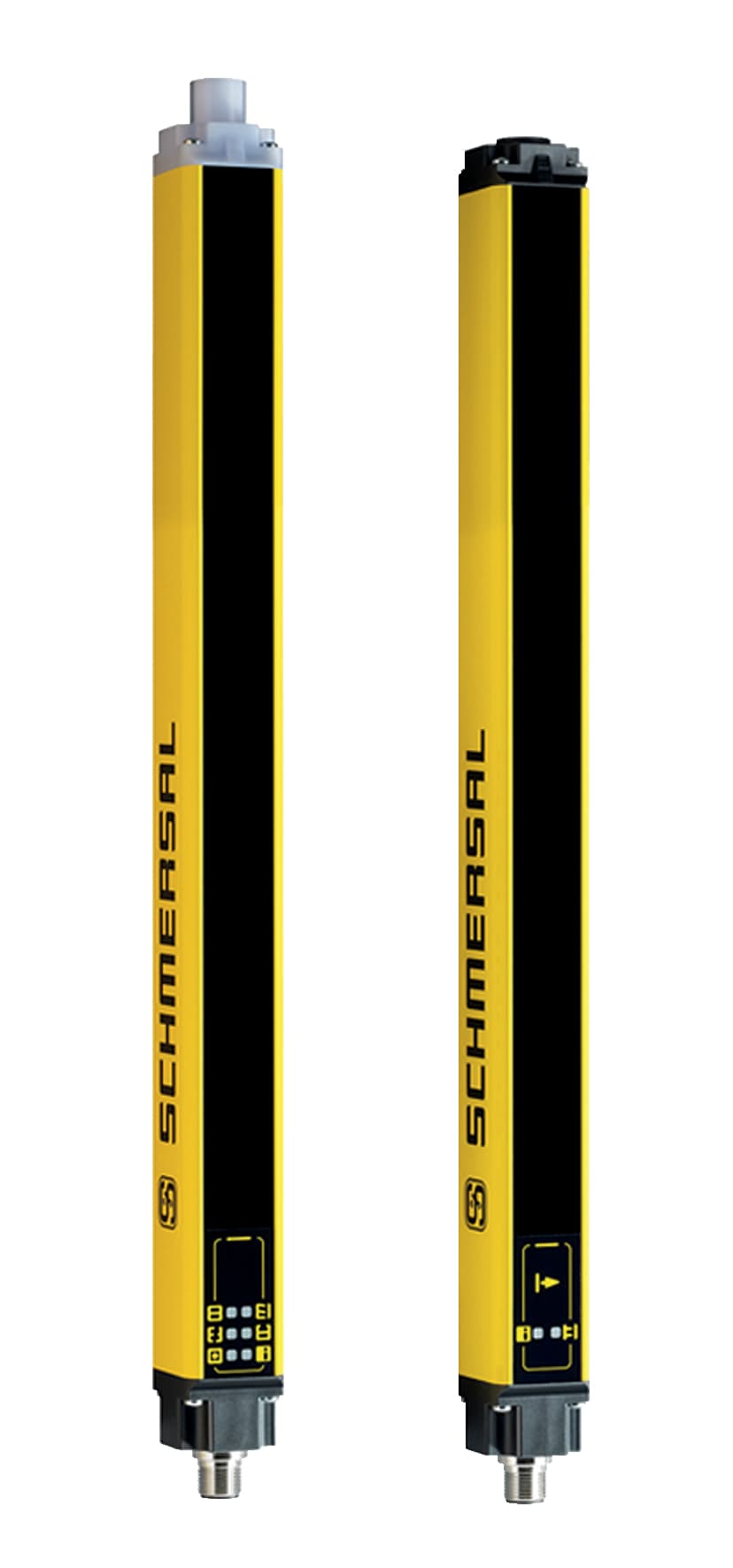

SLG445-ER-0500-02-01 Schmersal Safety Light Curtains

Product Details

• Versions
  p-type
• Length of cable, maximum
  100 m
• Output current, (fail-safe output), maximum
  0.25 A
• Electrical power consumption of the transmitter, maximum
  5 W
• Switching voltage OSSD, HIGH signal
  24 V
• Electrical power consumption of the receiver, maximum
  10 W
• Protection rating
  III
• Voltage type
  DC (direct current)
• Storage and transport temperature, maximum
  +70 °C
• Ambient temperature, minimum
  -25 °C
• Storage and transport temperature, minimum
  -25 °C
• Degree of protection
  IP67 to EN 60529
• Ambient temperature, maximum
  +50 °C
• Width of sensor
  27.8 mm
• Height of the Sensor (Transmitter)
  611 mm
• Height of the Sensor (Receiver)
  621 mm
• Length of sensor
  33 mm
• Range, protection field, minimum
  300 mm
• Terminal connector, Recipient
  Connector plug M12, 12-pole
• Terminal, Connector, Transmitter
  Connector plug M12, 4-pole
Range, protection field, maximum
12,000 mm
Length of cable
100 m
Wave length of the sensor
880 nm
Terminal Connector
Connector
Height of the protection field
500 mm
Number of fail-safe digital outputs
2
Detection ability for test bodies at v = 1.6 m/s
500 mm
Number of beams
2
Integral System Diagnostics
Yes
Standards
EN 61496-1, EN 61496-2, CLC/TS 61496-2
Gross weight
980 g
Beam coding available
Yes
Override
Yes
Enclosure material
Aluminium
Restart interlock (manual reset)
Yes
Muting function
Yes
Integral System Diagnostics, status
Yes
Clock control possible
Yes
7-segment display
Yes
Reaction time, maximum
10 ms
