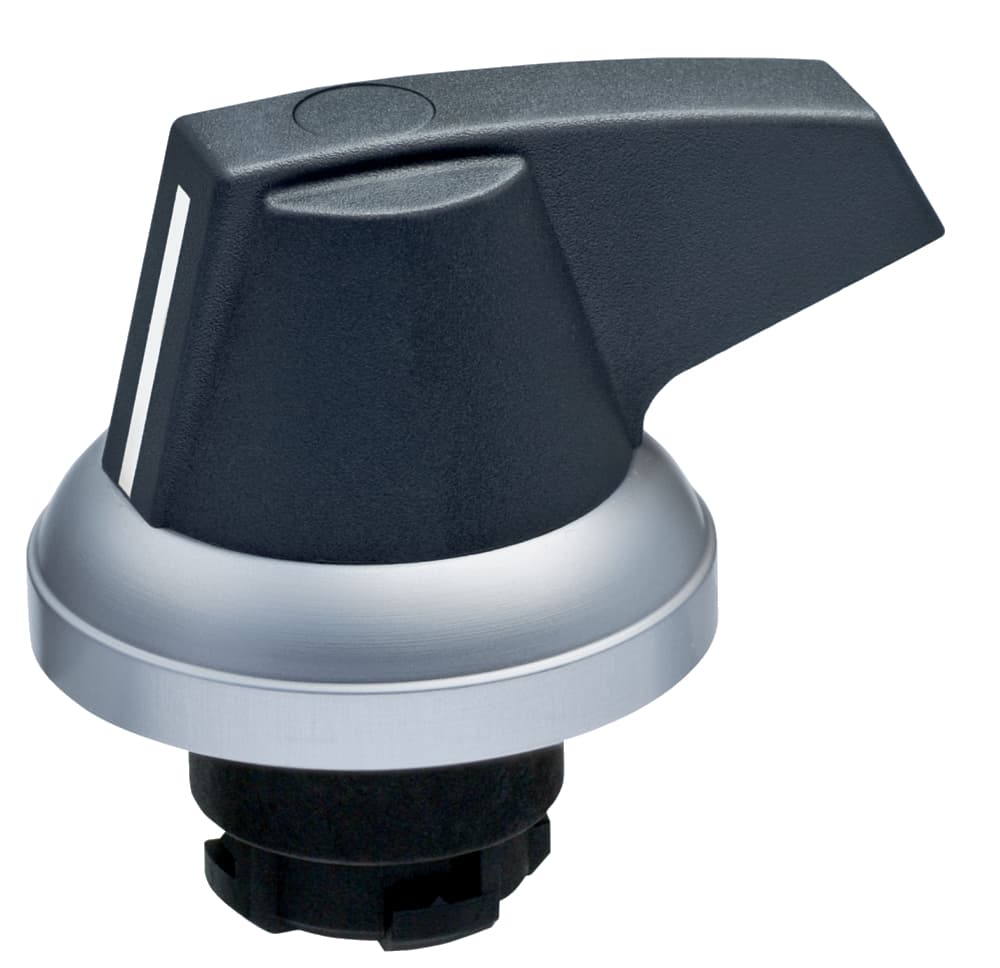

RWS32 Schmersal Selector Switches

Product Details

• Restistance to shock
  50 g
• Ambient temperature, maximum
  +75 °C
• Spacing
  50 x 60 mm
• Thickness of the front panel, maximum
  6 mm
• Ambient temperature, minimum
  +0 °C
• Degree of protection
  IP65
• Thickness, of the front panel, minimum
  1 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Length of the handle
  25 mm
• Diameter hole
  22.3 mm
• Diameter of the knob
  30 mm
• Diameter of the front ring
  39.5 mm
• Diameter total
  39.5 mm
• Tightening torque of the screw
  0.6 Nm
• Mounting
  Mounting flange EFM
• Switching angle, right
  55 °
• Switching angle, left
  55 °
• Latching position
  right, left
• Mechanical life, minimum
  300,000 Operations
• Fully insulated
  Yes
Number of switch positions
3
Unlocking
Rotating unlatcher
Number of plunger
2
Gross weight
50 g
Latching
Yes
Material of the front ring
Aluminium
Standards
EN 60947-5-1, IEC/EN 60947-1
Toggle
short
Versions
Selector switch - Front plate mounting
Sealing type
Membrane, Lip gaskets, Form seals
Installation conditions (mechanical)
arbitrarily
Colour of the handle
Grey
Colour of the front ring
Silver
Material of the operators
ABS
