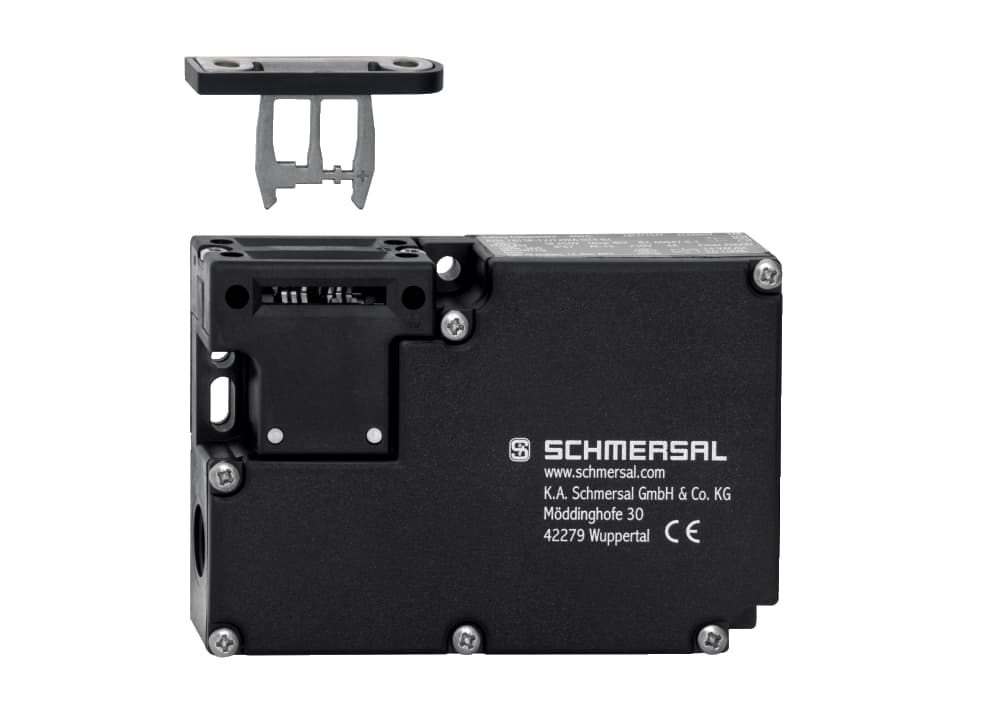

AZM 170SK-12/00ZRK-2197 24VAC/DC Schmersal Safety Switches

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  2 A
• Switching frequency
  1,000 /h
• Switching principle
  Creep circuit element
• Note (Switching element)
  Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
• Rated control voltage
  24 VAC/DC
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Switching element
  NO contact, NC contact
• Electrical power consumption, maximum
  10 W
• Thermal test current
  6 A
• Rated insulation voltage Ui
  250 V
• Rated impulse withstand voltage Uimp
  4 kV
• Ambient temperature, maximum
  +60 °C
• Degree of protection
  IP67 to EN 60529
• Ambient temperature, minimum
  -25 °C
• Height of sensor
  100.5 mm
• Width of sensor
  108 mm
• Length of sensor
  30 mm
• Cable section, maximum
  1 x 1.5 mm², flexible
• Cable section, minimum
  1 x 0.25 mm²
Terminal Connector
Screw terminals
Actuating speed, maximum
2 m/s
Positive break force, minimum
8.5 N
positive break travel
11 mm
Latching force
30 N
Clamping force in accordance with ISO14119 Fzh
1,000 N
Mechanical life, minimum
1,000,000 Operations
Number of safety contacts
2
Number of auxiliary contacts
1
Power to unlock
Yes
Number of actuating directions
2
Manual release
Yes
Gross weight
357 g
Material of the contacts, electrical
Silver
Standards
EN 60947-5-1, BG-GS-ET-19
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Active principle
electromechanical
Coding level according to ISO 14119
Low
