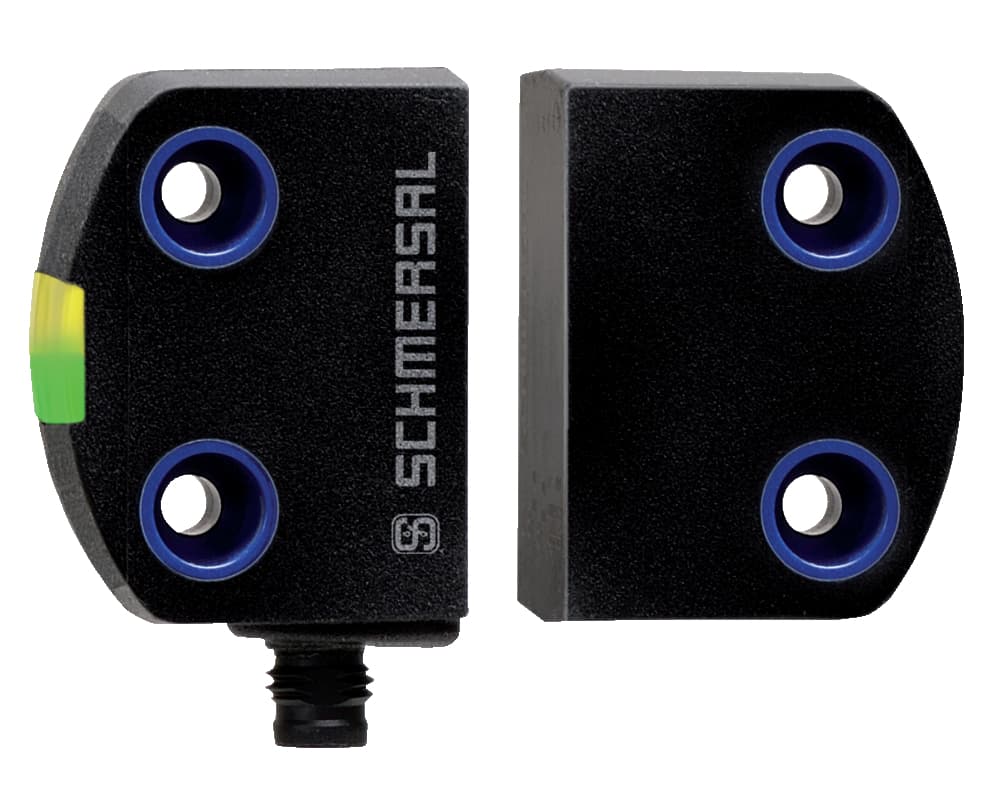

RSS260-I1-SD-ST Schmersal Safety Switches

Product Details

• Interfering radiation
  IEC 61000-6-4
• Operating current
  150 mA
• Voltage, Utilisation category DC13
  24 VDC
• Voltage drop Ud, maximum
  2 V
• Current leakage Ir
  0.5 mA
• Rated operating voltage
  24 VDC -15% / +10%
• Rated operating voltage, minimum
  20.4 VDC
• Overvoltage category
  III
• Ambient temperature, maximum
  +65 °C
• Restistance to shock
  30 g / 11 ms
• Terminal Connector
  Connector M8
• Note (Repeat accuracy R)
  Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle). Minimum clearance
• Number of LEDs
  3
• Serial diagnostics
  Yes
• Enclosure material
  Plastic, thermoplastic, self-extinguishing
• EMC rating
  IEC 60947-3
• Current, Utilisation category DC13
  0.25 A
• Current, Utilisation category DC12
  0.25 A
• Versions
  p-type
• Voltage, Utilisation category DC12
  24 VDC
Switching frequency, approx.
1 Hz
Required rated short-circuit current to EN 60947-5-1
100 A
Rated operating voltage, maximum
26.4 VDC
Voltage type
DC (direct current)
No-load supply current I0
100 mA
Degree of pollution to VDE 0100
3
Rated insulation voltage Ui
32 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Storage and transport temperature, maximum
+85 °C
Storage and transport temperature, minimum
-25 °C
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 1 mm
Ambient temperature, minimum
-25 °C
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Length of sensor
29.5 mm
Height of sensor
18 mm
Width of sensor
39.2 mm
Ensured switching distance ON, side
6 mm
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Ensured switch distance OFF Sar, lateral
15 mm
Ensured switching distance OFF, front
18 mm
Ensured switching distance ON, front
10 mm
Switch distance Sn
front 12 mm, lateral 9 mm
Cascadable
Yes
Repeat accuracy R R
0.5 mm
Mounting
A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
Actuating panels
lateral, front side
Hysteresis (Switch distance), maximum
2 mm
Number of fail-safe digital outputs
2
Number of semi-conductor outputs with signaling function
1
Integral System Diagnostics, status
Yes
Short-circuit recognition
Yes
Number of Series-wiring of sensors
31
Safety functions
Yes
Time to readiness, maximum
2,000 ms
Short circuit detection
Yes
Diagnostic output
Yes
Reaction time, maximum
100 ms
Duration of risk, maximum
200 ms
Gross weight
54 g
Standards
IEC 60947-5-3
Active principle
RFID
Sensor topology
Sensor for series wiring
general information
Individual coding
Coding level according to ISO 14119
High
Housing construction form
Block
Installation conditions (mechanical)
not flush
Active area
lateral, front
