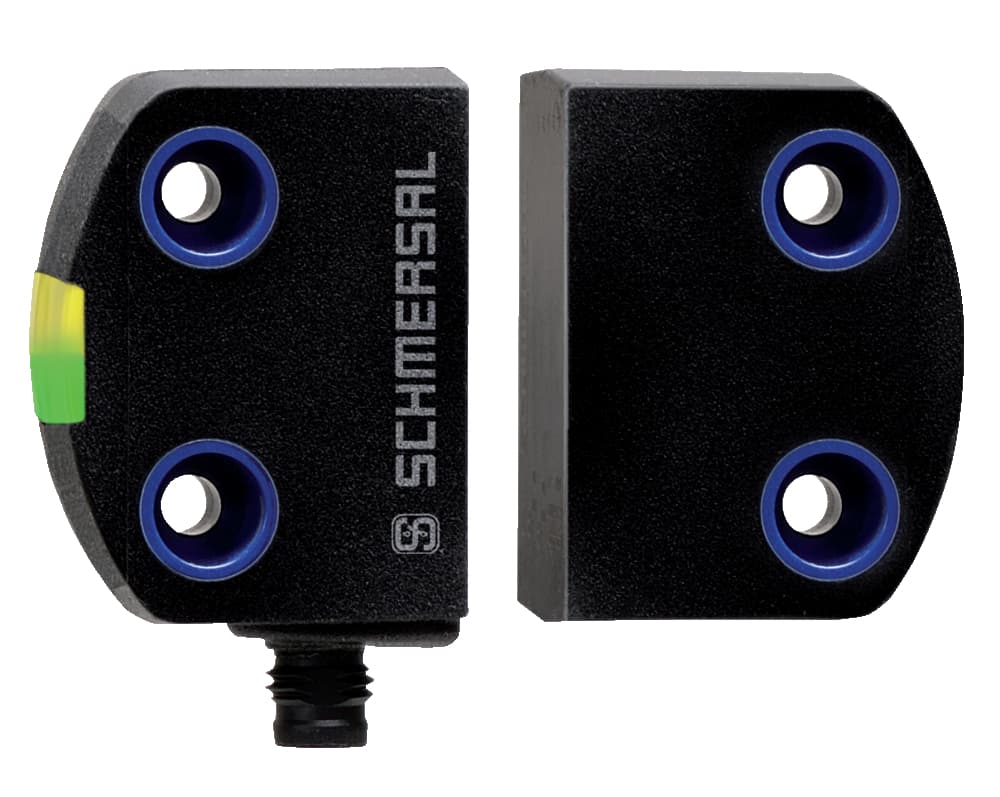

RSS260-I2-D-ST Schmersal Safety Switches

Product Details

• EMC rating
  IEC 60947-3
• Interfering radiation
  IEC 61000-6-4
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Current leakage Ir
  0.5 mA
• Versions
  p-type
• Switching frequency, approx.
  1 Hz
• Voltage drop Ud, maximum
  2 V
• Operating current
  50 mA
• Rated operating voltage, maximum
  26.4 VDC
• Rated operating voltage
  24 VDC -15% / +10%
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Rated operating voltage, minimum
  20.4 VDC
• No-load supply current I0
  100 mA
• Overvoltage category
  III
• Voltage type
  DC (direct current)
• Degree of pollution to VDE 0100
  3
• Rated impulse withstand voltage Uimp
  0.8 kV
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 1 mm
Storage and transport temperature, maximum
+85 °C
Ambient temperature, maximum
+65 °C
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Storage and transport temperature, minimum
-25 °C
Height of sensor
18 mm
Ambient temperature, minimum
-25 °C
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Terminal Connector
Connector M8
Ensured switching distance ON, front
10 mm
Length of sensor
29.5 mm
Ensured switch distance OFF Sar, lateral
15 mm
Width of sensor
39.2 mm
Ensured switching distance ON, side
6 mm
Ensured switching distance OFF, front
18 mm
Switch distance Sn
front 12 mm, lateral 9 mm
Note (Repeat accuracy R)
Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle). Minimum clearance
Hysteresis (Switch distance), maximum
2 mm
Mounting
A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
Integral System Diagnostics, status
Yes
Number of LEDs
3
Actuating panels
lateral, front side
Repeat accuracy R R
0.5 mm
Number of fail-safe digital outputs
2
Number of semi-conductor outputs with signaling function
1
Short-circuit recognition
Yes
Duration of risk, maximum
200 ms
Safety functions
Yes
Short circuit detection
Yes
Time to readiness, maximum
2,000 ms
Reaction time, maximum
100 ms
Diagnostic output
Yes
Cascadable
Yes
Gross weight
61 g
Active area
lateral, front
Standards
IEC 60947-5-3
Active principle
RFID
Housing construction form
Block
Sensor topology
Sensor for series wiring
Coding level according to ISO 14119
High
Enclosure material
Plastic, thermoplastic, self-extinguishing
Installation conditions (mechanical)
not flush
general information
Individual coding, multiple teaching
