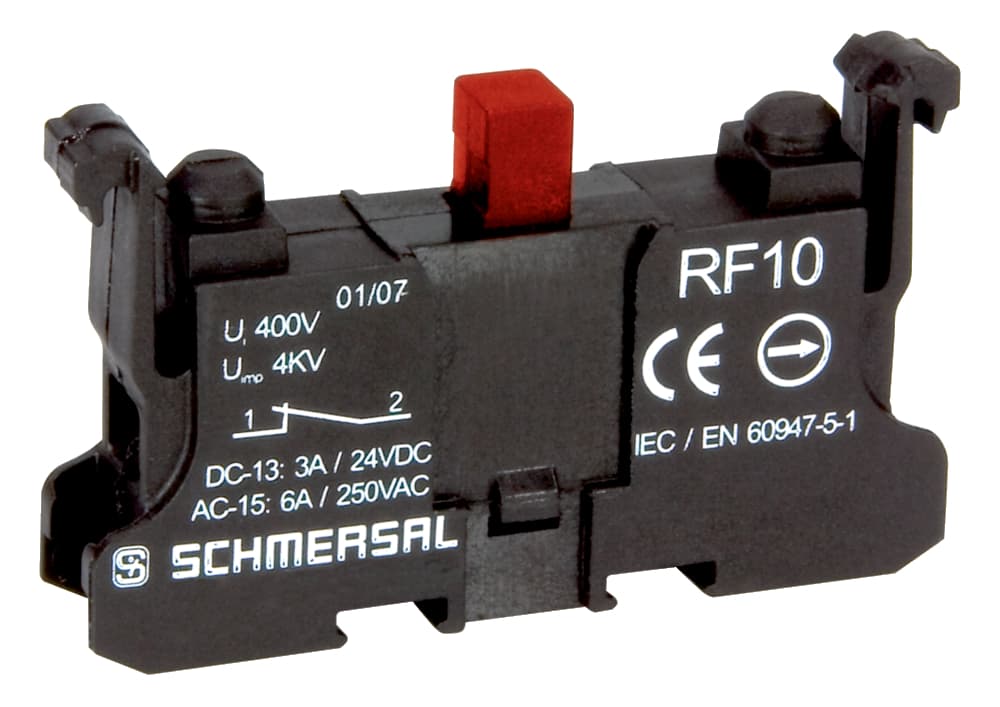

RF10 Schmersal Safety Accessories

Product Details

• Switching frequency
  1,200 /h
• Switching principle
  Slow action
• Switching element
  Opener (NC)
• Utilisation category DC-13
  24 VDC
• Suitable for low-voltages
  ≥ 5 V / ≥ 1 mA
• Utilisation category AC-15
  6 A
• Rated insulation voltage Ui
  400 V
• Ambient temperature, maximum
  +75 °C
• Thermal test current
  10 A
• Rated impulse withstand voltage Uimp
  4 kV
• Width
  9 mm
• Ambient temperature, minimum
  -25 °C
• Degree of protection of the switch rooms
  IP40
• Degree of protection of clips or terminals
  IP20
• Height
  25.5 mm
• Cable section, maximum
  2.5 mm², rigid, 1.5 mm², flexible
• Length
  44 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Tightening torque of Clips
  1 Nm
• Mounting flange position
  1; 2; 3
Terminal Connector
Screw connection
Cable section, minimum
0.5 mm², rigid, 0.5 mm², flexible
Contact opening
1 mm
Mechanical life, minimum
10,000,000 Operations
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Number of openers
1
Installation instructions
pluggable
positive break travel
2 mm
Material of the contacts, electrical
Silver
Contact labelling
1-2
Gross weight
20 g
Standards
EN 60947-5-1, IEC/EN 60947-1
