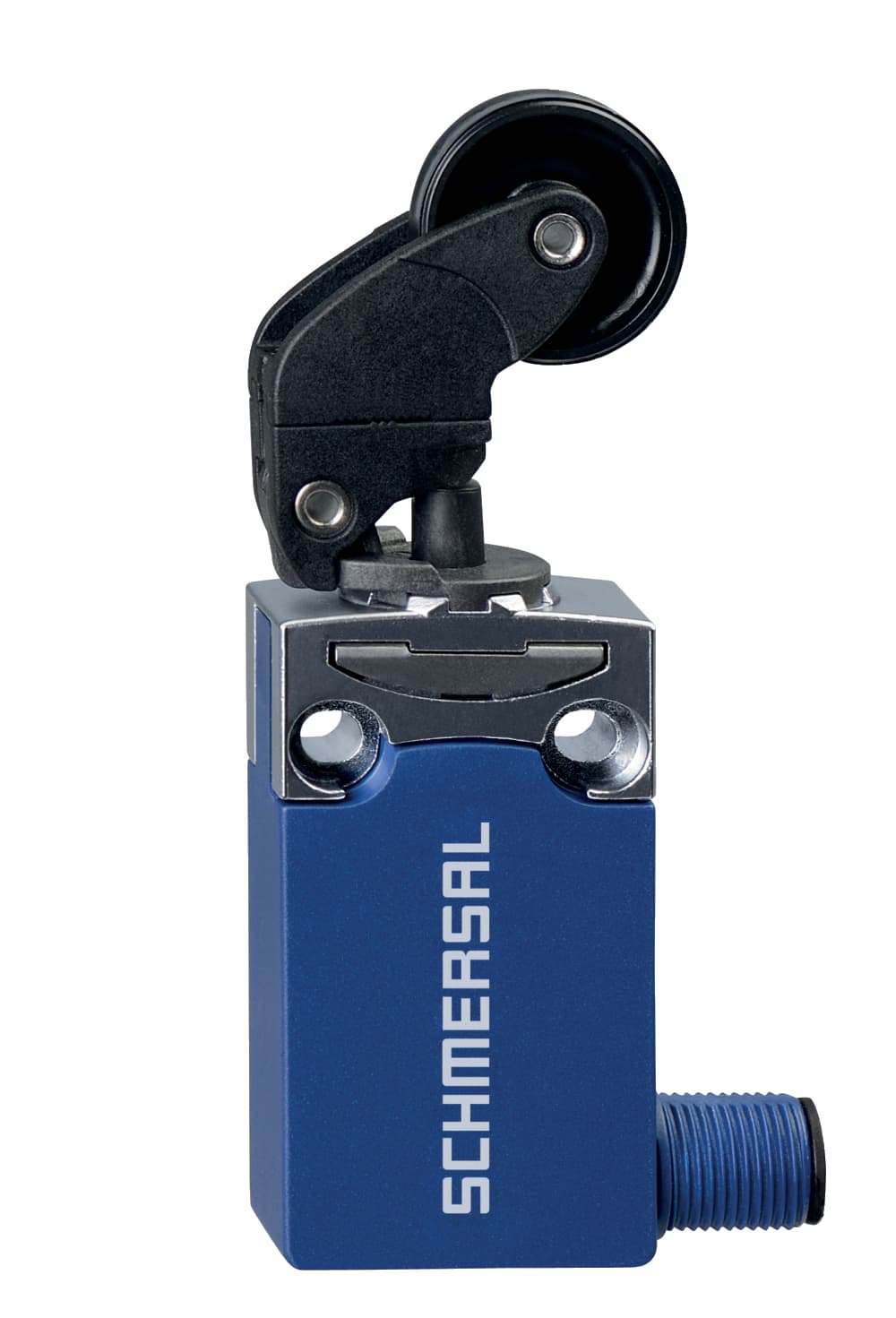

PS116-Z12-STR-K240 Schmersal Safety Switches

Bounce duration, maximum-

Switching frequency-

Switching element-

Utilisation category AC-15-

Required rated short-circuit current to EN 60947-5-1-

Rated impulse withstand voltage Uimp-

Thermal test current-

Rated insulation voltage Ui-

Length of sensor-

Degree of protection-

Width of sensor-

Actuating torque, minimum-

Enclosure material-

Switchover time, maximum-

Switching principle-

Utilisation category DC-13-

Ambient temperature, minimum-

Ambient temperature, maximum-

Height of sensor-

Diameter of Castor-

Terminal Connector-

Positive break torque-

Actuating speed, minimum-

Actuating speed, maximum-

Positive break force, minimum-

Actuating force, minimum-

Mechanical life, minimum-

Actuating element-

Standards-

Material of the contacts, electrical-

Number of safety contacts-

Terminal (mechanical)-

Housing construction form-

Safety functions-

Gross weight-

Number of auxiliary contacts-

Country Of Origin-

Key and tap-

Oil-tight seal-

Brake-

Speed-

Shape-

Encoder type-

Capacity-

Voltage-

Supply voltage and phase-

Bounce duration, maximum3 ms

Switching frequency5,000 /h

Switching elementNO contact, NC contact

Utilisation category AC-151.5 A

Required rated short-circuit current to EN 60947-5-1400 A

Rated impulse withstand voltage Uimp0.8 kV

Thermal test current2 A

Rated insulation voltage Ui30 V

Length of sensor16.6 mm

Degree of protectionIP66, IP67

Width of sensor31 mm

Actuating torque, minimum0.2 Nm

Enclosure materialPlastic, glass-fibre reinfor...

Switchover time, maximum5.5 ms

Switching principleSnap switch element

Utilisation category DC-1324 VDC

Ambient temperature, minimum-30 °C

Ambient temperature, maximum+80 °C

Height of sensor95.5 mm

Diameter of Castor22 mm

Terminal ConnectorConnector M12, 6-pole

Positive break torque0.6 Nm

Actuating speed, minimum56 mm/min

Actuating speed, maximum1 m/s

Positive break force, minimum40 N

Actuating force, minimum6 N

Mechanical life, minimum10,000,000 Operations

Actuating elementAngle roller lever K240

StandardsIEC 60947-5-1

Material of the contacts, electricalSilver

Number of safety contacts2

Terminal (mechanical)right

Housing construction formNorm construction design

Safety functionsYes

Gross weight63.5 g

Number of auxiliary contacts1

Country Of Origin-

Key and tap-

Oil-tight seal-

Brake-

Speed-

Shape-

Encoder type-

Capacity-

Voltage-

Supply voltage and phase-

Bounce duration, maximum-

Switching frequency-

Switching element-

Utilisation category AC-15-

Required rated short-circuit current to EN 60947-5-1-

Rated impulse withstand voltage Uimp-

Thermal test current-

Rated insulation voltage Ui-

Length of sensor-

Degree of protection-

Width of sensor-

Actuating torque, minimum-

Enclosure material-

Switchover time, maximum-

Switching principle-

Utilisation category DC-13-

Ambient temperature, minimum-

Ambient temperature, maximum-

Height of sensor-

Diameter of Castor-

Terminal Connector-

Positive break torque-

Actuating speed, minimum-

Actuating speed, maximum-

Positive break force, minimum-

Actuating force, minimum-

Mechanical life, minimum-

Actuating element-

Standards-

Material of the contacts, electrical-

Number of safety contacts-

Terminal (mechanical)-

Housing construction form-

Safety functions-

Gross weight-

Number of auxiliary contacts-

Country Of OriginJapan

Key and tapYes

Oil-tight sealNo

BrakeNo

Speed3000 rpm

ShapeCylindrical

Encoder typeIncremental

Capacity50 W

Voltage120/240 VAC

Supply voltage and phase1-phase 120 VAC, 1-phase and...
