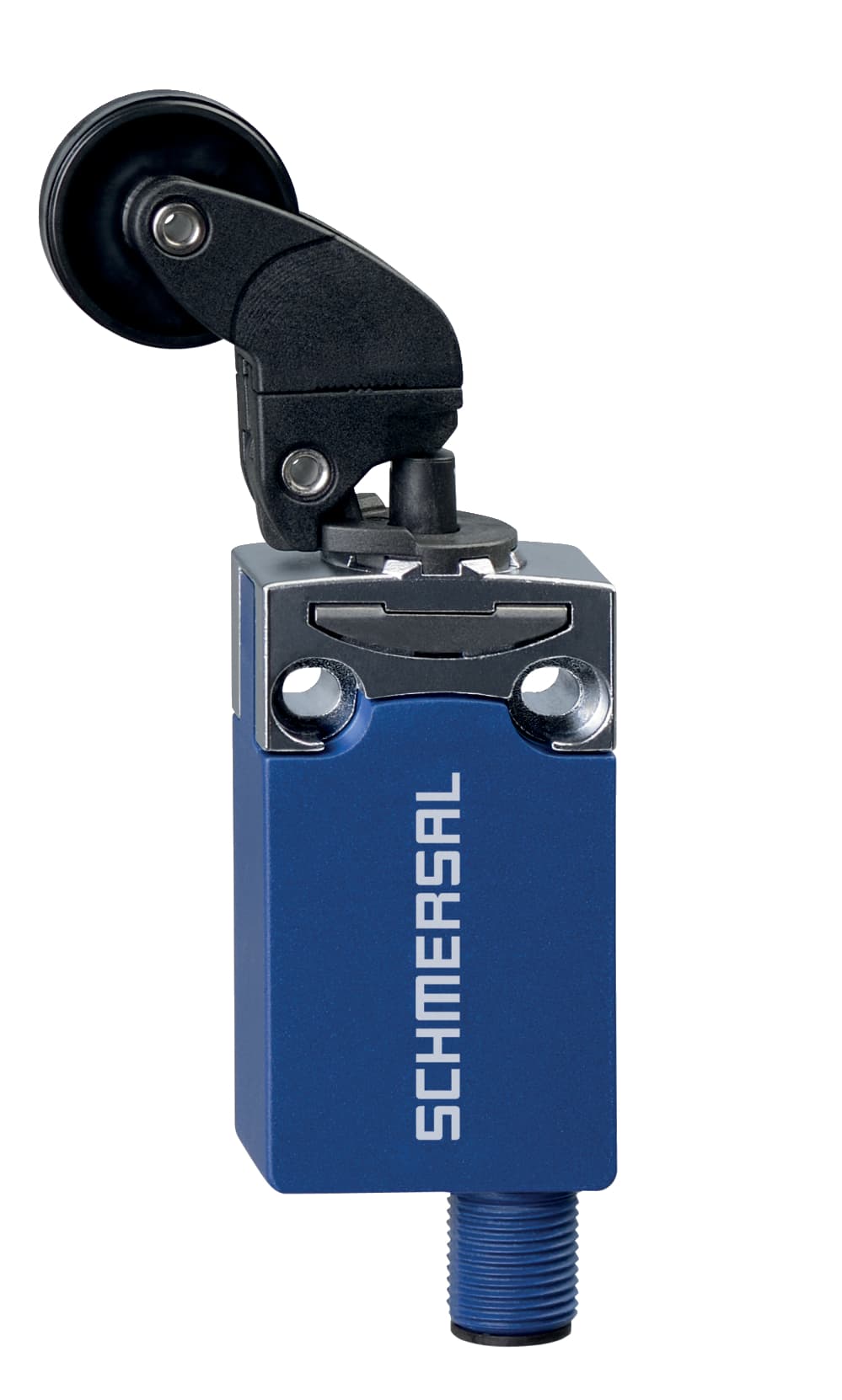

PS116-Z12-ST-K250 Schmersal Safety Switches

Switchover time, maximum-

Switching frequency-

Switching principle-

Bounce duration, maximum-

Switching element-

Utilisation category DC-13-

Utilisation category AC-15-

Thermal test current-

Required rated short-circuit current to EN 60947-5-1-

Rated insulation voltage Ui-

Rated impulse withstand voltage Uimp-

Ambient temperature, maximum-

Ambient temperature, minimum-

Number of auxiliary contacts-

Terminal (mechanical)-

Safety functions-

Width of sensor-

Diameter of Castor-

Degree of protection-

Height of sensor-

Length of sensor-

Actuating speed, maximum-

Number of safety contacts-

Material of the contacts, electrical-

Terminal Connector-

Actuating torque, minimum-

Positive break torque-

Actuating speed, minimum-

Standards-

Positive break force, minimum-

Actuating force, minimum-

Mechanical life, minimum-

Actuating element-

Housing construction form-

Enclosure material-

Gross weight-

Country Of Origin-

Key and tap-

Oil-tight seal-

Brake-

Speed-

Shape-

Encoder type-

Capacity-

Voltage-

Supply voltage and phase-

Switchover time, maximum5.5 ms

Switching frequency5,000 /h

Switching principleSnap switch element

Bounce duration, maximum3 ms

Switching elementNO contact, NC contact

Utilisation category DC-131.5 A

Utilisation category AC-151.5 A

Thermal test current2 A

Required rated short-circuit current to EN 60947-5-1400 A

Rated insulation voltage Ui30 V

Rated impulse withstand voltage Uimp0.8 kV

Ambient temperature, maximum+80 °C

Ambient temperature, minimum-30 °C

Number of auxiliary contacts1

Terminal (mechanical)bottom

Safety functionsYes

Width of sensor31 mm

Diameter of Castor22 mm

Degree of protectionIP66, IP67

Height of sensor95.5 mm

Length of sensor16.6 mm

Actuating speed, maximum1 m/s

Number of safety contacts2

Material of the contacts, electricalSilver

Terminal ConnectorConnector M12, 6-pole

Actuating torque, minimum0.2 Nm

Positive break torque0.6 Nm

Actuating speed, minimum44 mm/min

StandardsIEC 60947-5-1

Positive break force, minimum40 N

Actuating force, minimum6 N

Mechanical life, minimum10,000,000 Operations

Actuating elementAngle roller lever K250

Housing construction formNorm construction design

Enclosure materialPlastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Gross weight210 g

Country Of Origin-
