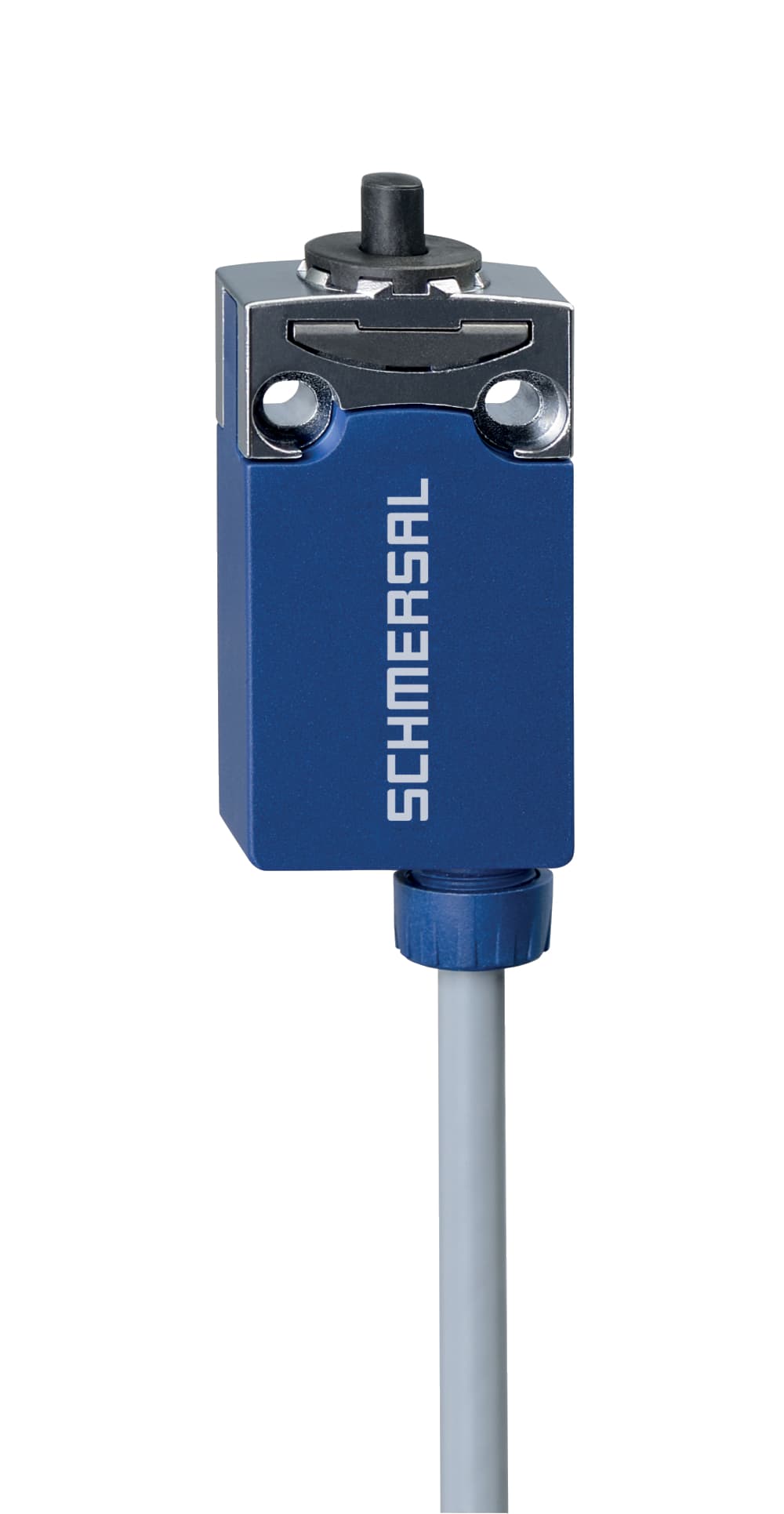

PS116-T11-L200-S200 Schmersal Safety Switches

Bounce duration, maximum-

Switching frequency-

Switchover time, maximum-

Switching element-

Utilisation category DC-13-

Thermal test current-

Required rated short-circuit current to EN 60947-5-1-

Switching principle-

Utilisation category AC-15-

Rated impulse withstand voltage Uimp-

Rated insulation voltage Ui-

Ambient temperature, maximum-

Height of sensor-

Degree of protection-

Ambient temperature, minimum-

Width of sensor-

Cable type-

Length of sensor-

Number of pre-wired cable-

Wire cross-section-

Length of cable-

Terminal Connector-

Actuating speed, maximum-

Positive break force, minimum-

Mechanical life, minimum-

Actuating element-

Actuating force, minimum-

Actuator type to DIN EN 50047-

Actuating speed, minimum-

Number of safety contacts-

Safety functions-

Terminal (mechanical)-

Enclosure material-

Number of auxiliary contacts-

Housing construction form-

Gross weight-

Material of the contacts, electrical-

Standards-

Mounting-

Cable Length-

Overall length (mm)-

Threaded length (mm)-

Output-

Case material-

Connection-

Size-

Operation-

Shielded-

Supply voltage-

Sensing Distance-

Country Of OriginJapan

Key and tapYes

Oil-tight sealNo

BrakeNo

Speed3000 rpm

ShapeCylindrical

Encoder typeIncremental

Capacity50 W

Voltage120/240 VAC

Supply voltage and phase1-phase 120 VAC, 1-phase and...

Bounce duration, maximum3 ms

Switching frequency5,000 /h

Switchover time, maximum5.5 ms

Switching elementNO contact, NC contact

Utilisation category DC-131.5 A

Thermal test current5 A

Required rated short-circuit current to EN 60947-5-11,000 A

Switching principleCreep circuit element

Utilisation category AC-153 A

Rated impulse withstand voltage Uimp4 kV

Rated insulation voltage Ui300 V

Ambient temperature, maximum+80 °C

Height of sensor64 mm

Degree of protectionIP66, IP67

Ambient temperature, minimum-30 °C

Width of sensor31 mm

Cable typeLiYY

Length of sensor16.6 mm

Number of pre-wired cable4

Wire cross-section0.5 mm2

Length of cable2 m

Terminal ConnectorCable, 4-pole

Actuating speed, maximum0.5 m/s

Positive break force, minimum40 N

Mechanical life, minimum10,000,000 Operations

Actuating elementplunger S200

Actuating force, minimum10 N

Actuator type to DIN EN 50047B

Actuating speed, minimum60 mm/min

Number of safety contacts1

Safety functionsYes

Terminal (mechanical)bottom

Enclosure materialPlastic, glass-fibre reinfor...

Number of auxiliary contacts1

Housing construction formNorm construction design

Gross weight88.8 g

Material of the contacts, electricalSilver

StandardsIEC 60947-5-1
