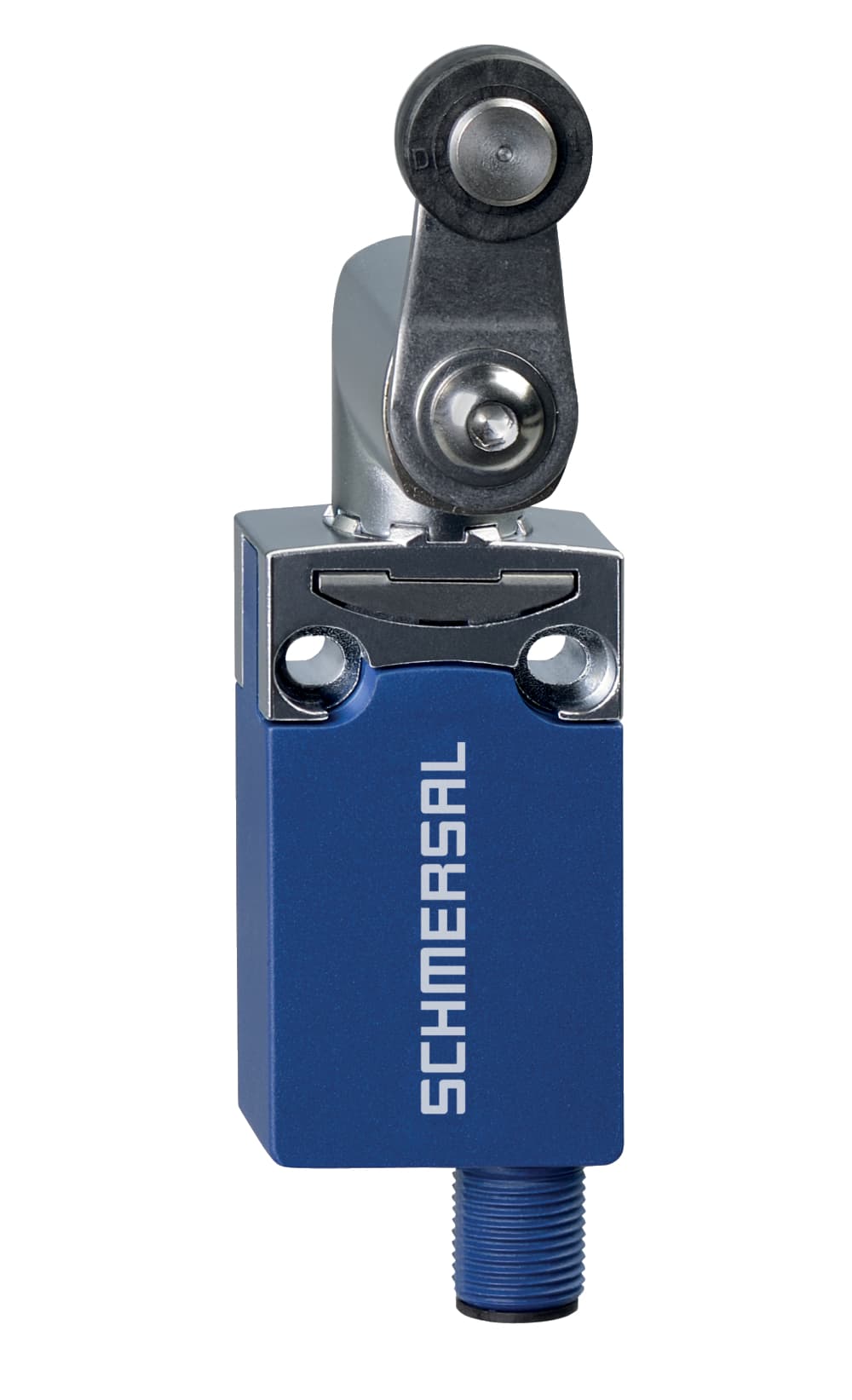

PS116-T11-ST-H200 Schmersal Safety Switches

Utilisation category DC-13-

Switchover time, maximum-

Switching principle-

Required rated short-circuit current to EN 60947-5-1-

Rated insulation voltage Ui-

Degree of protection-

Thermal test current-

Diameter of Castor-

Height of sensor-

Actuating speed, minimum-

Actuating torque, minimum-

Number of safety contacts-

Actuator type to DIN EN 50047-

Gross weight-

Housing construction form-

Bounce duration, maximum-

Standards-

Switching frequency-

Safety functions-

Switching element-

Utilisation category AC-15-

Rated impulse withstand voltage Uimp-

Ambient temperature, minimum-

Ambient temperature, maximum-

Width of sensor-

Enclosure material-

Length of the lever-

Length of sensor-

Positive break torque-

Terminal Connector-

Terminal (mechanical)-

Mechanical life, minimum-

Actuating speed, maximum-

Actuating element-

Material of the contacts, electrical-

Number of auxiliary contacts-

Country Of Origin-

Key and tap-

Oil-tight seal-

Brake-

Speed-

Shape-

Encoder type-

Capacity-

Voltage-

Supply voltage and phase-

Utilisation category DC-1324 VDC

Switchover time, maximum5.5 ms

Switching principleCreep circuit element

Required rated short-circuit current to EN 60947-5-11,000 A

Rated insulation voltage Ui300 V

Degree of protectionIP66, IP67

Thermal test current2.5 A

Diameter of Castor16 mm

Height of sensor101 mm

Actuating speed, minimum492 mm/min

Actuating torque, minimum0.2 Nm

Number of safety contacts1

Actuator type to DIN EN 50047A

Gross weight126 g

Housing construction formNorm construction design

Bounce duration, maximum3 ms

StandardsIEC 60947-5-1

Switching frequency5,000 /h

Safety functionsYes

Switching elementNO contact, NC contact

Utilisation category AC-151.5 A

Rated impulse withstand voltage Uimp2.5 kV

Ambient temperature, minimum-30 °C

Ambient temperature, maximum+80 °C

Width of sensor31 mm

Enclosure materialPlastic, glass-fibre reinfor...

Length of the lever24 mm

Length of sensor16.6 mm

Positive break torque0.6 Nm

Terminal ConnectorConnector M12, 4-pole

Terminal (mechanical)bottom

Mechanical life, minimum10,000,000 Operations

Actuating speed, maximum1 m/s

Actuating elementRoller lever H200

Material of the contacts, electricalSilver

Number of auxiliary contacts1
