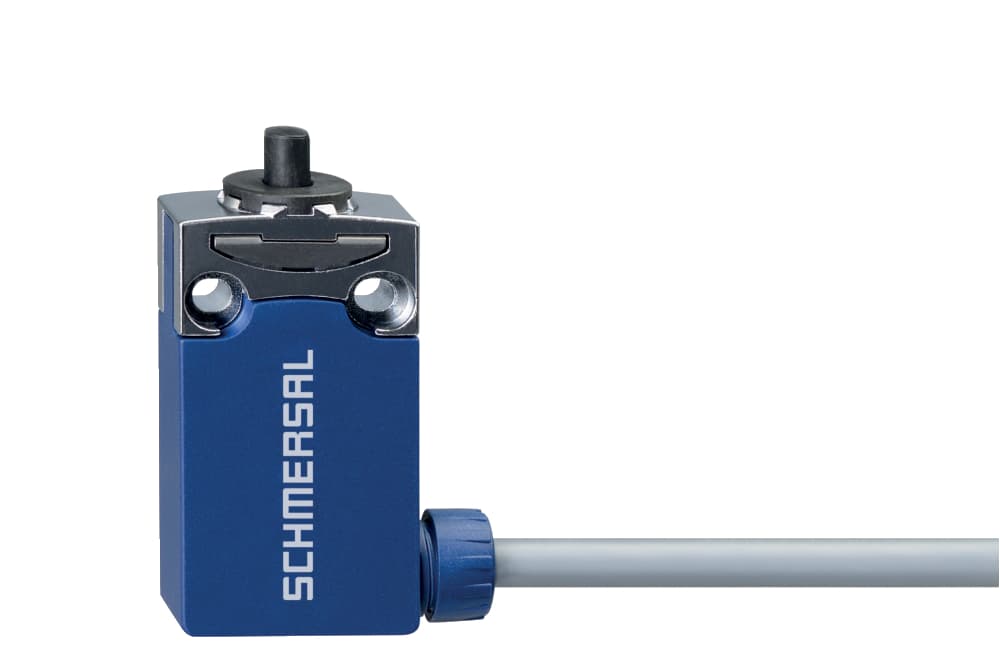

PS116-Z12-LR200-S200 Schmersal Safety Switches
Part#:PS116-Z12-LR200-S200
Alt. Part#:103006587
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS116-Z12-LR200-S200 Schmersal - Safety rated limit switch
Product Details
- Switchover time, maximum 5.5 ms
- Switching element NO contact, NC contact
- Thermal test current 5 A
- Housing construction form Norm construction design
- Switching frequency 5,000 /h
- Bounce duration, maximum 3 ms
- Switching principle Snap switch element
- Utilisation category DC-13 1.5 A
- Utilisation category AC-15 240 VAC
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Rated impulse withstand voltage Uimp 4 kV
- Ambient temperature, maximum +80 °C
- Ambient temperature, minimum -30 °C
- Rated insulation voltage Ui 300 V
- Cable type LiYY
- Terminal (mechanical) right
- Degree of protection IP66, IP67
- Height of sensor 64 mm
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Actuator type to DIN EN 50047 B
- Width of sensor 31 mm
- Safety functions Yes
- Length of sensor 16.6 mm
- Wire cross-section 0.5 mm2
- Terminal Connector Cable, 6-pole
- Length of cable 2 m
- Actuating speed, maximum 0.5 m/s
- Number of auxiliary contacts 1
- Actuating speed, minimum 10 mm/min
- Positive break force, minimum 40 N
- Material of the contacts, electrical Silver
- Actuating force, minimum 10 N
- Gross weight 199 g
- Actuating element plunger S200
- Mechanical life, minimum 10,000,000 Operations
- Number of safety contacts 2
- Standards IEC 60947-5-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS116-Z12-LR200-S200 on Applied Automation is $85.00. Order now.
PS116-Z12-LR200-S200 Related Documents
This item can ship within 1 day!
Manufacturer warranty
PS116-Z12-LR200-S200 Schmersal
$85.00
Your price can be lower.
Log in or Create account to check your discount
Stock:
Select Qty:
$85.00
$85.00 each
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of PS116-Z12-LR200-S200?
Purchase the PS116-Z12-LR200-S200 from Applied Automation at the price of $85.00. Order today.
Out if stock but available for backorder.
PS116-Z12-LR200-S200 Schmersal - Safety rated limit switch
