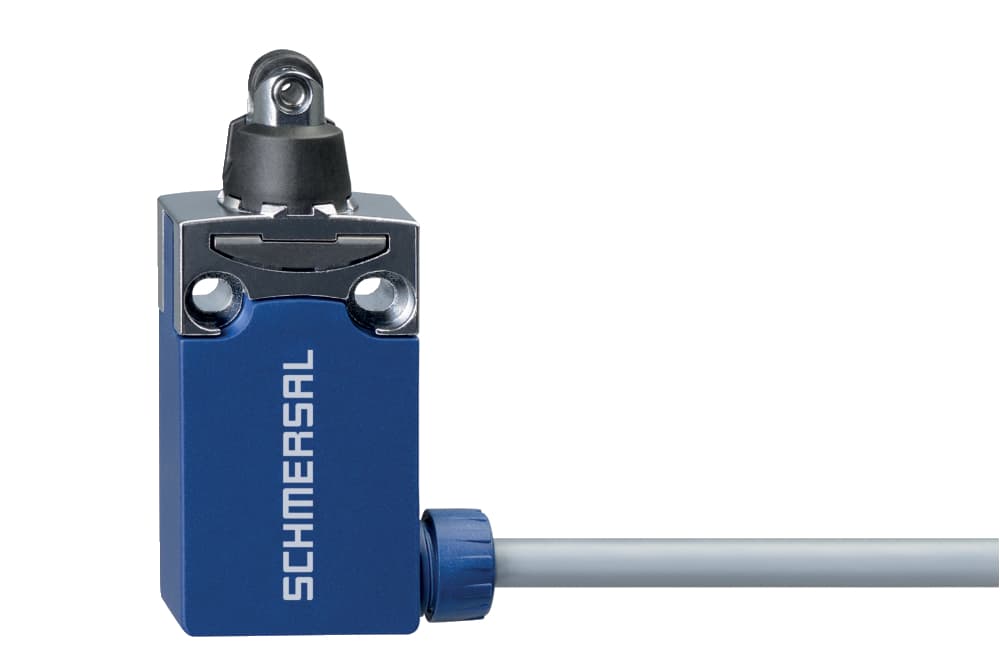

PS116-Z11-LR200-R200 Schmersal Safety Switches
Part#:PS116-Z11-LR200-R200
Alt. Part#:103006565
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS116-Z11-LR200-R200 Schmersal - Position switch; PS116; Pre-wired cable right, 2; Snap action 1 Normally open contact (NO) / 1 Opener (NC); Thermoplastic enclosure; Symmetric enclosure; Protection class IP66, IP67; plastic roller Ø 9,5 mm
Product Details
- Switchover time, maximum 5.5 ms
- Utilisation category DC-13 1.5 A
- Degree of protection IP66, IP67
- Switching element NO contact, NC contact
- Bounce duration, maximum 3 ms
- Switching frequency 5,000 /h
- Switching principle Snap switch element
- Utilisation category AC-15 3 A
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Thermal test current 5 A
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 300 V
- Ambient temperature, maximum +80 °C
- Diameter of Castor 9.5 mm
- Height of sensor 74.1 mm
- Length of sensor 16.6 mm
- Wire cross-section 0.5 mm2
- Ambient temperature, minimum -30 °C
- Width of sensor 31 mm
- Cable type LiYY
- Length of cable 2 m
- Actuating speed, maximum 0.5 m/s
- Actuating speed, minimum 20 mm/min
- Terminal Connector Cable, 4-pole
- Actuating element Roller plunger R200
- Actuating force, minimum 10 N
- Mechanical life, minimum 10,000,000 Operations
- Positive break force, minimum 40 N
- Number of safety contacts 1
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
- Housing construction form Norm construction design
- Standards IEC 60947-5-1
- Safety functions Yes
- Actuator type to DIN EN 50047 c
- Gross weight 176.7 g
- Material of the contacts, electrical Silver
- Number of auxiliary contacts 1
- Terminal (mechanical) right
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
