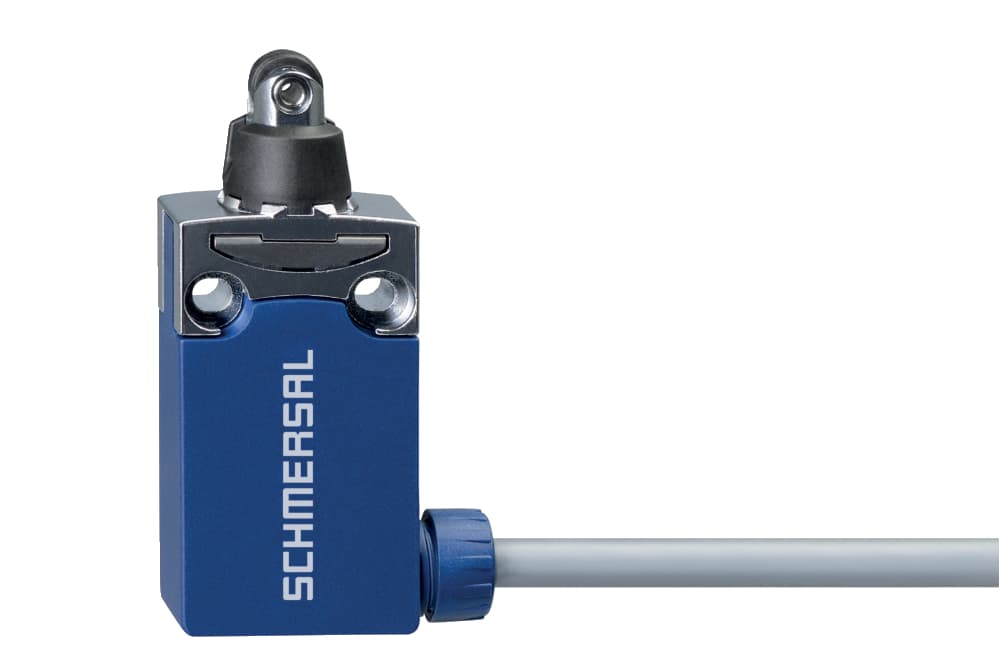

PS116-T21-LR200-R200 Schmersal Safety Switches

Height of sensor-

Cable type-

Actuating speed, maximum-

Material of the contacts, electrical-

Bounce duration, maximum-

Switchover time, maximum-

Switching frequency-

Switching principle-

Switching element-

Utilisation category DC-13-

Required rated short-circuit current to EN 60947-5-1-

Thermal test current-

Utilisation category AC-15-

Rated insulation voltage Ui-

Rated impulse withstand voltage Uimp-

Ambient temperature, maximum-

Diameter of Castor-

Degree of protection-

Ambient temperature, minimum-

Width of sensor-

Wire cross-section-

Actuating element-

Length of sensor-

Terminal Connector-

Mechanical life, minimum-

Actuating force, minimum-

Length of cable-

Standards-

Positive break force, minimum-

Actuating speed, minimum-

Number of safety contacts-

Enclosure material-

Actuator type to DIN EN 50047-

Number of auxiliary contacts-

Safety functions-

Gross weight-

Housing construction form-

Terminal (mechanical)-

Mounting-

Cable Length-

Overall length (mm)-

Threaded length (mm)-

Output-

Case material-

Connection-

Size-

Operation-

Shielded-

Supply voltage-

Sensing Distance-

Country Of OriginJapan

Key and tapYes

Oil-tight sealNo

BrakeNo

Speed3000 rpm

ShapeCylindrical

Encoder typeIncremental

Capacity50 W

Voltage120/240 VAC

Supply voltage and phase1-phase 120 VAC, 1-phase and 3-phase 240 VAC

Height of sensor74.1 mm

Cable typeLiYY

Actuating speed, maximum0.5 m/s

Material of the contacts, electricalSilver

Bounce duration, maximum3 ms

Switchover time, maximum5.5 ms

Switching frequency5,000 /h

Switching principleCreep circuit element

Switching elementNO contact, NC contact

Utilisation category DC-1324 VDC

Required rated short-circuit current to EN 60947-5-11,000 A

Thermal test current5 A

Utilisation category AC-153 A

Rated insulation voltage Ui30 V

Rated impulse withstand voltage Uimp4 kV

Ambient temperature, maximum+80 °C

Diameter of Castor9.5 mm

Degree of protectionIP66, IP67

Ambient temperature, minimum-30 °C

Width of sensor31 mm

Wire cross-section0.5 mm2

Actuating elementRoller plunger R200

Length of sensor16.6 mm

Terminal ConnectorCable, 6-pole

Mechanical life, minimum10,000,000 Operations

Actuating force, minimum10 N

Length of cable2 m

StandardsIEC 60947-5-1

Positive break force, minimum40 N

Actuating speed, minimum10 mm/min

Number of safety contacts1

Enclosure materialPlastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated

Actuator type to DIN EN 50047c

Number of auxiliary contacts2

Safety functionsYes

Gross weight140 g

Housing construction formNorm construction design

Terminal (mechanical)right
