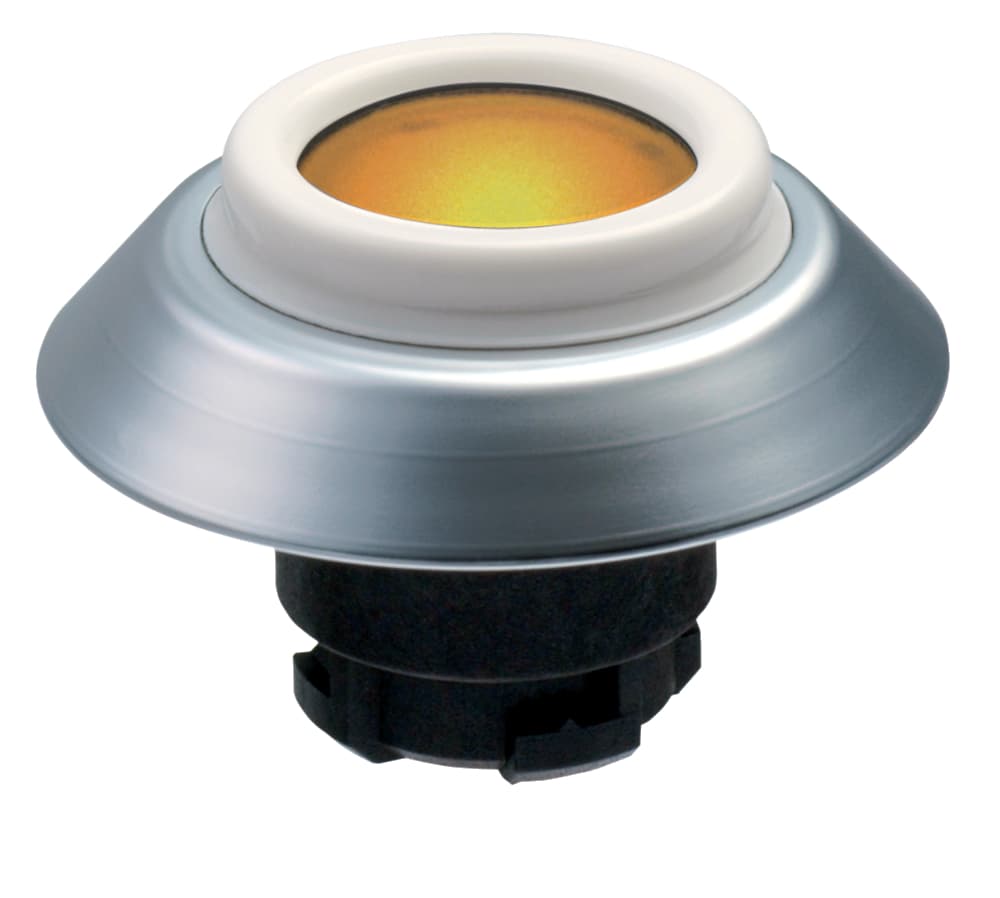

NDLWS/504D Schmersal Pushbuttons

Product Details

• Ambient temperature, maximum
  +80 °C
• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP67, IP69K
• Spacing
  50 x 50 mm
• Thickness of the front panel, maximum
  6 mm
• Thickness, of the front panel, minimum
  1.5 mm
• Diameter of the front ring
  44.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Diameter hole
  22.3 mm
• Diameter of touch surface
  27 mm
• Diameter total
  44.5 mm
• Tightening torque of the screw
  0.6 Nm
• Height
  11 mm
• Colour of the bellows
  White
• Colour of the front ring
  Silver
• Unlocking
  without
• Mounting
  Mounting flange ELM
• Actuating stroke
  5 mm
• Illuminable
  Yes
• Design
  Round
Fully insulated
Yes
Sealing type
Membrane, Lip gaskets
Gross weight
30 g
Material of the front ring
ABS, chrome-plated
Versions
Embeddable button - Front plate mounting
Mounting flange
Yes
Standards
EN 60947-5-1, IEC/EN 60947-1
Probing possible
Yes
Material of the operators
ABS
Colour of the operating element
White
