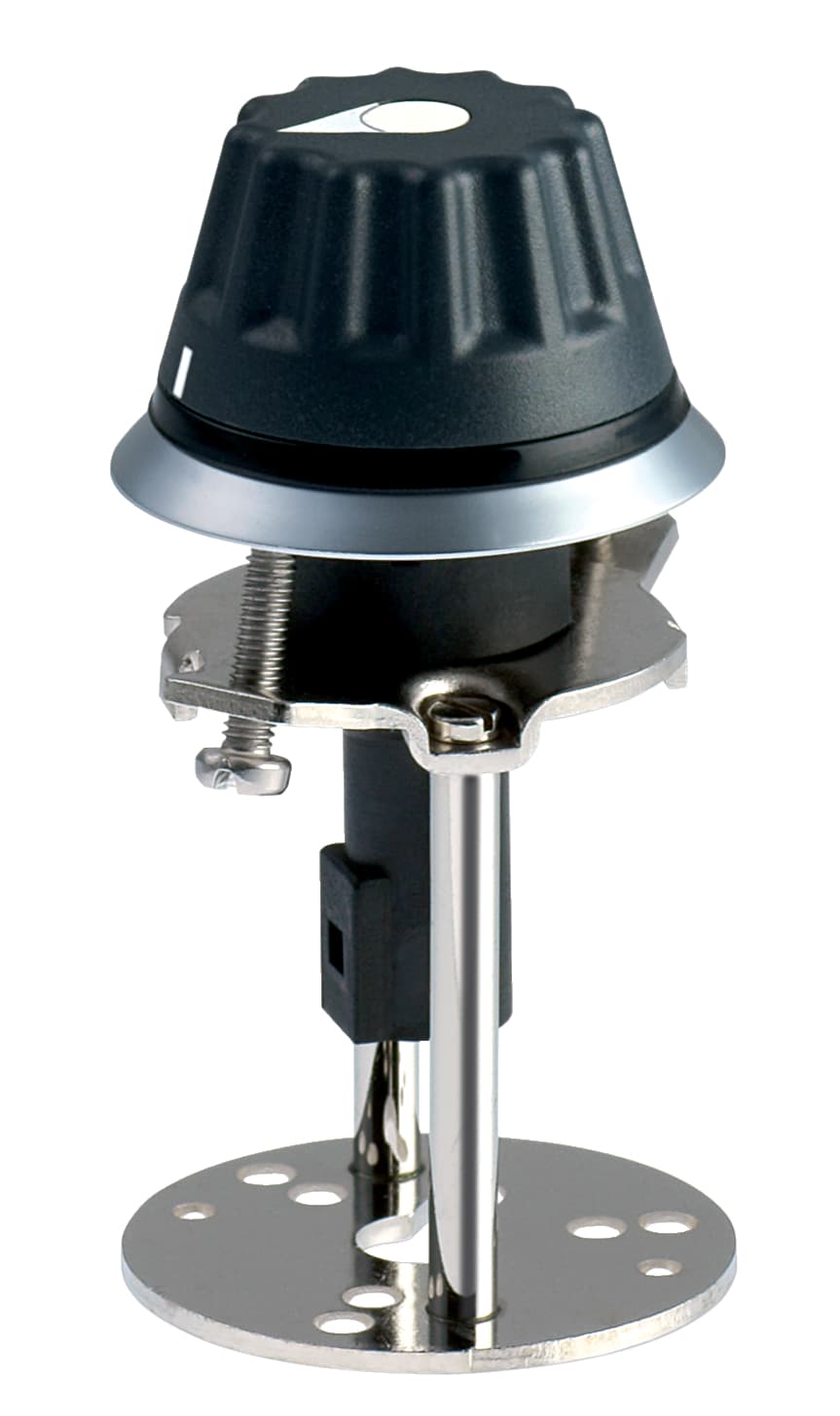

NDAN6WS Schmersal Pilot Devices Accessories

Product Details

• Ambient temperature, minimum
  +0 °C
• Shaft length
  30 … 40 mm
• Thickness of the front panel, maximum
  6 mm
• Spacing
  50 x 60 mm
• Degree of protection
  IP67, IP69K
• Diameter of shaft, maximum
  6 mm
• Ambient temperature, maximum
  +80 °C
• Thickness, of the front panel, minimum
  1.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Diameter hole
  22.3 mm
• Mounting depth
  63 mm
• Height
  26 mm
• Tightening torque of the screw
  0.6 Nm
• Mounting
  mounting flange
• Diameter of the front ring
  44.5 mm
• Diameter of the rotary button
  26 mm
• Mounting flange
  Yes
• Fully insulated
  Yes
• Standards
  IEC 60947-5-1, IEC/EN 60947-1
• Colour of the rotary button
  White
Colour of the front ring
White
Gross weight
50 g
Versions
Rotating knob
Sealing type
Membrane, Lip gaskets
Material of the front ring
ABS chrome-plated
Material of the potentiometer socket
Brass, nickel-plated / stainless steel
Material of the rotary button
ABS
