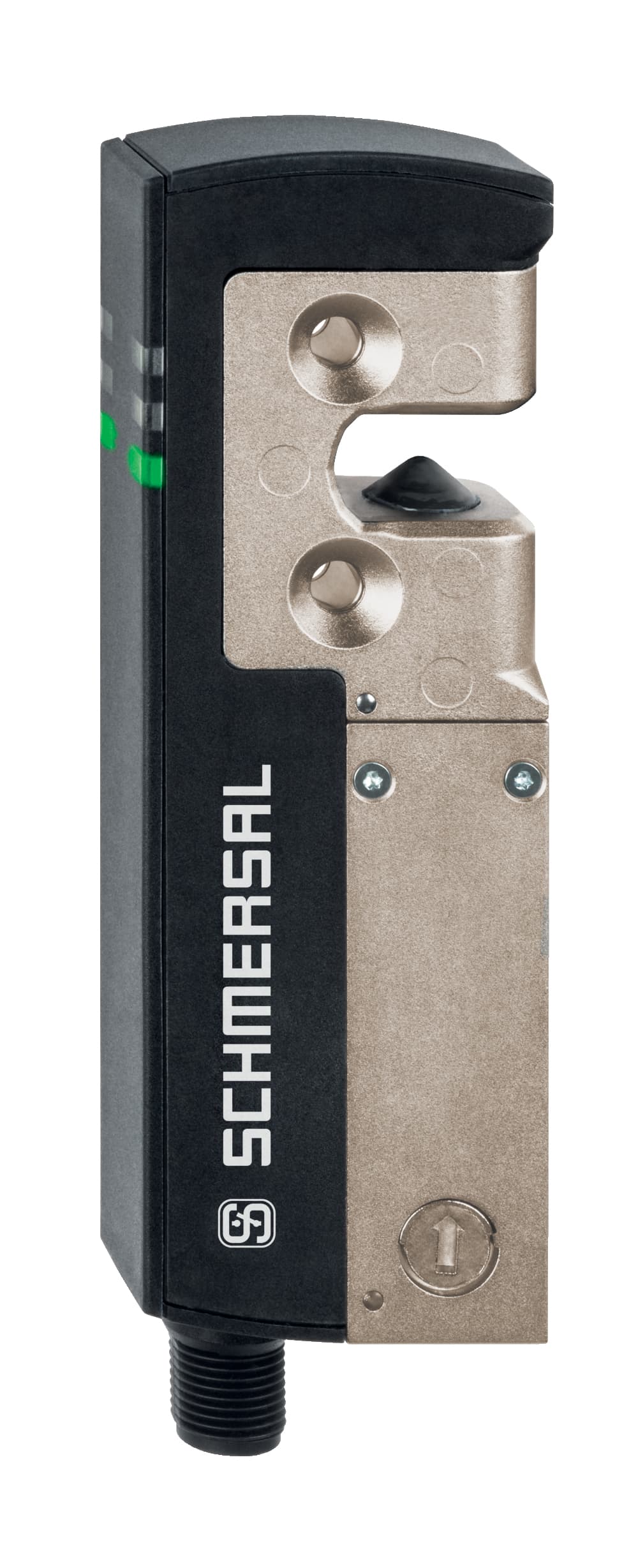

AZM40B-I2-ST-1P2P Schmersal Safety Switches

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Current leakage Ir
  0.5 mA
• Current, Utilisation category DC12
  0.05 A
• Versions
  short-circuit proof, p-type
• Voltage drop Ud, maximum
  2 V
• Rated operating current (safety outputs)
  250 mA
• Classification ZVEI CB24I, Source
  C2
• Classification ZVEI CB24I, Sink
  C1, C2
• Current consumption at 24V
  5 mA
• Current consumption solenoid at switching moment, peak
  600 mA / 100ms
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Switching frequency, maximum
  0.3 Hz
• Operating current
  1,200 mA
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Note
  Cable length and cable section alter the voltage drop depending on the output current
• Rated operating voltage
  24 VDC - 15 % / + 10 % (stabilised PELV)
• No-load supply current I0
  100 mA
• Degree of pollution to VDE 0100
  3
Rated impulse withstand voltage Uimp
0.8 kV
Overvoltage category
III
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 1 mm
Storage and transport temperature, maximum
+85 °C
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Protection rating
III
Storage and transport temperature, minimum
-40 °C
Ambient temperature, maximum
+55 °C
Ambient temperature, minimum
+0 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Height of sensor
20 mm
Length of sensor
119.5 mm
Width of sensor
40 mm
Terminal Connector
Connector M12, 8-pole, A-coded
Ensured switch distance OFF Sar
8 mm
Ensured switch distance ON Sao
1 mm
Type of the fixing screws
2 x M5 (Counter sunk screw)
Latching force
40 N
Clamping force, maximum Fmax
2,600 N
Actuating speed, maximum
0.5 m/s
Clamping force in accordance with ISO14119 Fzh
2,000 N
Interlocking principle
bistable
Mechanical life, minimum
200,000 Operations
Integral System Diagnostics, status
Yes
Number of safety contacts
2
Latching
Yes
Short-circuit recognition
Yes
Series-wiring
Yes
Short circuit detection
Yes
Standards
IEC 61508, EN 60947-5-3, EN ISO 13849-1
Manual release
Yes
Safety functions
Yes
Actuator monitored
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Reaction time, maximum
100 ms
Time to readiness, maximum
4,000 ms
Active principle
RFID
Duration of risk, maximum
200 ms
Coding level according to ISO 14119
High
Gross weight
270 g
general information
Individual coding, multiple teaching
Enclosure material
Glass-fibre, reinforced thermoplastic and light-alloy diecast
