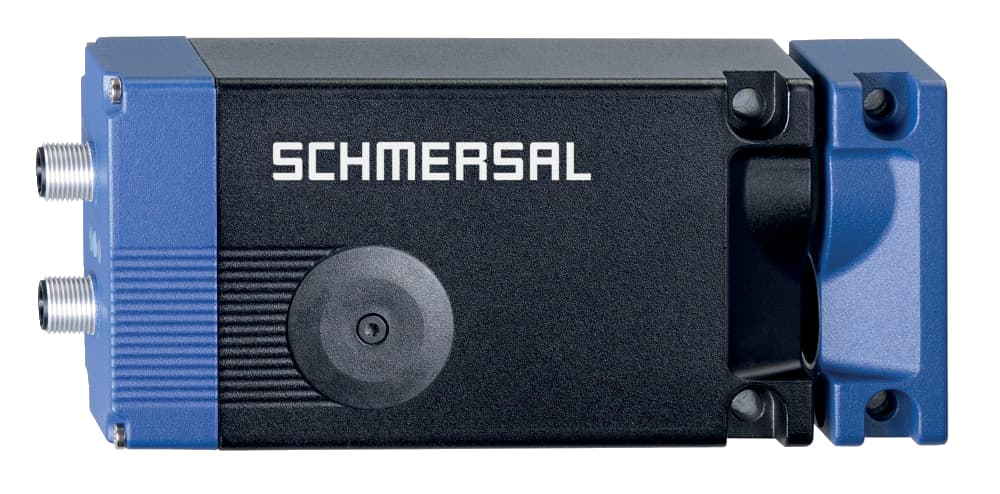

AZM400Z-ST2-2P2P-BOW-E Schmersal Safety Accessories

Product Details

• Voltage drop Ud, maximum
  2 V
• Versions
  short-circuit proof, p-type
• Voltage, Utilisation category DC12
  24 VDC
• Classification ZVEI CB24I, Sink
  C1, C2
• Switching frequency, approx.
  0.3 Hz
• Current consumption, maximum
  600 mA
• Degree of pollution to VDE 0100
  3
• Storage and transport temperature, minimum
  -40 °C
• Length of sensor
  46.7 mm
• Note (Mechanical lifetime)
  Which have a lateral force Ftrans = 100 N: 100.000 operations
• Note
  The diagnostic output are not safety relevant outputs!
• Current, Utilisation category DC12
  0.05 A
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Rated operating current (safety outputs)
  250 mA
• Switching thresholds of the control inputs
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Current leakage Ir
  1.5 mA
• Classification ZVEI CB24I, Source
  C2
• Allowable discrepancy time (input), maximum
  10 s
• Open / close cycle (Motor), minimum
  3
Minimal average cycle time (with continuous operation)
20 s
Required rated short-circuit current to EN 60947-5-1
100 A
Operating current
50 mA
No-load supply current I0
100 mA
Rated operating voltage
24 VDC
Current consumption at 24V, minimum
10 mA
Current consumption at 24V, maximum
15 mA
Operating Current
100 mA
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Storage and transport temperature, maximum
+85 °C
Ambient temperature, minimum
-20 °C
Ambient temperature, maximum
+55 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Width of sensor
77.8 mm
Height of sensor
166.7 mm
Terminal Connector
2 connector M12, 8 and 5 pin
Tightening torque of the fixing screws Bowden cable
1.2 Nm
Tightening torque of the screw
8 Nm
Clamping force in accordance with ISO14119 Fzh
10,000 N
Note (Lateral force at bolt return)
Does not apply to emergency exit, Bowden cable and manual release
Lateral force at bolt return, maximal (against locked door)
300 N
Minimum distance devices
30 mm
Clamping force, maximum Fmax
13,000 N
Mechanical life, minimum
1,000,000 Operations
Interlocking principle
bistable
Number of safety contacts
2
Number of diagnostic signals
2
Integral System Diagnostics, status
Yes
Short circuit detection
Yes
Electronic manual release
Yes
Safety functions
Yes
Short-circuit recognition
Yes
Securing holes for Bowden cable assembly
Yes
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
Gross weight
860.1 g
Active principle
Magnetic field, RFID
Guard locking monitored
Yes
Coding level according to ISO 14119
Low
Enclosure material
Light alloy die-casting
general information
Universal coding
Time to readiness, maximum
1,500 ms
Reaction time, maximum
100 ms
