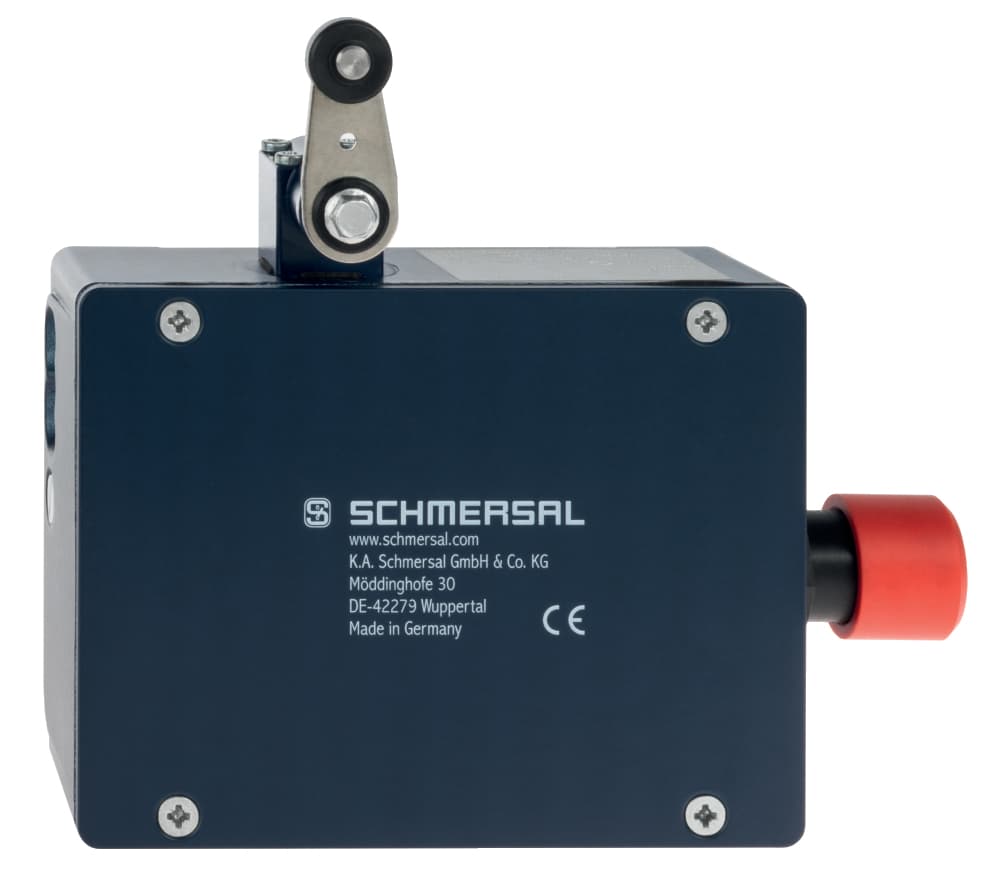

AZM 415-22XPK14H-9725 24 VAC/DC Schmersal Safety Switch Interlocks
Part#:AZM 415-22XPK14H-9725 24 VAC/DC
Manufacturer:Schmersal
Alt. Part#:101136087
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlocks; Metal enclosure; Interlock with protection against incorrect locking.; Robust design; Long life; 2 cable entries M 20 x 1.5; Cut clamp termination
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switch Interlocks that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 415-22XPK14H-9725 24 VAC/DC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching principle Creep circuit element
- Switching element NO contact, NC contact
- Electrical power consumption, maximum 10 W
- Utilisation category AC-15 230 VAC
- Rated control voltage 24 VAC/DC
- Utilisation category DC-13 24 VDC
- Thermal test current 6 A
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 250 V
- Ambient temperature, maximum +50 °C
- Cable section, minimum 2 x 0.75 mm²
- Height of sensor 120 mm
- Length of sensor 50 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Degree of protection IP54
- Ambient temperature, minimum -25 °C
- Cable section, maximum 2 x 2.5 mm²
- Terminal Connector Screw connection
- Actuating speed, maximum 0.2 m/s
- Positive break force, minimum 15 N
- Latching force, maximum 400 N
- positive break travel 5 mm
- Latching force, minimum 150 N
- Mechanical life, minimum 1,000,000 Operations
- Clamping force in accordance with ISO14119 Fzh 3,500 N
- Number of safety contacts 2
- Number of guard doors 1
- Number of actuating directions 1
- Number of auxiliary contacts 2
- Material of the contacts, electrical Silver
- Enclosure material Aluminium
- Active principle electromechanical
- Power to unlock Yes
- Gross weight 985 g
- Enclosure coating material painted
- Standards EN 60947-5-1, BG-GS-ET-19
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
