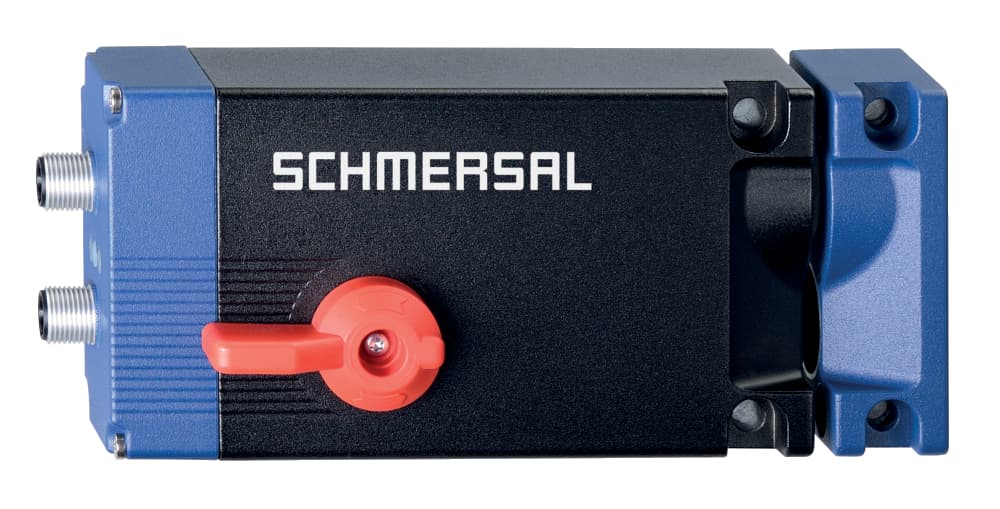

AZM400Z-ST2-2P2P-T-E Schmersal Safety Accessories

Product Details

• Versions
  short-circuit proof, p-type
• Note
  The diagnostic output are not safety relevant outputs!
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Current leakage Ir
  1.5 mA
• Current, Utilisation category DC12
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Classification ZVEI CB24I, Source
  C2
• Voltage drop Ud, maximum
  2 V
• Rated operating current (safety outputs)
  250 mA
• Allowable discrepancy time (input), maximum
  10 s
• Minimal average cycle time (with continuous operation)
  20 s
• Switching thresholds of the control inputs
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Classification ZVEI CB24I, Sink
  C1, C2
• Open / close cycle (Motor), minimum
  3
• Switching frequency, approx.
  0.3 Hz
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Operating current
  50 mA
• Current consumption at 24V, maximum
  15 mA
• Rated operating voltage
  24 VDC
Current consumption at 24V, minimum
10 mA
No-load supply current I0
100 mA
Operating Current
100 mA
Current consumption, maximum
600 mA
Degree of pollution to VDE 0100
3
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Protection rating
III
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Rated impulse withstand voltage Uimp
0.8 kV
Ambient temperature, minimum
-20 °C
Ambient temperature, maximum
+55 °C
Storage and transport temperature, minimum
-40 °C
Storage and transport temperature, maximum
+85 °C
Width of sensor
77.8 mm
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Height of sensor
166.7 mm
Terminal Connector
2 connector M12, 8 and 5 pin
Length of sensor
65.3 mm
Clamping force in accordance with ISO14119 Fzh
10,000 N
Clamping force, maximum Fmax
13,000 N
Tightening torque of the screw
8 Nm
Lateral force at bolt return, maximal (against locked door)
300 N
Note (Lateral force at bolt return)
Does not apply to emergency exit, Bowden cable and manual release
Minimum distance devices
30 mm
Note (Mechanical lifetime)
Which have a lateral force Ftrans = 100 N: 100.000 operations
Coding level according to ISO 14119
Low
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
Mechanical life, minimum
1,000,000 Operations
Time to readiness, maximum
1,500 ms
Interlocking principle
bistable
Number of safety contacts
2
Number of diagnostic signals
2
Reaction time, maximum
100 ms
Integral System Diagnostics, status
Yes
Safety functions
Yes
Short-circuit recognition
Yes
Short circuit detection
Yes
Active principle
Magnetic field, RFID
general information
Universal coding
Enclosure material
Light alloy die-casting
Emergency exit
Yes
Electronic manual release
Yes
Gross weight
774 g
Guard locking monitored
Yes
