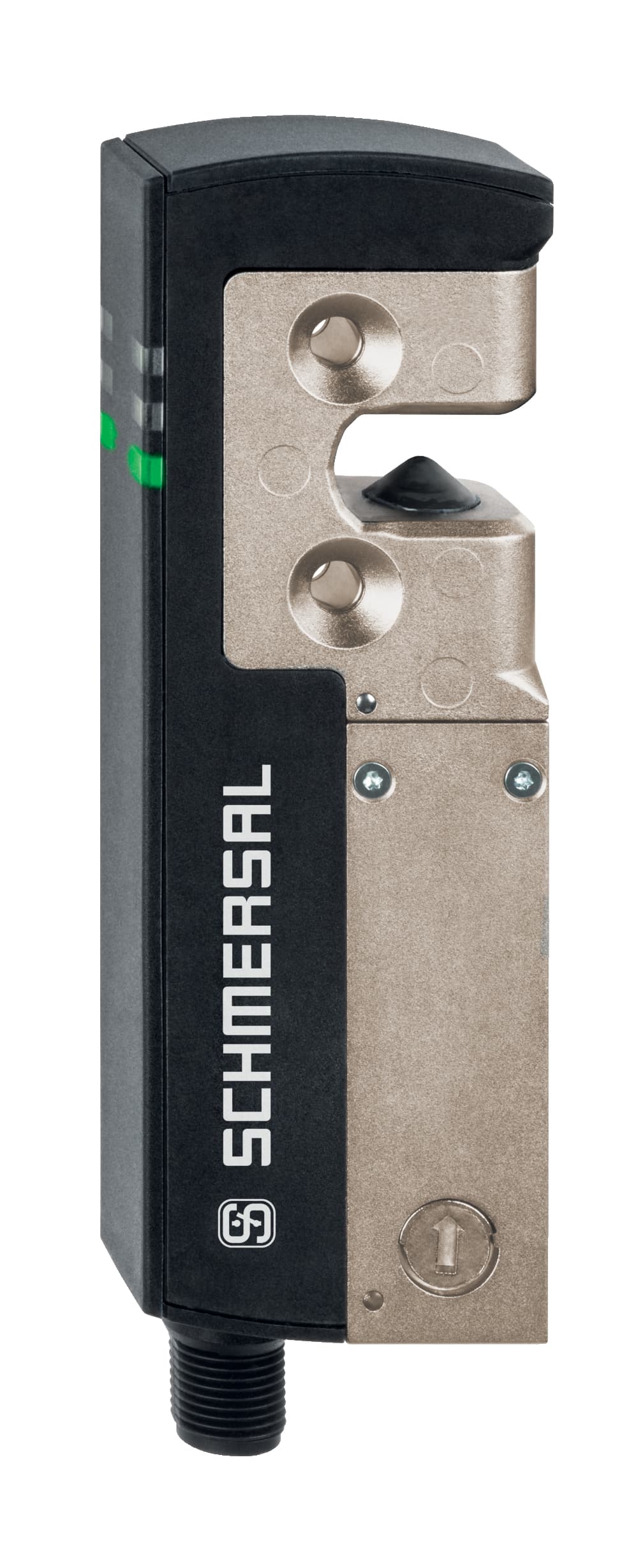

AZM40B-I1-ST-1P2P Schmersal Safety Switches

AZM40B-I1-ST-1P2P on Applied Automation
Schmersal

Part#:AZM40B-I1-ST-1P2P

Alt. Part#:103034194

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

AZM40B-I1-ST-1P2P Schmersal - Solenoid interlocks; Compact, flat design; 119,5 mm x 40 mm x 20 mm; High holding force 2000; Latching force 40 N; RFID-technology for needs-based protection against tampering; Individually coded version with coding level "High" according to ISO 14119; On

Product Details

  • Current leakage Ir
    0.5 mA
  • Voltage, Utilisation category DC13
    24 VDC
  • Voltage, Utilisation category DC12
    24 VDC
  • Current, Utilisation category DC13
    0.05 A
  • Current, Utilisation category DC12
    0.05 A
  • Rated operating current (safety outputs)
    250 mA
  • Voltage drop Ud, maximum
    2 V
  • Versions
    short-circuit proof, p-type
  • Classification ZVEI CB24I, Source
    C2
  • Current consumption solenoid at switching moment, peak
    600 mA / 100ms
  • Current consumption at 24V
    5 mA
  • Classification ZVEI CB24I, Sink
    C1, C2
  • Switching frequency, maximum
    0.3 Hz
  • Switching thresholds
    −3 V … 5 V (Low), 15 V … 30 V (High)
  • Note
    Cable length and cable section alter the voltage drop depending on the output current
  • Rated operating voltage
    24 VDC - 15 % / + 10 % (stabilised PELV)
  • Required rated short-circuit current to EN 60947-5-1
    100 A
  • Operating current
    1,200 mA
  • No-load supply current I0
    100 mA
  • Restistance to shock
    30 g / 11 ms
  • Degree of pollution to VDE 0100
    3
  • Protection rating
    III
  • Rated impulse withstand voltage Uimp
    0.8 kV
  • Rated insulation voltage Ui
    32 VDC
  • Overvoltage category
    III
  • Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Storage and transport temperature, maximum
    +85 °C
  • Storage and transport temperature, minimum
    -40 °C
  • Degree of protection
    IP66 to EN 60529, IP67 to EN 60529
  • Ambient temperature, maximum
    +55 °C
  • Height of sensor
    20 mm
  • Ambient temperature, minimum
    +0 °C
  • Length of sensor
    119.5 mm
  • Ensured switch distance OFF Sar
    8 mm
  • Width of sensor
    40 mm
  • Type of the fixing screws
    2 x M5 (Counter sunk screw)
  • Ensured switch distance ON Sao
    1 mm
  • Latching force
    40 N
  • Terminal Connector
    Connector M12, 8-pole, A-coded
  • Actuating speed, maximum
    0.5 m/s
  • Number of safety contacts
    2
  • Clamping force, maximum Fmax
    2,600 N
  • Clamping force in accordance with ISO14119 Fzh
    2,000 N
  • Mechanical life, minimum
    200,000 Operations
  • Interlocking principle
    bistable
  • Safety functions
    Yes
  • Integral System Diagnostics, status
    Yes
  • Short circuit detection
    Yes
  • Manual release
    Yes
  • Short-circuit recognition
    Yes
  • Series-wiring
    Yes
  • Actuator monitored
    Yes
  • Latching
    Yes
  • Response time safety outputs in case of switch-off by safety inputs, maximum
    1.5 ms
  • Duration of risk, maximum
    200 ms
  • Active principle
    RFID
  • Standards
    IEC 61508, EN 60947-5-3, EN ISO 13849-1
  • Coding level according to ISO 14119
    High
  • Reaction time, maximum
    100 ms
  • Enclosure material
    Glass-fibre, reinforced thermoplastic and light-alloy diecast
  • Gross weight
    300.8 g
  • general information
    Individual coding
  • Time to readiness, maximum
    4,000 ms

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZM40B-I1-ST-1P2P on Applied Automation is $816.00. Order now.


About the product

AZM40B-I1-ST-1P2P Schmersal - Solenoid interlocks; Compact, flat design; 119,5 mm x 40 mm x 20 mm; High holding force 2000; Latching force 40 N; RFID-technology for needs-based protection against tampering; Individually coded version with coding level "High" according to ISO 14119; On
