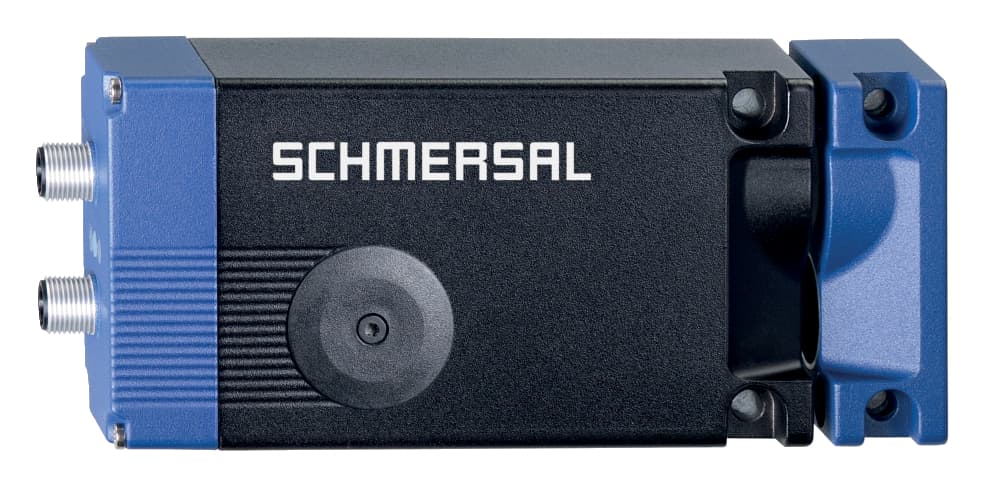

AZM400Z-ST2-I2-2P2P-E Schmersal Safety Accessories

Product Details

• Open / close cycle (Motor), minimum
  3
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Switching frequency, approx.
  0.3 Hz
• Current consumption at 24V, maximum
  15 mA
• No-load supply current I0
  100 mA
• Rated operating voltage
  24 VDC
• Current consumption, maximum
  600 mA
• Operating current
  50 mA
• Current consumption at 24V, minimum
  10 mA
• Operating Current
  100 mA
• Rated insulation voltage Ui
  32 VDC
• Rated impulse withstand voltage Uimp
  0.8 kV
• Protection rating
  III
• Storage and transport temperature, maximum
  +85 °C
• Degree of pollution to VDE 0100
  3
• Overvoltage category
  III
• Restistance to shock
  30 g / 11 ms
• Ambient temperature, maximum
  +55 °C
• Degree of protection
  IP66 to EN 60529, IP67 to EN 60529
• Storage and transport temperature, minimum
  -40 °C
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Ambient temperature, minimum
-20 °C
Length of sensor
46.7 mm
Minimum distance devices
30 mm
Lateral force at bolt return, maximal (against locked door)
300 N
Note (Lateral force at bolt return)
Does not apply to emergency exit, Bowden cable and manual release
Width of sensor
77.8 mm
Note (Mechanical lifetime)
Which have a lateral force Ftrans = 100 N: 100.000 operations
Clamping force, maximum Fmax
13,000 N
Height of sensor
166.7 mm
Terminal Connector
2 connector M12, 8 and 5 pin
Tightening torque of the screw
8 Nm
Mechanical life, minimum
1,000,000 Operations
Clamping force in accordance with ISO14119 Fzh
10,000 N
Interlocking principle
bistable
Number of safety contacts
2
Integral System Diagnostics, status
Yes
Electronic manual release
Yes
Number of diagnostic signals
2
Manual release
Yes
Active principle
Magnetic field, RFID
Short-circuit recognition
Yes
Short circuit detection
Yes
Safety functions
Yes
Reaction time, maximum
100 ms
Gross weight
692 g
Note
The diagnostic output are not safety relevant outputs!
Versions
short-circuit proof, p-type
Current, Utilisation category DC13
0.05 A
Voltage, Utilisation category DC13
24 VDC
Current, Utilisation category DC12
0.05 A
Voltage, Utilisation category DC12
24 VDC
Current leakage Ir
1.5 mA
Rated operating current (safety outputs)
250 mA
Voltage drop Ud, maximum
2 V
Classification ZVEI CB24I, Sink
C1, C2
Classification ZVEI CB24I, Source
C2
Allowable discrepancy time (input), maximum
10 s
Switching thresholds of the control inputs
−3 V … 5 V (Low), 15 V … 30 V (High)
Minimal average cycle time (with continuous operation)
20 s
Guard locking monitored
Yes
Enclosure material
Light alloy die-casting
Time to readiness, maximum
1,500 ms
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
Coding level according to ISO 14119
High
general information
Individual coding, multiple teaching

Related documents AZM400Z-ST2-I2-2P2P-E Specs
