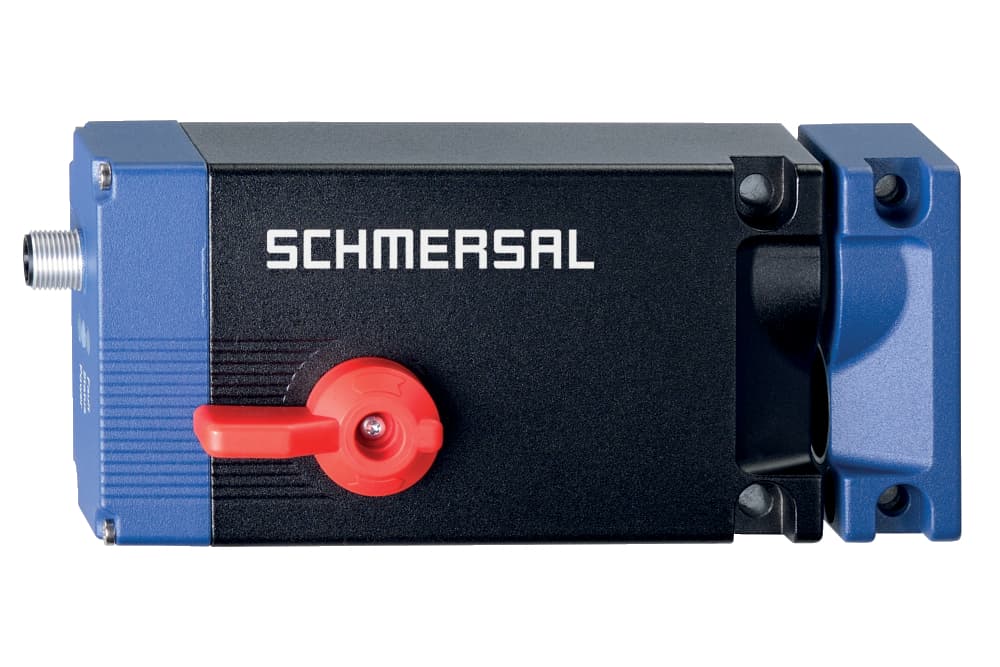

AZM400Z-ST-I2-1P2P-T Schmersal Safety Accessories

Product Details

• Versions
  short-circuit proof, p-type
• Current, Utilisation category DC12
  0.05 A
• Voltage drop Ud, maximum
  2 V
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Voltage, Utilisation category DC12
  24 VDC
• Current leakage Ir
  1.5 mA
• Rated operating current (safety outputs)
  250 mA
• Allowable discrepancy time (input), maximum
  10 s
• Classification ZVEI CB24I, Source
  C2
• Classification ZVEI CB24I, Sink
  C1, C2
• Switching thresholds of the control inputs
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Open / close cycle (Motor), minimum
  3
• Minimal average cycle time (with continuous operation)
  20 s
• Required rated short-circuit current to EN 60947-5-1
  100 A
• No-load supply current I0
  100 mA
• Operating current
  50 mA
• Switching frequency, approx.
  0.3 Hz
• Current consumption at 24V, minimum
  10 mA
• Current consumption, maximum
  600 mA
Rated operating voltage
24 VDC
Current consumption at 24V, maximum
15 mA
Rated impulse withstand voltage Uimp
0.8 kV
Operating Current
100 mA
Overvoltage category
III
Degree of pollution to VDE 0100
3
Protection rating
III
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Ambient temperature, minimum
-20 °C
Ambient temperature, maximum
+55 °C
Storage and transport temperature, maximum
+85 °C
Storage and transport temperature, minimum
-40 °C
Length of sensor
65.3 mm
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Height of sensor
166.7 mm
Width of sensor
77.8 mm
Terminal Connector
Connector M12, 8-pole
Lateral force at bolt return, maximal (against locked door)
300 N
Note (Lateral force at bolt return)
Does not apply to emergency exit, Bowden cable and manual release
Tightening torque of the screw
8 Nm
Clamping force, maximum Fmax
13,000 N
Safety functions
Yes
Minimum distance devices
30 mm
Note (Mechanical lifetime)
Which have a lateral force Ftrans = 100 N: 100.000 operations
Number of diagnostic signals
1
Mechanical life, minimum
1,000,000 Operations
Clamping force in accordance with ISO14119 Fzh
10,000 N
Number of safety contacts
2
Emergency exit
Yes
Interlocking principle
bistable
Integral System Diagnostics, status
Yes
Short circuit detection
Yes
Short-circuit recognition
Yes
Coding level according to ISO 14119
High
general information
Individual coding, multiple teaching
Gross weight
846 g
Active principle
Magnetic field, RFID
Enclosure material
Light alloy die-casting
Reaction time, maximum
100 ms
Guard locking monitored
Yes
Time to readiness, maximum
1,500 ms
Standards
IEC 60947-5-1, EN ISO 13849-1, IEC 61508
