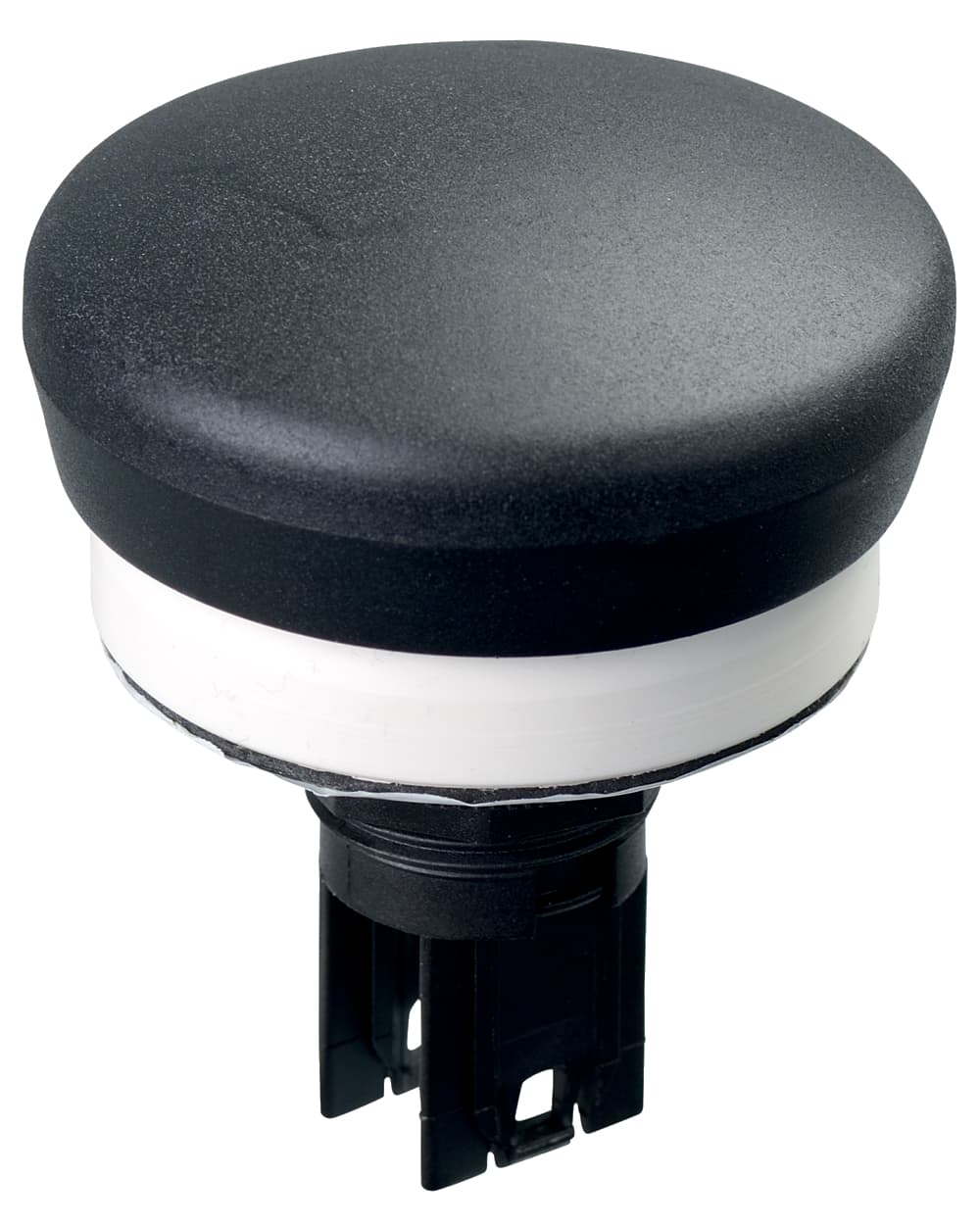

ADP55.3SW Schmersal Safety Accessories

Product Details

• Restistance to shock
  50 g
• Switching frequency
  1,200 /h
• Ambient temperature, minimum
  -25 °C
• Ambient temperature, maximum
  +60 °C
• Degree of protection
  IP65
• Thickness of the front panel, maximum
  6 mm
• Thickness, of the front panel, minimum
  1 mm
• Spacing
  70 x 70 mm
• Diameter of the front ring
  49 mm
• Diameter hole, with tolerance indication
  22,3 + 0,4 mm
• Diameter total
  55 mm
• Diameter hole
  22.3 mm
• diameters for the actuating heads
  55 mm
• Height
  36 mm
• Tightening torque of the screw
  1 Nm
• Mounting
  DESIGN_MOUNTINGZENTRALMUTTER
• Actuating force, approx.
  10.5 N
• Actuating stroke
  4 mm
• Unlocking
  without
• Colour of the front ring
  Black
Standards
EN 60947-5-1, IEC/EN 60947-1
Fully insulated
Yes
Material of the operators
Plastic
Material of the front ring
Plastic
Gross weight
30 g
Design
Round
Colour of the operating element
Black
Probing possible
Yes
Mounting flange
No
Sealing type
Form seals
Versions
Latched pushbutton - Front plate mounting
