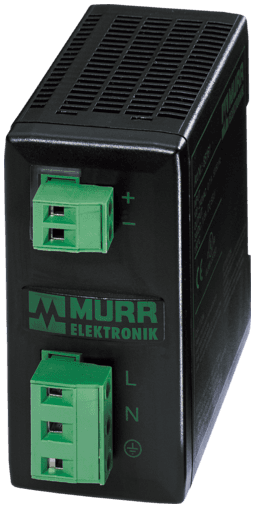

85371 Murr Elektronik AC/DC Power Supplies

Product Details

• Weight
  270 g
• Series
  Transformators/Power Supplies
• Product article number of manufacturer
  85371
• Frequency
  50...60 Hz
• Input current
  0.3 A (115 V AC); 0.2 A (230 V AC)
• Input voltage
  95...265 V AC; 110...300 V DC
• Spikes
  max. 120 mV ss/pp
• Mains failure bridging time
  min. 30 ms (115 V AC); min. 180 ms (230 V AC)
• Unit protection
  short-circuit and overload protected
• Parallel usage/serial usage
  no/yes (max. 2 units)
• Primary fusing external
  max. 10 A
• Inrush current after 1 ms
  max. 15 A
• Ripple
  max. 20 mV eff/rms
• Dimensions H×W×D
  76×38×87.5 mm
• Efficiency
  80%
• Relative humidity
  5...95%, no condensation
• LED display
  LED (green) for output voltage
• Standards
  IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
• Output voltage
  5 V DC (SELV), ±1%; 4.2...6 V adjustable
• Mounting method
  DIN-rail mountable TH35 (EN 60715)
Temperature range
0...+40 °C, ...+50 °C derating (storage temperature -20...+85 °C)
Output current
3 A (+40 °C); 2.5 A (+55 °C)
