56922 Murr Elektronik I/O Systems
Part#:56922
Manufacturer:Murr Elektronik
Category:I/O Systems
Product Lifecycle:Active
Product description

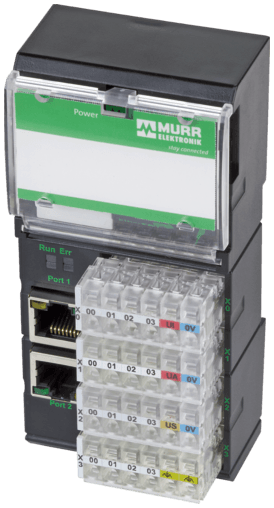

56922 Murrelektronik - IMPACT20 PROFINET IO, DIGITAL OUTPUT MODULE, 16 digital outputs
Product Details
- Weight 190 g
- Series Field Bus System
- Monitoring - no voltage yes
- Diagnostic via BUS per module and channel
- Short-circuit and overload yes
- Communication status via LED
- Monitoring - under voltage yes
- Product article number of manufacturer 56922
- Diagnostic via LED per module and channel
- Addressing DCP
- I/O ports 18× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
- Temperature range 0...+55 °C (storage temperature -20...+70 °C)
- Sensor-system/actuator supply 6× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
- Fieldbus Ethernet 10/100 Mbit/s; 2× RJ45 (female)
- Operating voltage 24 V DC (EN 61131-2)
- Dimensions H×W×D 117×56×47 mm
- Switching current per output max. 0.5 A (short-circuit and overload protected)
- Total current max. 8 A
- Protection IP20
- Mounting method DIN-rail mountable (EN 60715)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
