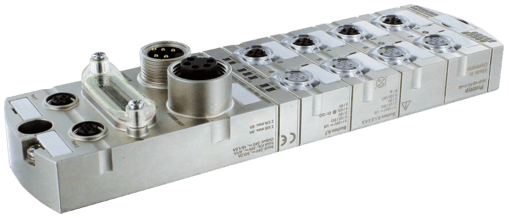

55543 Murr Elektronik I/O Systems

Product Details

• Weight
  1057 g
• Series
  Field Bus System
• Cable break
  per IO-Link Master
• Short-circuit and overload
  yes
• Monitoring - no voltage
  yes
• Monitoring - under voltage
  yes
• Actuator warning
  per channel via LED and BUS
• Communication status
  via LED
• CIP Sync
  yes
• Diagnostic via BUS
  per module and channel
• Diagnostic via LED
  per module and channel
• Composite Test Revision
  CT14
• Product article number of manufacturer
  55543
• Addressing
  DHCP, BOOTP or IP address by DIP switch
• QC (Quick Connect)
  max. 360 ms
• DLR (Device Level Ring)
  yes
• Multiple connections
  yes
• I/O ports
  M12, 5-pole, A-coded
• Sensor-system/actuator supply
  7/8", 4-pole, 2× max. 9 A
• Fieldbus
  Ethernet 10/100 Mbit/s; M12, D-coded
PIN 2
Input/Output (port X0...X7); U-Actuator IO-Link Class B (port X6, X7)
Operating modes
COM1; COM2; COM3 (automatic)
Transfer parameters
32 Byte (In) 32 Byte (Out) per IO-Link port
IO-Link
2× Master
Port Class
Class B (not galvanically separated)
PIN 4
Input/Output (port X0...X7); IO-Link Master (port X6, X7)
Specification
IO-Link Master V1.1.2
Type
for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
Actuator supply UA
24 V DC (EN 61131-2), max. 9 A
Sensor supply US
24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Protection
IP67
Dimensions H×W×D
42×63×225 mm
Switching current per output
max. 1.6 A (short-circuit and overload protected)
Temperature range
-25...+55 °C (storage temperature -40...+85 °C)
Lamp load
10 W
Mounting method
2-hole screw mounting
