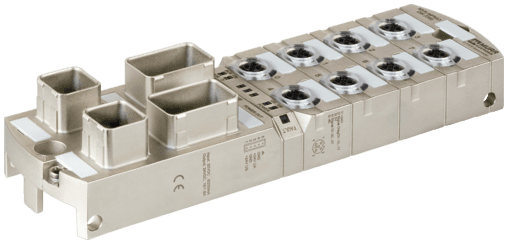

55289 Murr Elektronik I/O Systems

Product Details

• Weight
  1000 g
• Series
  Field Bus System
• Short-circuit and overload
  yes
• Monitoring - under voltage
  yes
• Cable break
  per port
• Monitoring - no voltage
  yes
• Diagnostic via LED
  per module and channel
• Type
  for 3-wire sensors or mechanical switches, PNP
• Actuator warning
  per channel via LED and BUS
• Diagnostic via BUS
  per module and channel
• Communication status
  via LED
• Addressing
  DCP
• Specification
  V2.2, Conformance Class B
• I/O ports
  M12, 5-pole, A-coded
• Product article number of manufacturer
  55289
• Fieldbus
  Ethernet 10/100 Mbit/s; M12, D-coded
• PIN 2
  Input/Output/Diagnostic
• Actuator supply UA
  24 V DC (EN 61131-2), max. 9 A
• Sensor-system/actuator supply
  7/8", 5-pole, 2× max. 9 A
• PIN 4
  Input/Output
Lamp load
10 W
Operating voltage
24 V DC (EN 61131-2)
Sensor supply US
24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Mounting method
2-hole screw mounting
Switching current per output
max. 1.6 A (short-circuit and overload protected)
Dimensions H×W×D
42×63×225 mm
Protection
IP67
Temperature range
-25...+55 °C (storage temperature -25...+70 °C)
