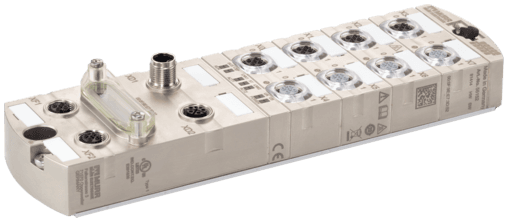

55161 Murr Elektronik I/O Systems

Product Details

• Weight
  992 g
• Series
  Field Bus System
• Short-circuit and overload
  yes
• Cable break
  per port
• Monitoring - under voltage
  yes
• Monitoring - no voltage
  yes
• Diagnostic via BUS
  per module and channel
• Actuator warning
  per channel via LED and BUS
• Diagnostic via LED
  per module and channel
• Communication status
  via LED
• Shared Device
  yes, for 2 controls
• Product article number of manufacturer
  55161
• FSU (Fast-Start-Up)
  max. 500 ms
• PROFINET Netload Class
  III
• MRP
  yes
• Addressing
  DCP
• I/O ports
  M12, 5-pole, A-coded
• PIN 2
  Input/Output (port X0...X7); U-Actuator IO-Link Class B (port X6, X7)
• IO-Link
  2× Master
• Fieldbus
  Ethernet 10/100 Mbit/s; M12, D-coded
Sensor-system/actuator supply
M12 Power, 4-pole, L-coded, 2× max. 16 A
PIN 4
Input/Output (port X0...X7); IO-Link Master (port X6, X7)
Sensor supply US
24 V DC (EN 61131-2), max. 200 mA (M12 female)/max. 1 A (IO-Link female), short-circuit and overload protected
Transfer parameters
32 Byte (In) 32 Byte (Out) per IO-Link port
Operating modes
COM1; COM2; COM3 (automatic)
Specification
IO-Link Master V1.1.2
Port Class
Class B (not galvanically separated)
Type
for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
Dimensions H×W×D
37×63×225 mm
Lamp load
10 W
Actuator supply UA
24 V DC (EN 61131-2), max. 9 A
Mounting method
2-hole screw mounting
Switching current per output
max. 1.6 A (short-circuit and overload protected)
Temperature range
-25...+60 °C (storage temperature -25...+70 °C)
Protection
IP67
