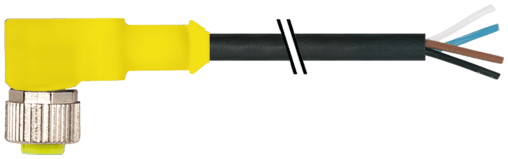

7030-12341-6340750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  261 g
• Series
  Connector Systems
• Product article number of manufacturer
  7030-12341-6340750
• Cable length
  7,5 m
• Torsion speed
  35 cycles/min
• Torsion stress
  ±180°/m
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Acceleration (C-track)
  max. 10 m/s²
• Travel speed (C-track)
  max. 3 m/s
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Bend radius (fixed)
  5× outer Ø
• Test voltage
  2500 V AC
• Temperature range (fixed)
  -40...+80 °C, (+90 °C at max. 10 000 operating hours)
• Nominal voltage
  300 V AC
• Current load capacity
  to DIN VDE 0298-4
• Bend radius (moving)
  10× outer Ø
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Shore hardness (jacket)
  90 ±5 A
Color (jacket)
black
Outer-Ø (jacket)
4.5 mm ±5%
Shield
no
Material (jacket)
PUR
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Stranding combination
4 wires twisted
Color/numbering of wires
br, bk, bl, wh
Wire-Ø incl. isolation
1.25 mm ±5%
Shore hardness (wire isolation)
70 ±5 D
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material (wire isolation)
PP
AWG
similar to AWG 22
Diameter (core)
4× 0.34 mm²
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Single wire Ø (core)
0.1 mm
Resistor (core)
max. 57 Ω/km (20 °C)
Material (wire)
Cu wire, bare
Cable weight [g/m]
36,3 g
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Temperature range
-25...+85 °C, depending on cable quality
Cable identification
634
Cable Type
3 (PUR)
Stripping length (jacket)
20 mm
Pollution Degree
3
Compression gland
M12 (SW13)
Standards
DIN EN 61076-2-101 (M12)
Locking material
Zinc die casting, matte nickel plated
suitable for corrugated tube (internal Ø)
10 mm
Rated surge voltage
2.5 kV
Material
PUR
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Form
12341
Operating current per contact
max. 4 A
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Coding
A-coded
Material group
IEC 60664-1, category I
Operating voltage
max. 250 V AC/DC
Operating voltage (only UL listed)
max. 30 V AC/DC
